Sutton D310 Carbide Drill Bit - Imperial - 3xD - R15 NH - VHM - TiCN - Sutton Tools

Description

Descriptions

Rigid twist drill with slow spiral 15 degree flutes
Suitable for harder steel, tool steel and cast iron

Specifications

Designation: NH
Material: VHM
Finish: TiCN
Maximum Cut Depth: 3XD
Shank Form: HA
Helix Angle: R15
X:als
Point Tolerance: m7
Shank Tolerance: h6
Point Type: 135° 4 Facet Form C
Cutting Edges: ul
Standard: Sutton

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Stainless Steel – Austenitic- 180 HB
Optimal for Stainless Steel – Duplex- 250 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB

Specifications

AIMS SKU A0007134

Brand Sutton Tools

Model Number D3100159

Barcode Number 9311963195209

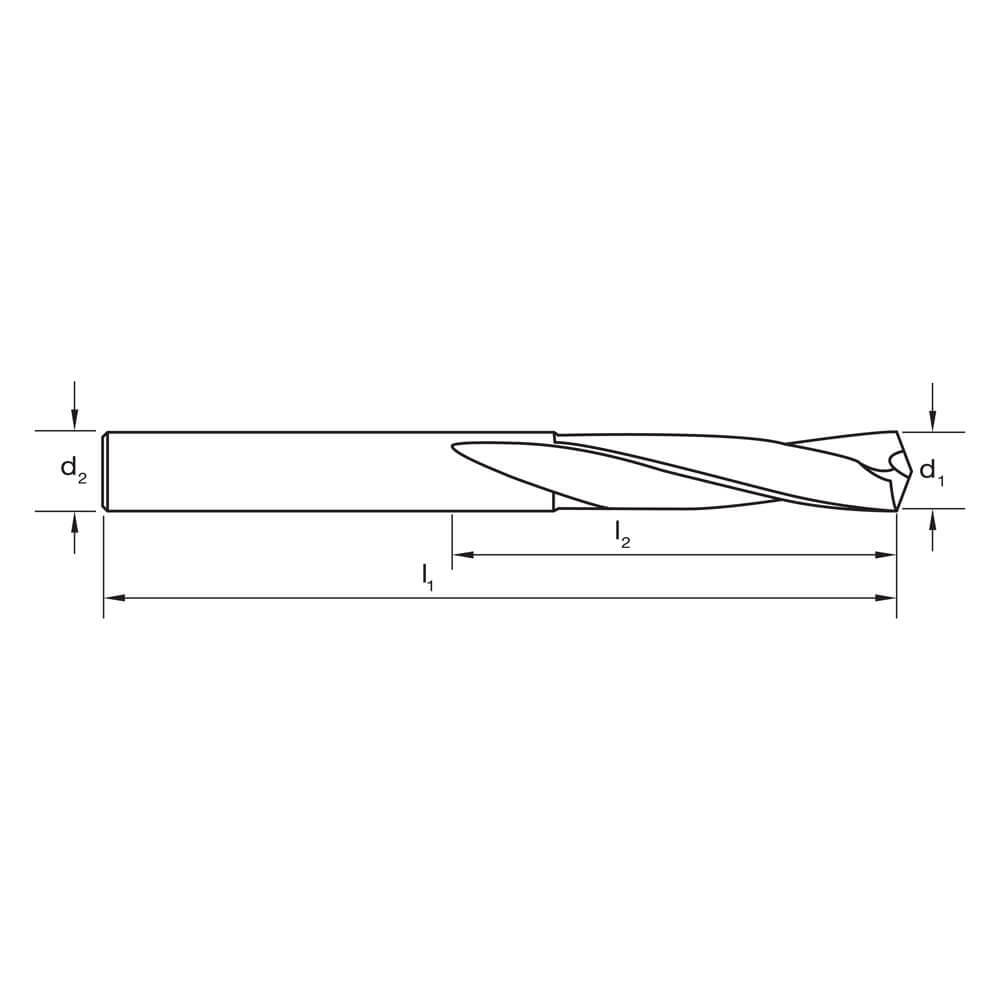

Thread Diameter (inch) 1/16

Overall Length (inch) 1 5/8

Shank (inch) 1/16

Flute Length (inch) 5/8

Group Code D310
Type Carbide Drill Bit
System of Measurement Imperial
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Titanium Carbonitride (TiCN)
Helix Angle R15
Shank Form HA
Point Form 135 4 Facet Form C
Maximum Cut Depth 3XD
Shank Tolerance h6
Point Tolerance m7
