Specifications
- AIMS SKU Sutton-D334
- Brand Sutton Tools
- Model Number D334
- Type Carbide Drill Bit
- System of Measurement DIN 6537,Metric
- Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
- Finish Aluminium Chromium Nitride (AlCrN)
- Helix Angle R30x
- Shank Form HE
- Point Angle 140
- Point Form Form C
- Maximum Cut Depth 5xD:
- Shank Tolerance h6:
- Point Tolerance m7
- Group Code D334
- Type Carbide Drill Bit
- System of Measurement DIN 6537,Metric
- Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
- Finish Aluminium Chromium Nitride (AlCrN)
- Helix Angle R30x
- Shank Form HE
- Point Angle 140
- Point Form Form C
- Maximum Cut Depth 5xD:
- Shank Tolerance h6:
- Point Tolerance m7
SKU: Sutton-D334

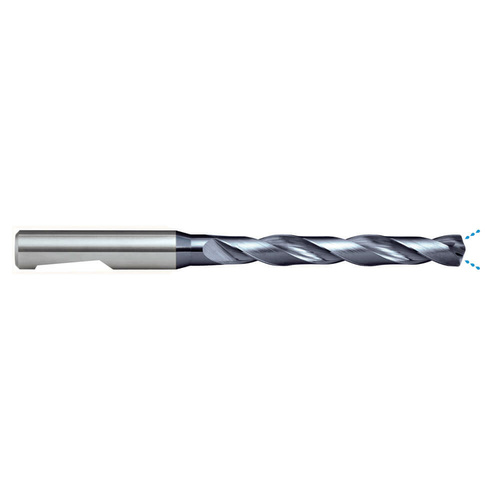

Sutton D334 Carbide Drill Bit - 5xd - R30 N IK - VHM - AlCrN
Sutton Carbide Drills – 5xD – R30 N – IK
$178.65
