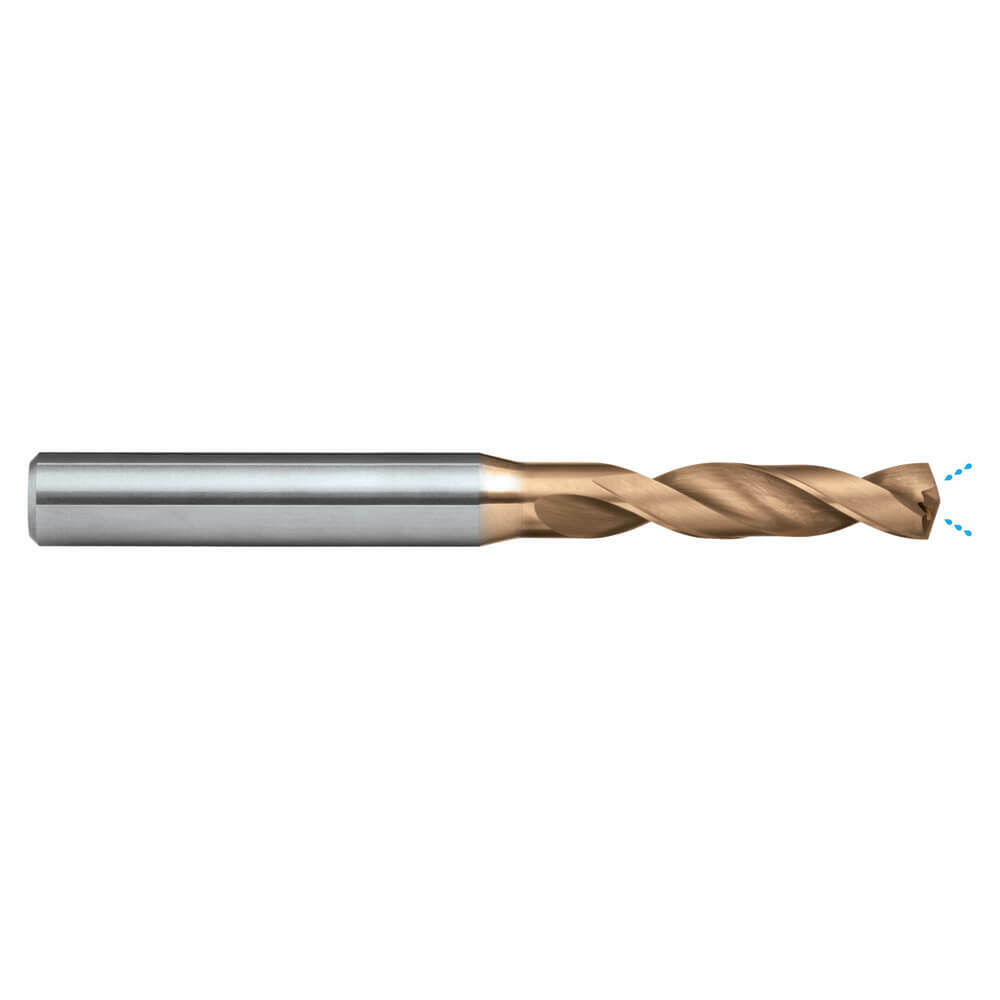

Sutton D3560300 3mm Carbide Drill Bit - 3xD - R30 VA IK - VHM - Helica

Description

Descriptions

3xD Drill R30 VA Black Magic
Excellent solution for stainless steels & difficult super alloy type materials

Features

Optimized geometry ensures no work hardening and high productivity
HELICA for outstanding oxidation resistance and hot hardness

Specifications

Designation: VA
Material: VHM
Finish: Helica
Maximum Cut Depth: 3XD
Shank Form: HA
Helix Angle: R30 - IK
X: ru
Point Tolerance: m7
Shank Tolerance: h6
Point Type: 140° Form C
Cutting Edges: ul
Standard: DIN 6537

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB

Specifications

AIMS SKU A0007857

Brand Sutton Tools

Model Number D3560300

Barcode Number 9311963570587

Thread Diameter (mm) 3

Overall Length (mm) 62

Shank (mm) 6

Flute Length (mm) 20

Group Code D356
Type Carbide Drill Bit
System of Measurement DIN 6537,Metric
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Helica
Helix Angle R30 - IK
Shank Form HA
Point Form 140 Form C
Maximum Cut Depth 3XD
Shank Tolerance h6
Point Tolerance m7
