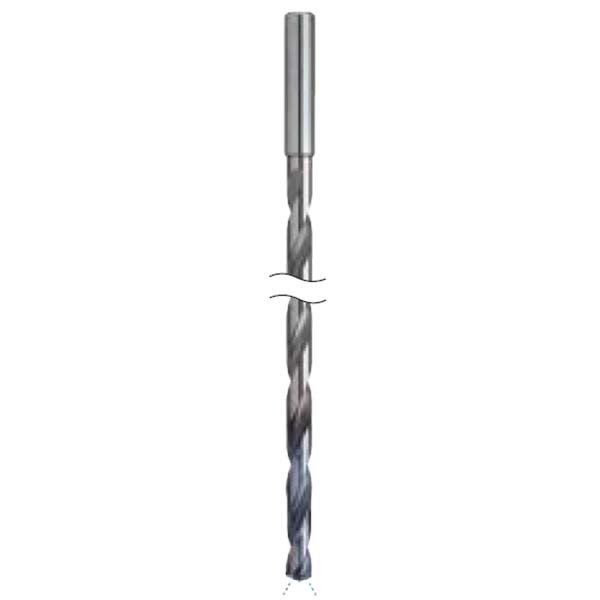

Sutton Tools Carbide Bit - 12xD - R30 - IK

• Suitable for materials up to 1200N/mm2.
• A strong core with internal coolant supply.
• Micro geometry and surface conditioning for optimal chip control.
• AlCrN for maximum tool life.

Specifications

• Code: D371
• Product Group: A0210
• Material: VHM
• Surface Finish: AlCrN Tip
• Application: Up to 1200N/mm2

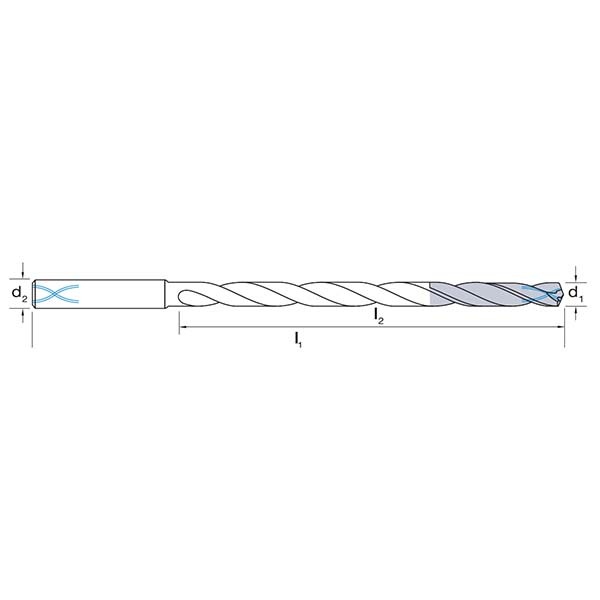

• Geometry: R30 - IK
• Point Type: 135° Form C
• Point Type: 135° Form C
• Shank Form (DIN 6535): HA

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-270HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-275HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-300HB
• Optimal for Steel - High alloy, cast & tool-200HB
• Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic-180HB
• Optimal for Cast Iron, Nodular (GGG) - Ferritic-160HB
