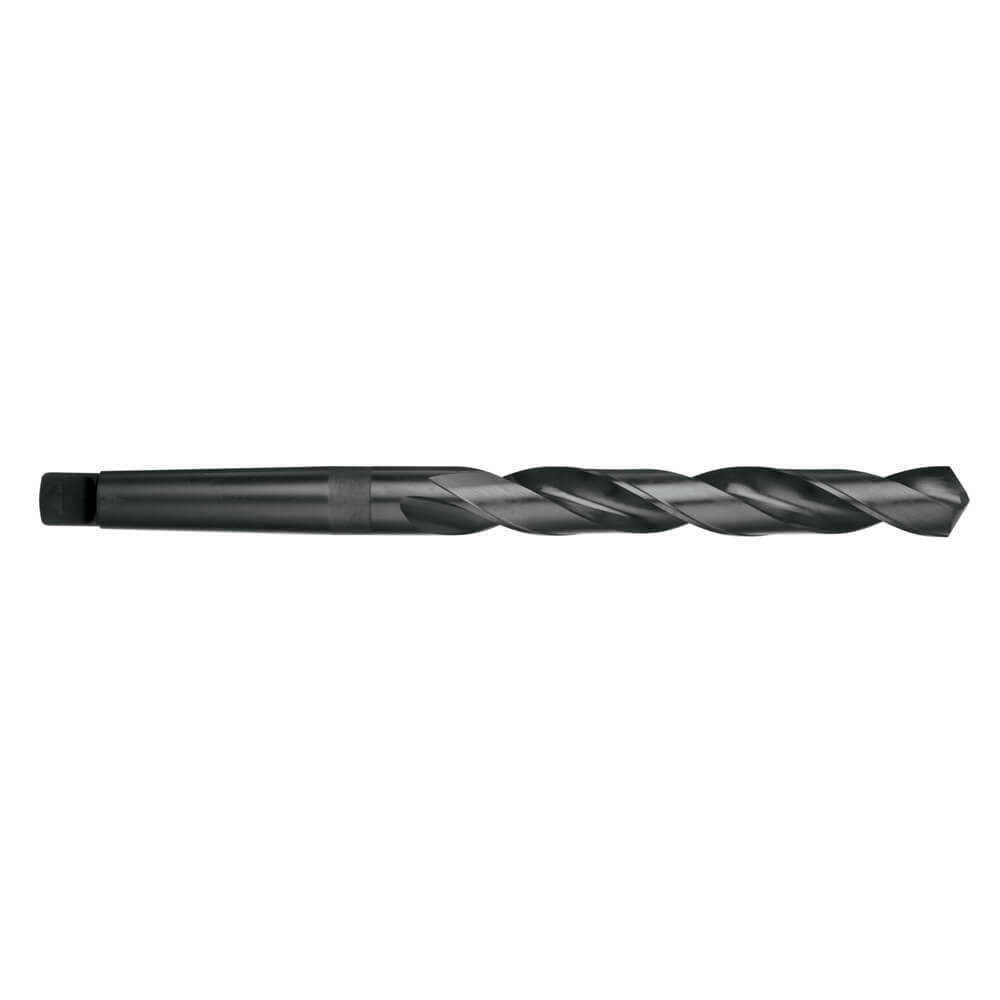

Sutton D1402600 26mm #3 Morse Taper Shank Drill Bit -Series - HSS

Description

Description

General purpose drill

Features

Morse Taper Shank Drill Long Series
Suitable for materials up to 900N/mm2

Specifications

Designation: N
Material: High Speed Steel
Finish: Blue
Maximum Cut Depth: 8XD
Shank Form: MTS
Helix Angle: R30
X: als
Point Tolerance: h8

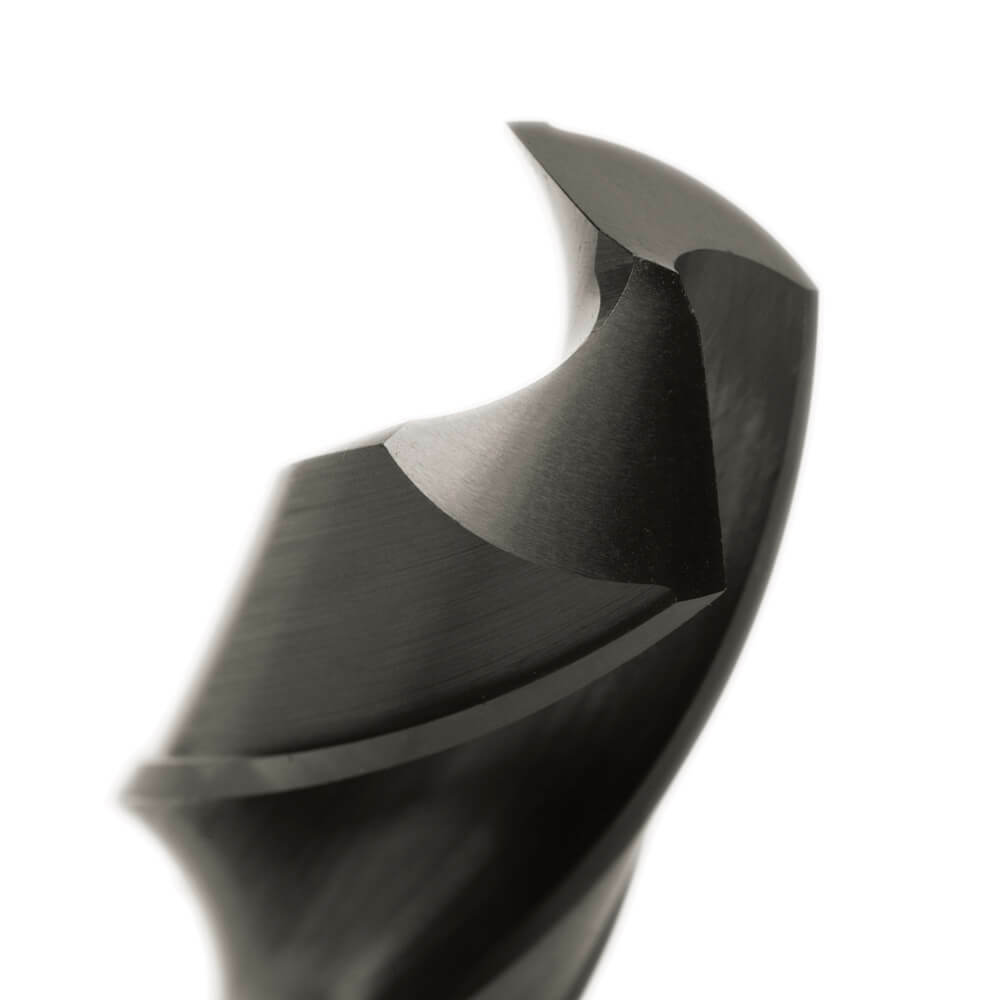

Point Angle: 118°
Point Form: Form A
Cutting Edges: ul
Standard: DIN 341

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB

Specifications

AIMS SKU A0004360

Brand Sutton Tools

Model Number D1402600

Barcode Number 9311963542959

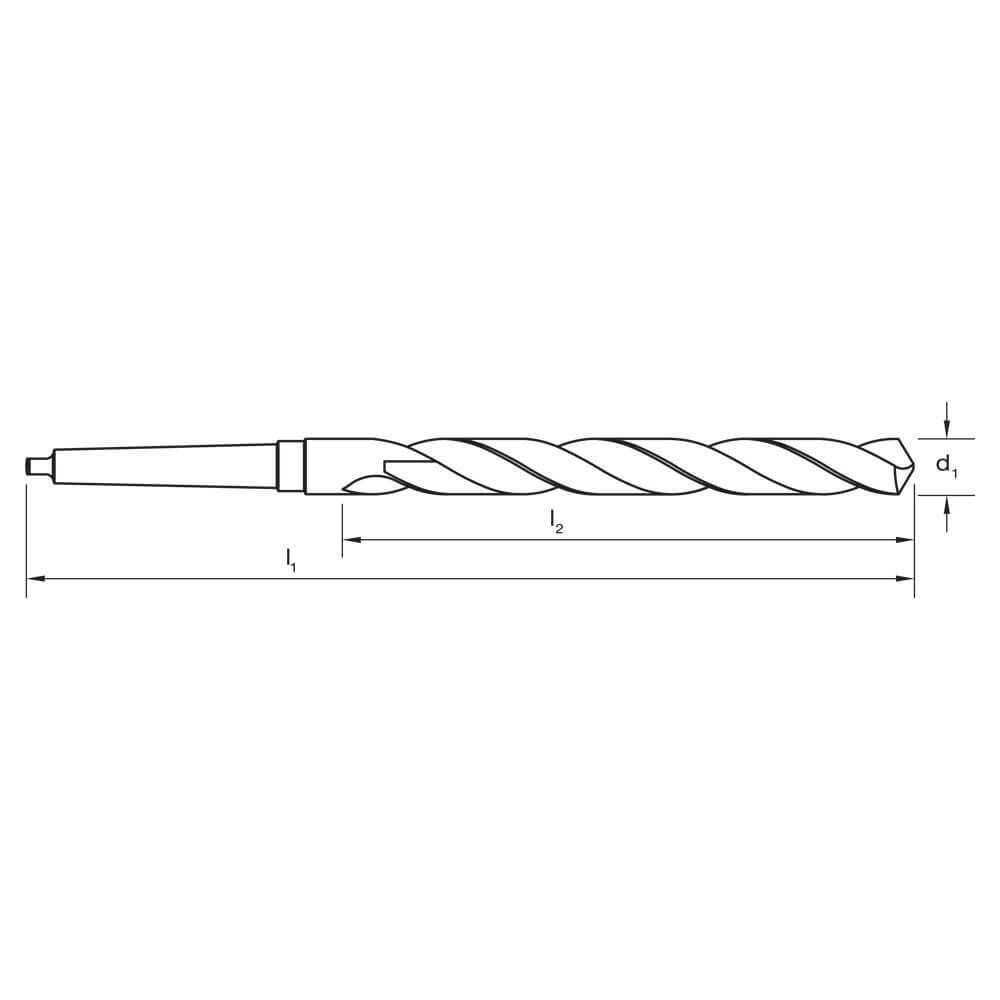

Morse Taper #3

Thread Diameter (mm) 26

Overall Length (mm) 335

Flute Length (mm) 214

Group Code D140
Type Morse Taper Shank
System of Measurement DIN 341,Metric
Material High Speed Steel (HSS)
Finish Steam Oxide (Blue)
Helix Angle R30
Point Form Form A
Point Tolerance h8
Point Angle 118
Maximum Cut Depth 8XD
