Description

Description

  • Designed to increase the drilling capacity of drill chucks and for slow speed (350 RPM or less), large scale boring

Dimensions

  • Diameter (in): 17/32, 9/16, 19/32, 5/8, 21/32, 11/16, 23/32, ¾, 25/32, 13/16, 27/32, 7/8, 29/32, 15/16, 31/32, 1
  • Pack Quantity: 16

Features

  • Common Length 6" (152mm) overall length with a 3-3/8" (86mm) flute length
  • Reduced shanks suit 13mm drill chucks
  • 118° standard point for general purpose applications
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Blue surface finish for ferrous applications
  • The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Blue
  • Maximum Cut Depth: 5XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Cutting Edges: ul
  • Standard: Sutton

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB

Specifications

  • AIMS SKU A0006667
  • Brand Sutton Tools
  • Model Number D188RS16
  • Barcode Number 9311963401188
  • Type Reduced Shank Drill Set
  • System of Measurement Imperial
  • Material High Speed Steel (HSS)
  • Finish Steam Oxide (Blue)
  • Helix Angle R30
  • Pieces in a Set 16
  • Shank Form A
  • Point Angle 118
  • Point Form Form A
  • Maximum Cut Depth 5XD
  • Point Tolerance h8
SKU: A0006667

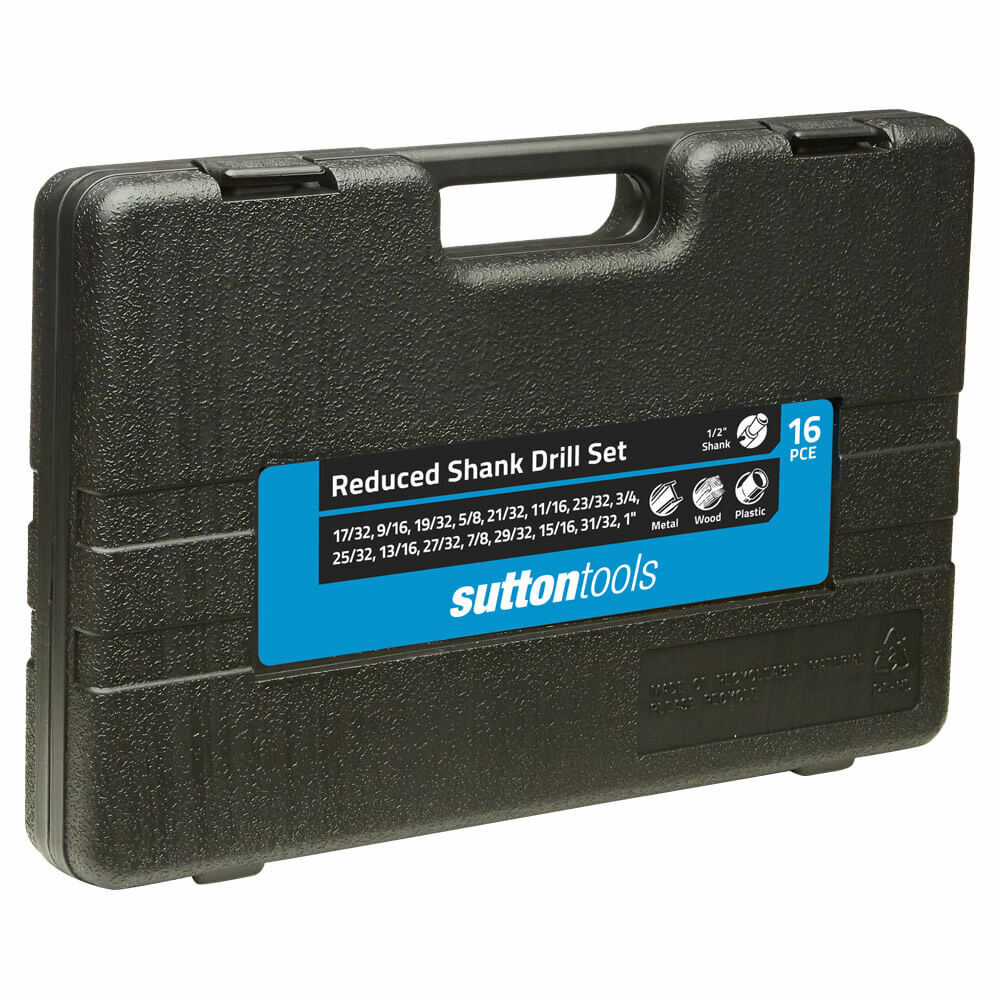

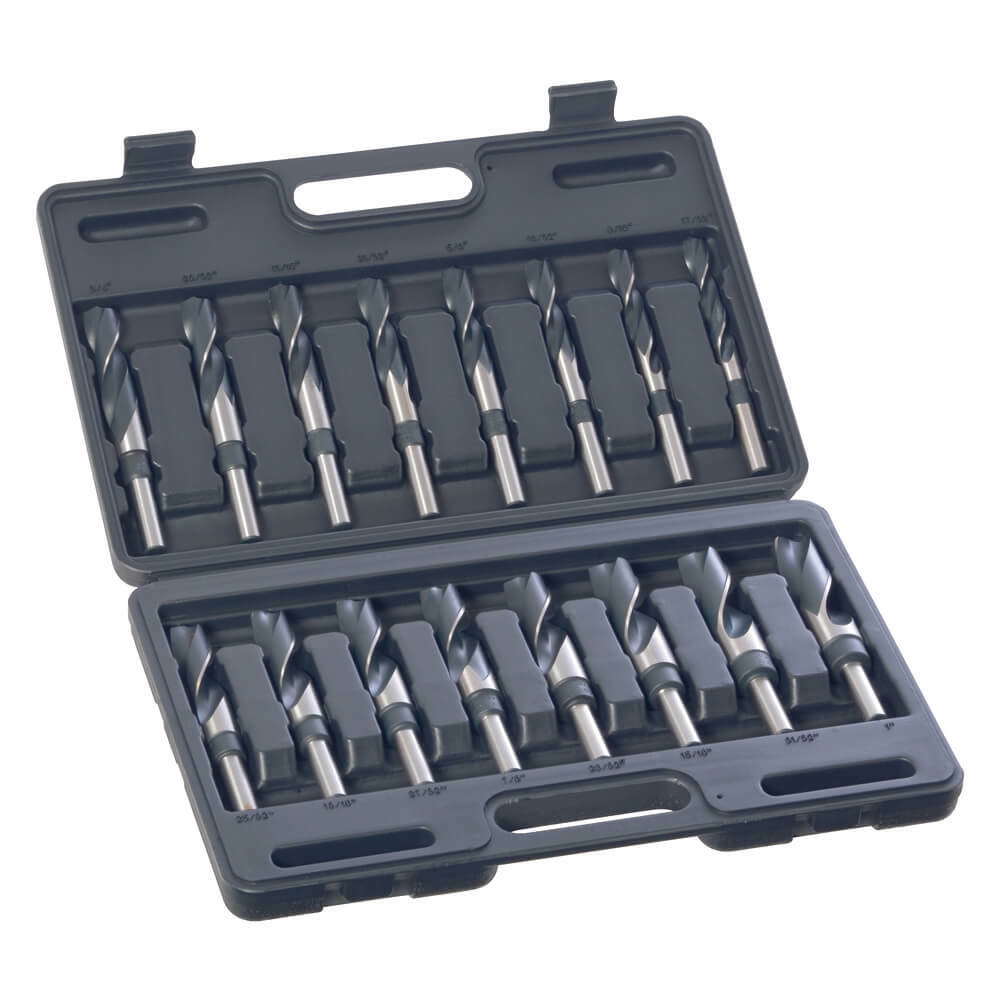

Sutton D188RS16 Reduced Shank Drill Set 16 piece - 1/2" Shank - HSS

Sutton Tools - Reduced Shank Drill Sets

$844.80
RRP $1,966.80
SAVE $1,122.00 (57%)
