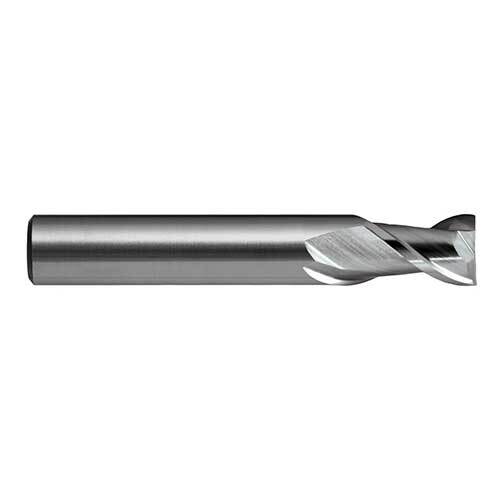

Sutton E1002100 21 x 110mm Slot Drill 2 Flute - 8% Cobalt Bright - Regular - Sutton Tools

Description

Sutton Tools 2 Flute Slot Drill - R30 N - Regular

For precision milling of slots & cavities
For soft steels & non-ferrous material

Features

2 Flute Slot Drill R30 N
Suitable for materials up to 1000 N/mm2

Specifications

Designation: N
Material: High Speed Steel Cobalt-8
Finish: Bright
Shank Form: A
Helix Angle: R30
Point Tolerance: e8
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Standard: JIS

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB

Specifications

AIMS SKU A0131807

Brand Sutton Tools

Model Number E1002100

Barcode Number 9311963139203

Type Slot Drill

Designation N

System of Measurement JIS

Material High Speed Steel Cobalt (HSSE Co8%)

Cutting Tip (mm) 21

Overall Length (mm) 110

Shank (mm) 20

Flute Length (mm) 45

Helix Angle R30

Surface Finish Bright (Brt)

Flute 2

Group Code E100

Item Type N (finishing)

Point Tolerance e8

Shank Tolerance h6

Point Form Square End

Shank Form A
