Description

Description

  • For long-reach profiling & contour milling applications

Features

  • Ballnose Slot Drill 2 Flute
  • Suitable for materials up to 1000 N/mm2

Specifications

  • Designation: N
  • Material: High Speed Steel Cobalt-8
  • Finish: Bright
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: e8
  • Shank Tolerance: h6
  • Point Form: Ballnose
  • Type: N (finishing)
  • Standard: Sutton

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB

Specifications

  • AIMS SKU A0008665
  • Brand Sutton Tools
  • Model Number E1130150
  • Barcode Number 9311963144986
  • Cutting Tip (mm) 1.5
  • Overall Length (mm) 55
  • Shank (mm) 6
  • Flute Length (mm) 3
  • Group Code E113
  • System of Measurement Metric
  • Material High Speed Steel Cobalt (HSSE Co8%)
  • Finish Bright
  • Flutes 2 Flute
  • Profile Ball Nose
  • Reach Long
  • Helix Angle R30
  • Shank Form A
  • Shank Tolerance h6
  • Point Tolerance e8
  • Item Type N (finishing)
SKU: A0008665

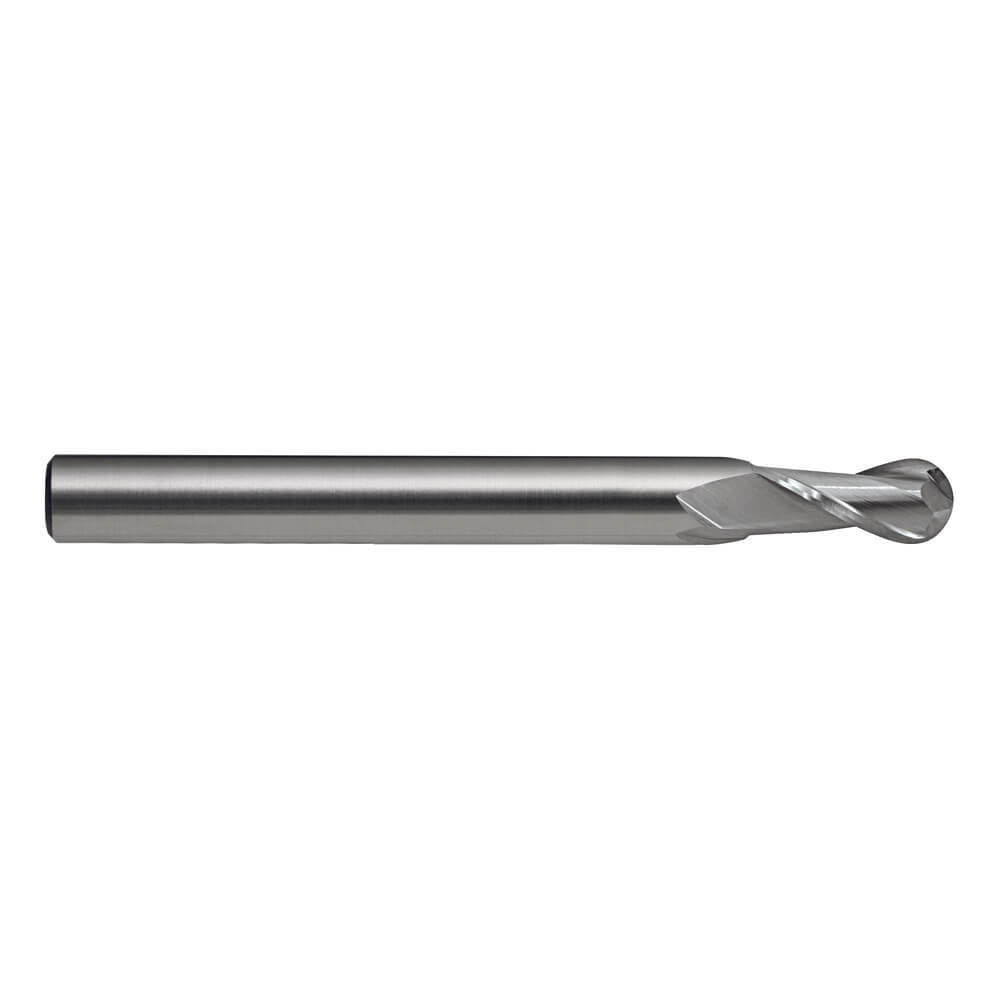

Sutton E1130150 1.5 x 6mm Ball Nose Slot Drill 2 Flute - 8% Cobalt Long

Sutton Tools 2 Flute Ballnose Slot Drills - R30 N - Long

$125.49
RRP $164.33
SAVE $38.84 (24%)
