Sutton E1133000 30 x 180mm Ball Nose Slot Drill 2 Flute - 8% Cobalt Long - Sutton Tools

Description

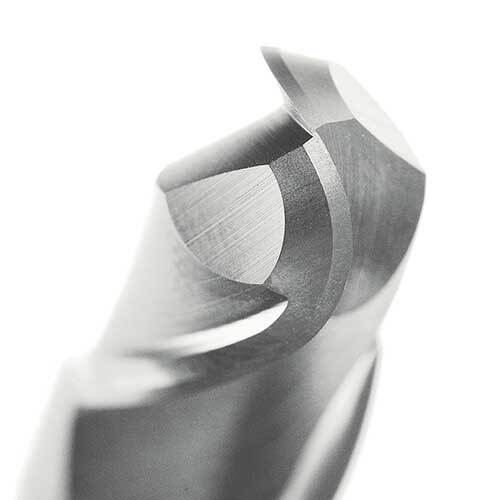

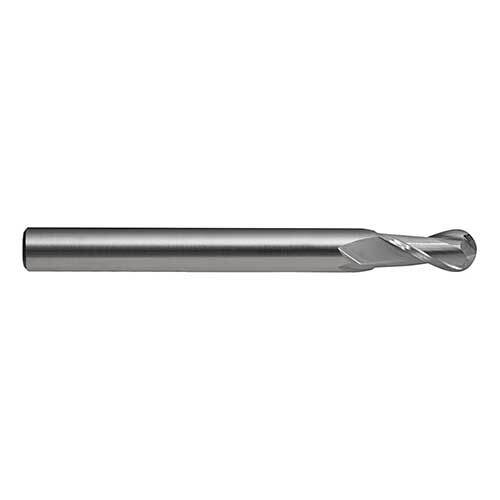

Sutton Tools 2 Flute Ballnose Slot Drill - R30 N - Long

For long-reach profiling & contour milling applications

Features

Ballnose Slot Drill 2 Flute
Suitable for materials up to 1000 N/mm2

Specifications

Designation: N
Material: High Speed Steel Cobalt-8
Finish: Bright
Shank Form: A
Helix Angle: R30
Point Tolerance: e8
Shank Tolerance: h6
Point Form: Ballnose
Type: N (finishing)
Standard: Sutton

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB

Specifications

AIMS SKU A0131808

Brand Sutton Tools

Model Number E1133000

Barcode Number 9311963145341

Type Ballnose Slot Drill

Designation N

System of Measurement Sutton

Material High Speed Steel Cobalt (HSSE Co8%)

Cutting Tip (mm) 30

Overall Length (mm) 180

Shank (mm) 25

Flute Length (mm) 55

Helix Angle R30

Surface Finish Bright (Brt)

Flute 2

Group Code E113

Rad Rad: 15

Item Type N (finishing)

Point Tolerance e8

Shank Tolerance h6

Point Form Ballnose

Shank Form A
