Sutton-E127 4 Flute Endmill - R30 N - Long - Sutton Tools

Description

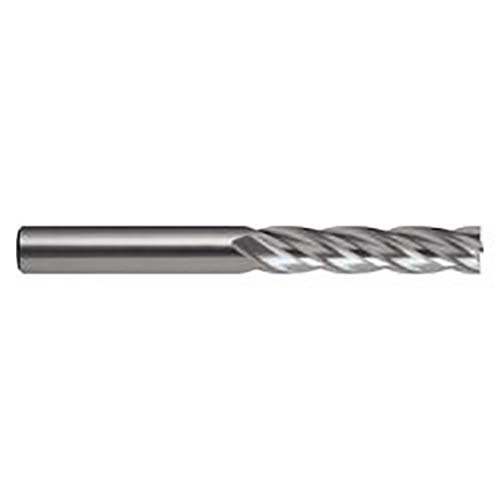

Sutton 4 Flute Endmill - R30 N - Long

4 Flute Endmill R30 N.
Suitable for materials up to 1000 N/mm2.
TiCN for longer tool life.

Specifications

Designation: N
Material: HSS Co.8
Finish: Brt
Shank Form: A
Helix Angle: R30
Point Tolerance: k10
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Standard: JIS

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
Optimal for Aluminum & Magnesium, wrought alloy - Non-Heat Treatable-60HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable-100HB

Specifications

AIMS SKU A0131654

Brand Sutton Tools

Model Number E1270650

Barcode Number 9311963143989

Designation N

Cutting Tip (mm) 6.5

Overall Length (mm) 80

Shank (mm) 10

Flute Length (mm) 35

Helix Angle R30

Shank Form A

Point Form Square End

Shank Tolerance h6

Point Tolerance k10

Flute 4

Type Endmill
System of Measurement JIS
Material High Speed Steel Cobalt (HSSE Co8%)
Item Type N (finishing)
Group Code E127
Surface Finish Bright (Brt)
