Sutton E151 Rougher - HRS (Fine) - R30 UNI - Regular - Sutton Tools

Description

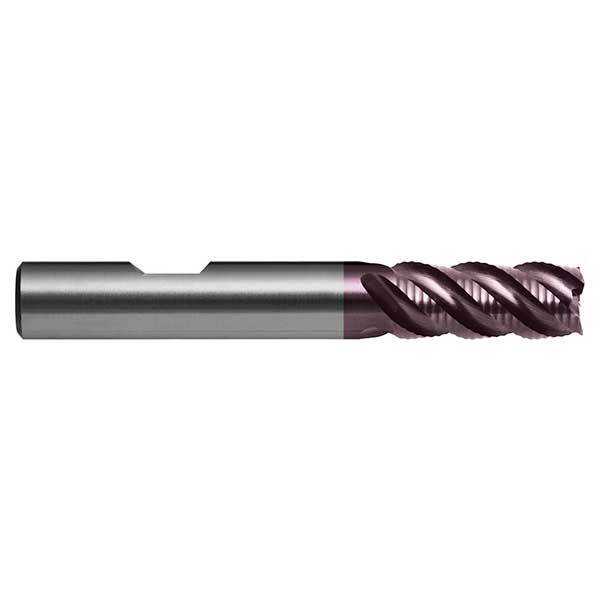

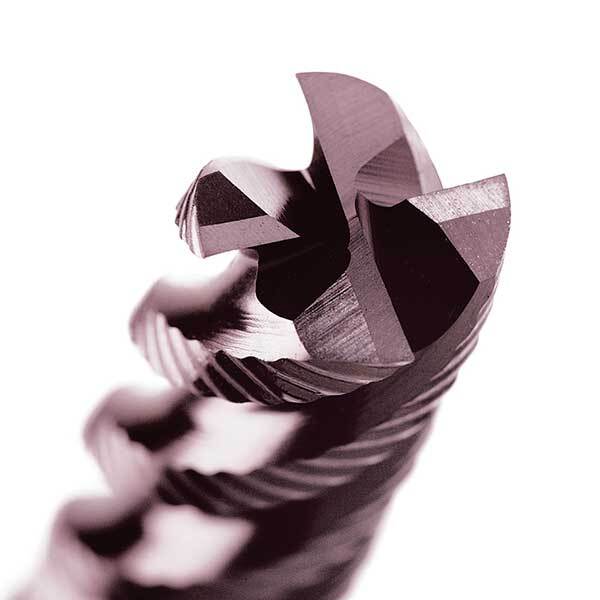

Sutton Tools Rougher - HRS (Fine) - R30 UNI - Regular

Rougher, HRS (fine), R45 UNI, Regular offers superior performance.
For roughing applications.
HRS geometry allows for heavy cuts in short & long chipping materials.
TiAlN For longer tool life.

Specifications

Designation: UNI
Material: SPM
Finish: TiAlN
Shank Form: B
Helix Angle: R45
Point Tolerance: js14
Shank Tolerance: h6
Point Form:45° Corner Chamfer
Type: HRS (fine pitch)
Standard: DIN844K

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C) - 300HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements - 300HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements - 350HB
Optimal for Steel - High alloy, cast & tool - 325HB
Optimal for Steel - Corrosion resistant & cast - Martensitic - 240HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic - 160HB
Optimal for Cast Iron, Malleable - Ferritic - 130HB

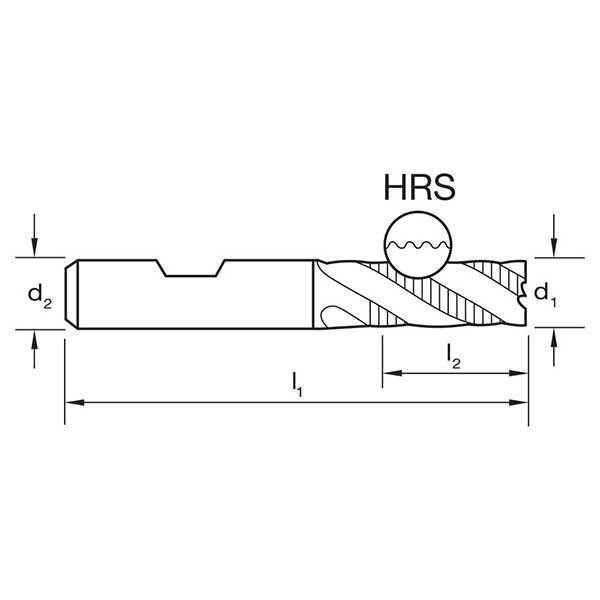

Specifications

AIMS SKU A0131081

Brand Sutton Tools

Model Number E1510400

Barcode Number 9311963414775

Cutting Tip (mm) 4

Overall Length (mm) 55

Shank (mm) 6

Flute Length (mm) 11

Helix Angle R45

Shank Form B

Point Form 45° Corner Chamfer

Shank Tolerance h6

Point Tolerance js14

Sutton Designation UNI

Flute 3

Type Rougher Endmill
System of Measurement DIN844K
Material SPM
Finish Titanium Aluminium Nitride (TiAIN)
Item Type HRS (fine pitch)
Group Code E151
