Description

Descriptions

  • For roughing applications
  • HR geometry allows for heavy cuts, in harder materials

Features

  • HR (fine) R30 NH Rougher Regular
  • Suitable for materials up to 1300 N/mm2

Specifications

  • Designation: NH
  • Material: High Speed Steel Cobalt-8
  • Finish: Bright
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: js14
  • Shank Tolerance: h6
  • Point Form: 45° Corner Chamfer
  • Type: HR (fine pitch)
  • Standard: JIS

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB

Specifications

  • AIMS SKU A0009008
  • Brand Sutton Tools
  • Model Number E1680600
  • Barcode Number 9311963335117
  • Cutting Tip (mm) 6
  • Overall Length (mm) 60
  • Shank (mm) 10
  • Flute Length (mm) 15
  • No. Of Flutes 3
  • Group Code E168
  • System of Measurement JIS,Metric
  • Material High Speed Steel Cobalt (HSSE Co8%)
  • Finish Bright
  • Flutes 3 Flute
  • Profile 45 degree Corner Chamfer
  • Reach Regular
  • Helix Angle R30
  • Shank Form A
  • Shank Tolerance h6
  • Point Tolerance js14
  • Item Type HR (fine pitch)
SKU: A0009008

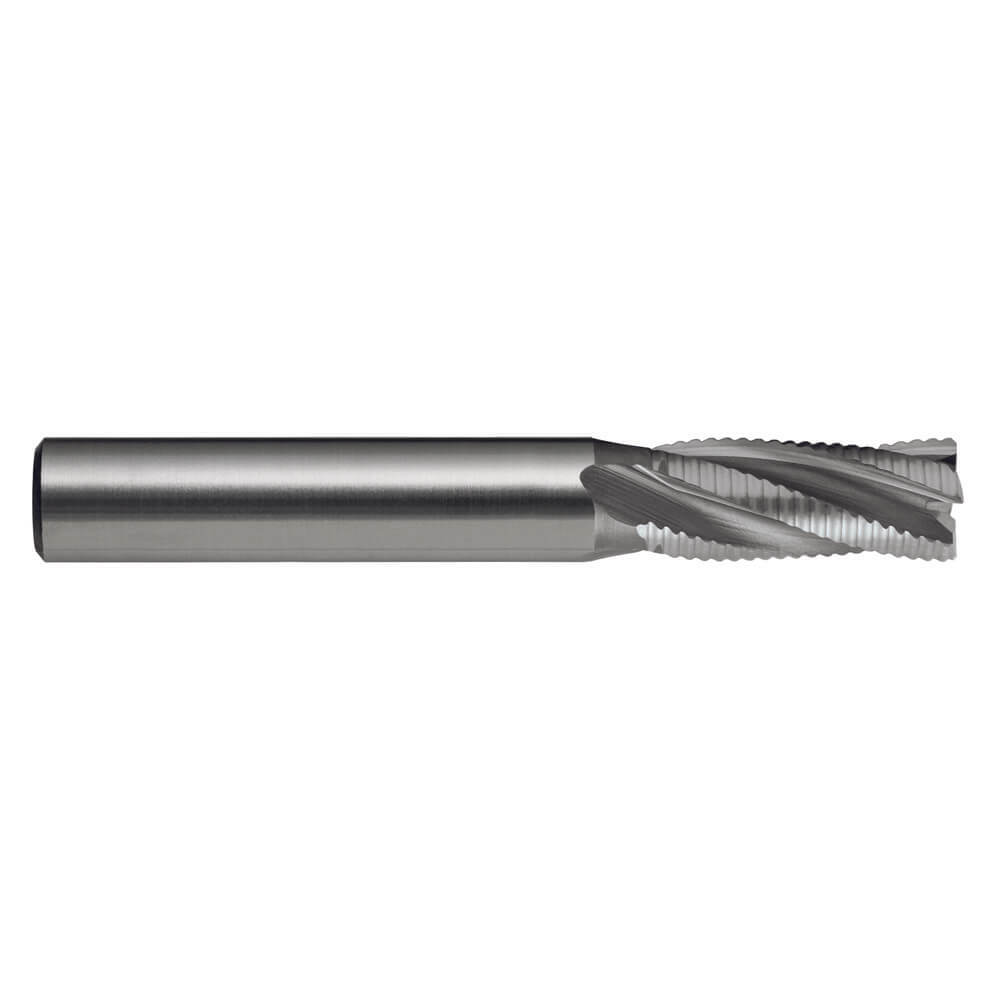

Sutton E1680600 6 x 10mm 3 Flute Roughing Endmill - 8% Cobalt - Regular

Sutton Tools Roughers - HR (fine) - R30 NH - Regular

$81.83
RRP $107.15
SAVE $25.32 (24%)
