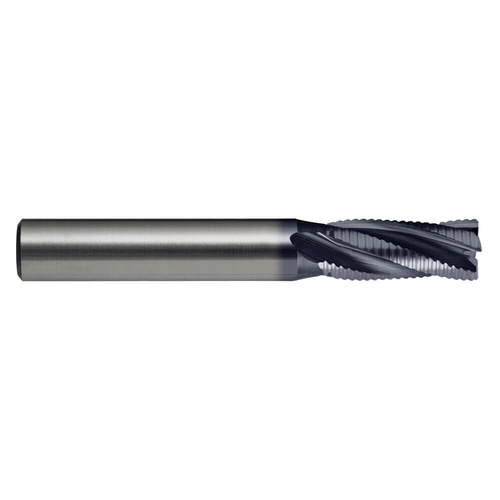

Sutton E1690600 6 x 10mm 3 Flute Roughing Endmill 8% Cobalt TiCN Regular

Description

Descriptions

For roughing applications
HR geometry allows for heavy cuts, in harder materials

Features

HR (fine) R30 NH Rougher Regular
Suitable for materials up to 1300 N/mm2
TiCN for longer tool life

Specifications

Designation: NH
Material: High Speed Steel Cobalt-8
Finish: TiCN
Shank Form: A
Helix Angle: R30
Point Tolerance: js14
Shank Tolerance: h6
Point Form: 45° Corner Chamfer
Type: HR (fine pitch)
Standard: JIS

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Steel - High alloy, cast & tool- 325 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic – 180 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Cast Iron, Malleable - Ferritic- 130 HB

Specifications

AIMS SKU A0009012

Brand Sutton Tools

Model Number E1690600

Barcode Number 9311963344034

Cutting Tip (mm) 6

Overall Length (mm) 60

Shank (mm) 10

Flute Length (mm) 15

No. Of Flutes 3

Group Code E169
System of Measurement JIS,Metric
Material High Speed Steel Cobalt (HSSE Co8%)
Finish Bright
Flutes 3 Flute
Profile 45 degree Corner Chamfer
Reach Regular
Helix Angle R30
Shank Form A
Shank Tolerance h6
Point Tolerance js14
Item Type HR (fine pitch)

Calculate Shipping

Resources

Sutton Tools HSS Endmills Catalogue
