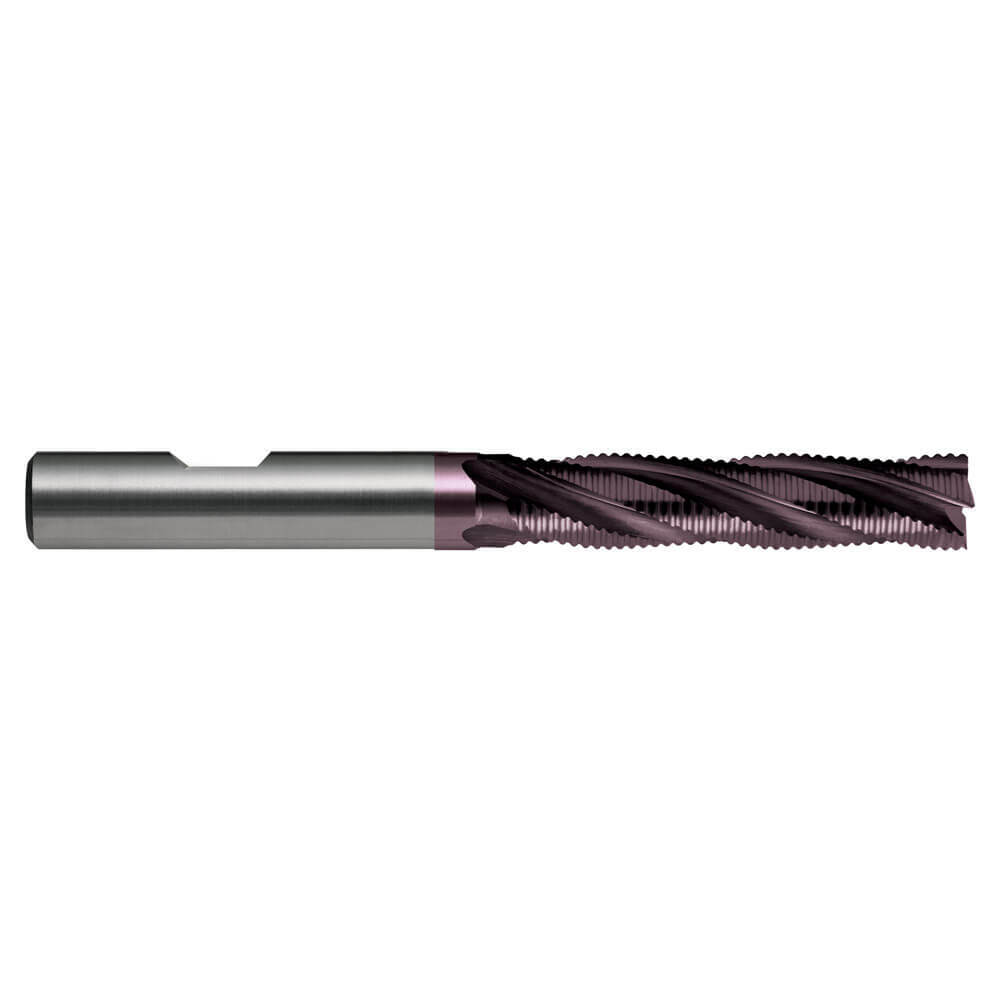

Sutton E1770800 8 x 10mm 3 Flute Roughing Endmill - HSS Co11% TiAlN Long

Description

Descriptions

For roughing applications
HR geometry allows for heavy cuts, in harder materials

Features

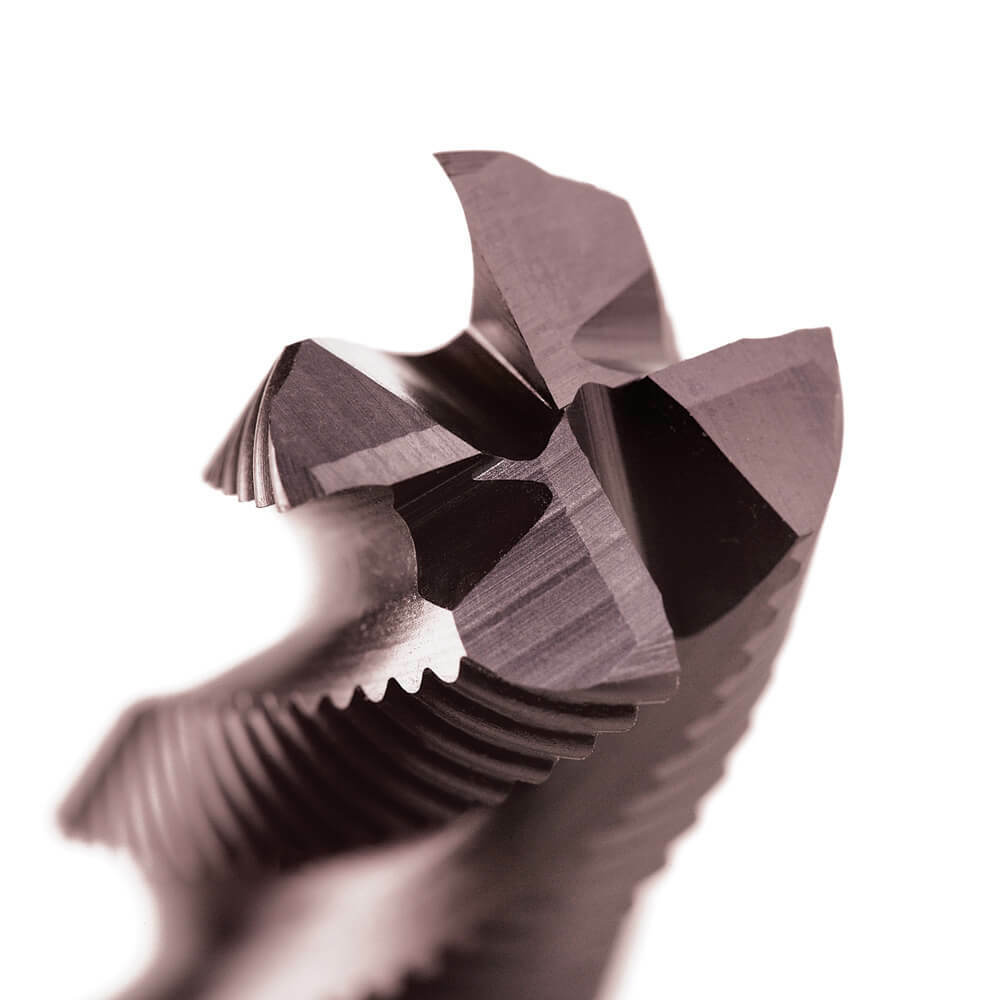

HR (fine) R30 H Rougher Long offers superior performance
Suitable for materials up to 1400 N/mm2
TiAIN for longer tool life

Specifications

Designation: H
Material: SPM
Finish: TiAIN
Shank Form: B
Helix Angle: R30
Point Tolerance: js14
Shank Tolerance: h6
Point Form: 45° Corner Chamfer
Type: HR (fine pitch)
Standard: DIN 844L

Applications

Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
Optimal for Steel - High alloy, cast & tool- 325 HB
Optimal for Steel - Corrosion resistant & cast – Martensitic – 240 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Cast Iron, Nodular (GGG) - Pearlitic- 250 HB
Optimal for Cast Iron, Malleable - Ferritic- 130 HB
Optimal for Cast Iron, Malleable - Pearlitic- 230 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) – 90 HB
Optimal for Cast Iron – Chilled – 400 HB

Specifications

AIMS SKU A0009026

Brand Sutton Tools

Model Number E1770800

Barcode Number 9311963410470

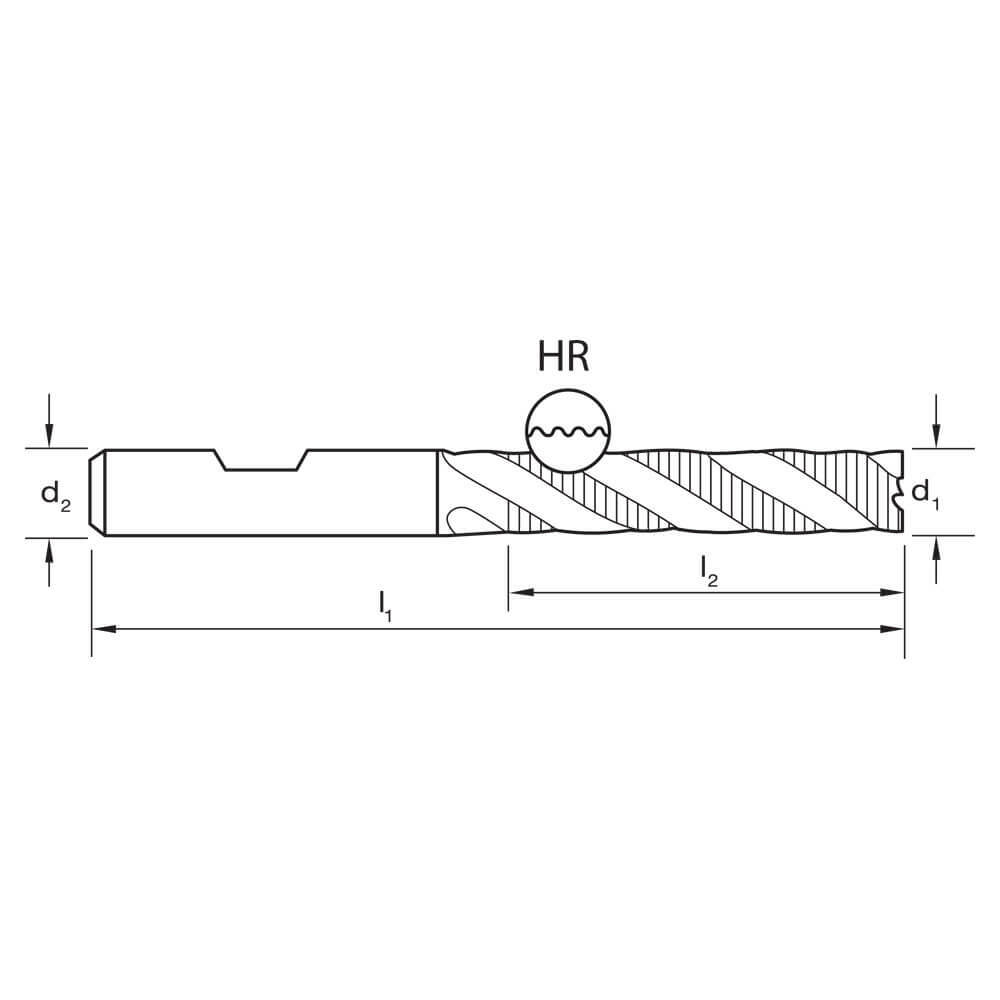

Cutting Tip (mm) 8

Overall Length (mm) 88

Shank (mm) 10

Flute Length (mm) 38

No. Of Flutes 3

Group Code E177
System of Measurement DIN 844L,Metric
Material High Speed Steel Cobalt (SPM-HSS Co11%)
Finish Titanium Aluminium Nitride (TiAIN)
Flutes 3 Flute
Profile 45 degree Corner Chamfer
Reach Long
Helix Angle R30
Shank Form B
Shank Tolerance h6
Point Tolerance js14
Item Type HR (fine pitch)
