Description

Descriptions

  • For long-reach slotting applications
  • For soft steels & non-ferrous material

Features

  • 2 Flute Slot Drill R30 N
  • Suitable for materials up to 1000 N/mm2
  • TiCN for longer tool life

Specifications

  • Designation: N
  • Material: High Speed Steel Cobalt-8
  • Finish: Bright
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: e8
  • Shank Tolerance: h6
  • Point Form: Square End
  • Type: N (finishing)
  • Standard: JIS

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB

Specifications

  • AIMS SKU A0009094
  • Brand Sutton Tools
  • Model Number E2250400
  • Barcode Number 9311963139326

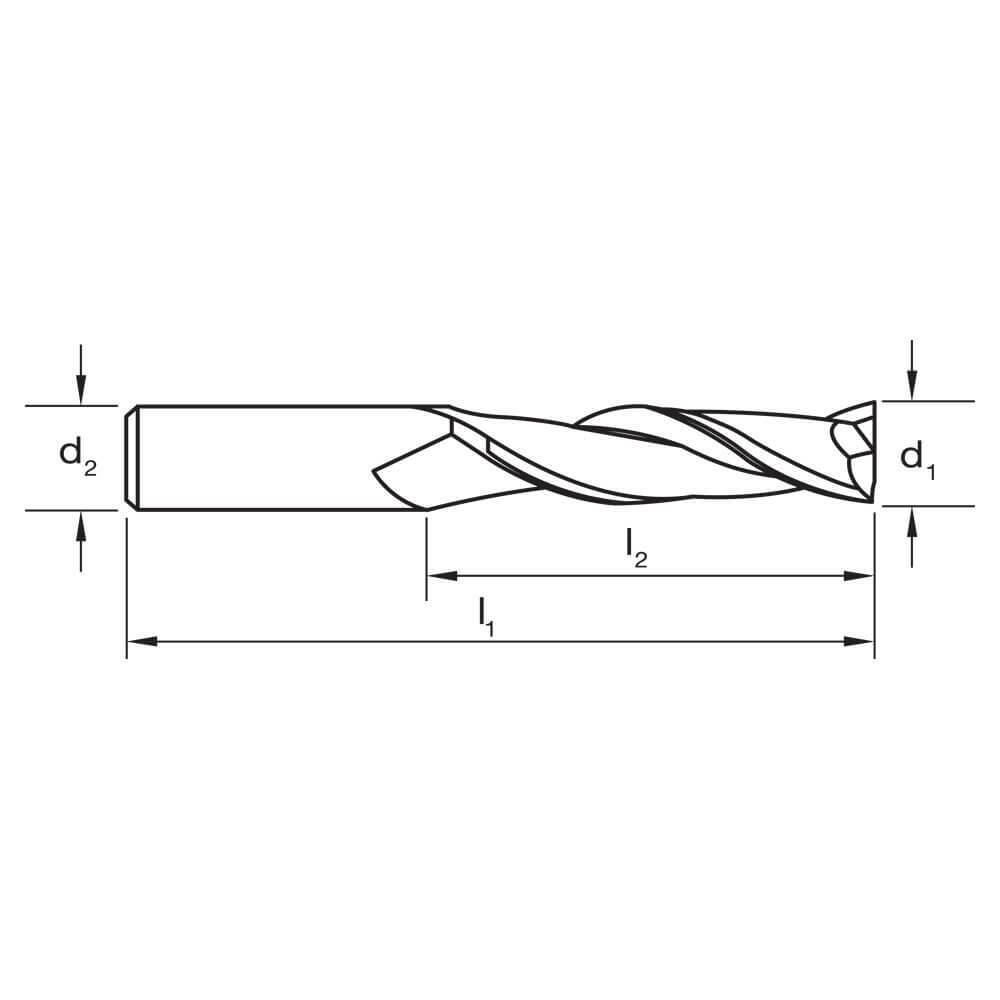

  • Cutting Tip (mm) 4
  • Overall Length (mm) 60
  • Shank (mm) 6
  • Flute Length (mm) 20
  • Group Code E225
  • System of Measurement JIS,Metric
  • Material High Speed Steel Cobalt (HSSE Co8%)
  • Finish Bright
  • Flutes 2 Flute
  • Profile Square End
  • Reach Long
  • Helix Angle R30
  • Shank Form A
  • Shank Tolerance h6
  • Point Tolerance e8
  • Item Type N (finishing)
SKU: A0009094

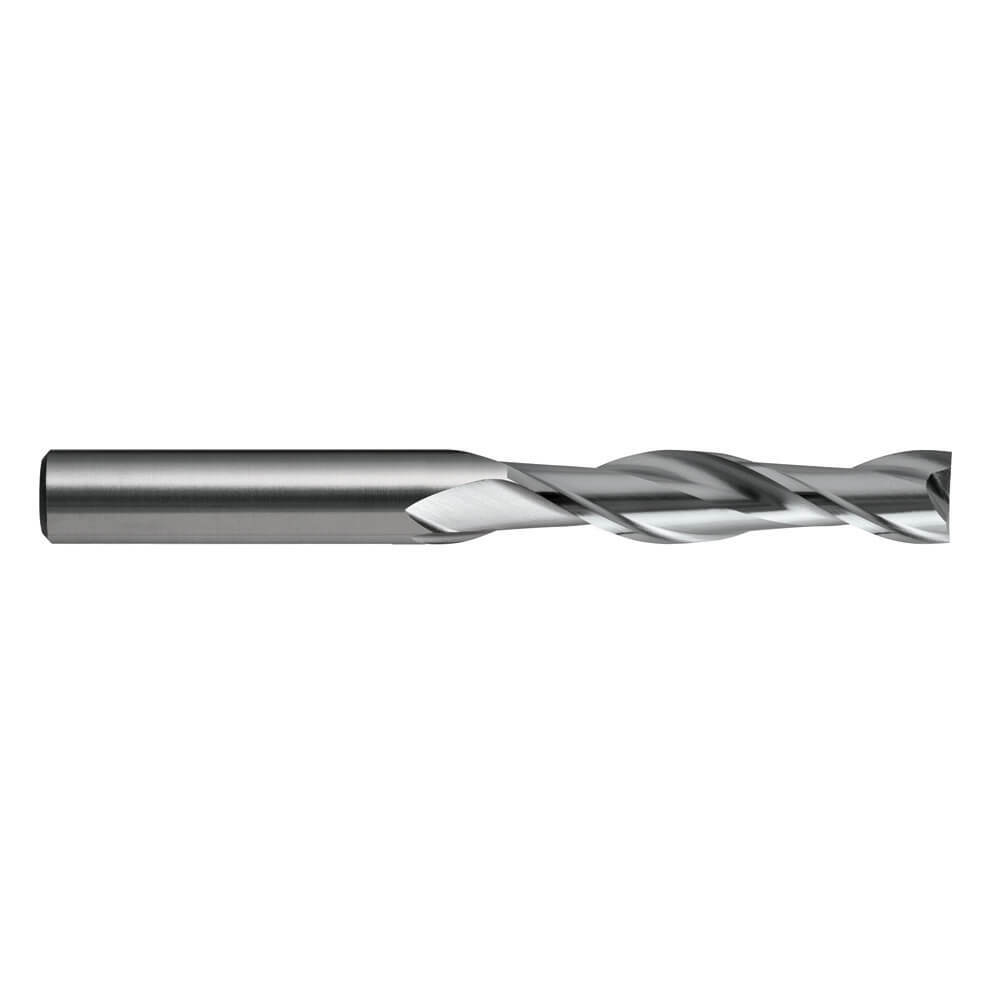

Sutton E2250400 4mm x 6mm 2 Flute Endmill - 8% Cobalt Steel - Long

Sutton Tools 2 Flute Slot Drills - R30 N - Long

$40.02
RRP $52.40
SAVE $12.38 (24%)
