Description

Description

  • For precision finish milling applications

Features

  • 4 Flute Endmill R30 N
  • Suitable for materials up to 1000 N/mm2
  • TiCN for longer tool life

Specifications

  • Designation: N
  • Material: High Speed Steel Cobalt-8
  • Finish: TiCN
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: k10
  • Shank Tolerance: h6
  • Point Form: Square End
  • Type: N (finishing)
  • Standard: JIS

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
  • Optimal for Cast Iron, Ferritic/Pearlitic - 180 HB
  • Optimal for Cast Iron – Chilled – 400 HB

Specifications

  • AIMS SKU A0009115
  • Brand Sutton Tools
  • Model Number E2300600
  • Barcode Number 9311963142791
  • Cutting Tip (mm) 6
  • Overall Length (mm) 65
  • Shank (mm) 6
  • Flute Length (mm) 25
  • Group Code E230
  • System of Measurement JIS,Metric
  • Material High Speed Steel Cobalt (HSSE Co8%)
  • Finish Titanium Carbonitride (TiCN)
  • Flutes 4 Flute
  • Profile Square End
  • Reach Long
  • Helix Angle R30
  • Shank Form A
  • Shank Tolerance h6
  • Point Tolerance k10
  • Item Type N (finishing)
SKU: A0009115

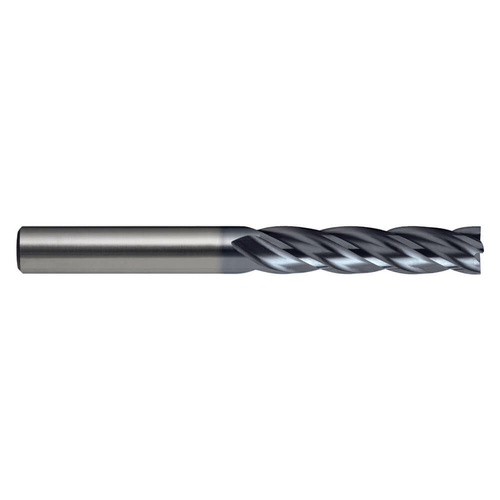

Sutton E2300600 6mm x 6mm 4 Flute Endmill - 8% Cobalt Steel - TiCN - Long

Sutton Tools 4 Flute Endmills - R30 N - Long

$93.43
