Sutton E252 Rougher - HR (fine) - R30 VA - Regular - Sutton Tools

Description

Sutton Tools Rougher - HR (fine) - R30 VA - Regular

Rougher, HR (fine) R30 VA, Long offers superior performance
For roughing applications
HR geometry allows for heavy cuts, in stainless steel
Suitable for materials up to 1400 N/mm2

Specifications

Designation: VA
Material: SPM
Finish: TiCN
Shank Form: B
Helix Angle: R30
Point Tolerance: js14
Shank Tolerance: h6
Point Form:45° Corner Chamfer
Type: HR (fine pitch)
Standard: DIN844L

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C) - 300HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements - 275HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements - 300HB
Optimal for Steel - High alloy, cast & tool - 200HB
Optimal for Steel - Corrosion resistant & cast - Martensitic - 240HB
Optimal for Stainless Steel - Austenitic - 180HB
Optimal for Stainless Steel - Duplex - 250HB

Specifications

AIMS SKU A0131104

Brand Sutton Tools

Model Number E2520600

Barcode Number 9311963513256

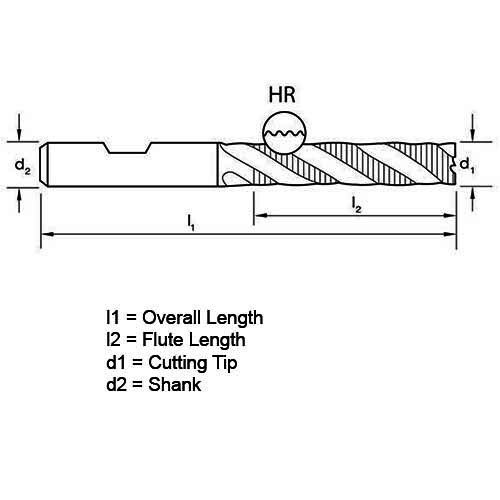

Cutting Tip (mm) 6

Overall Length (mm) 68

Shank (mm) 6

Flute Length (mm) 24

Helix Angle R30

Shank Form B

Point Form 45° Corner Chamfer

Shank Tolerance h6

Point Tolerance js14

Sutton Designation VA

Flute 3

Type Rougher Endmill
System of Measurement DIN844L
Material SPM
Finish TiCN
Item Type HR (fine pitch)
Group Code E252
