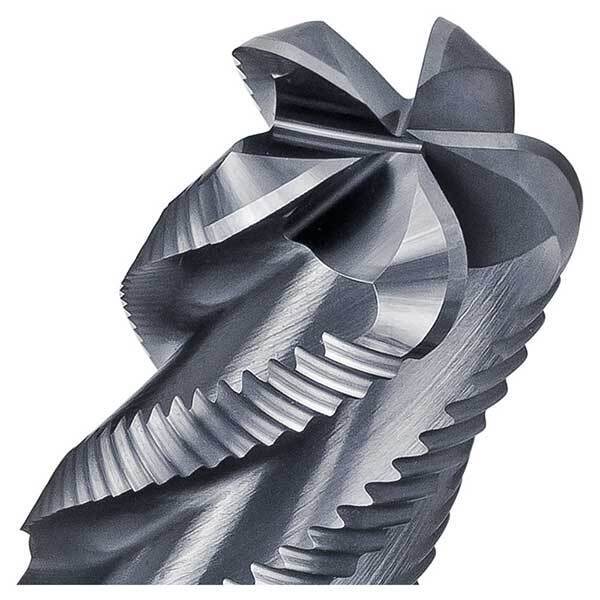

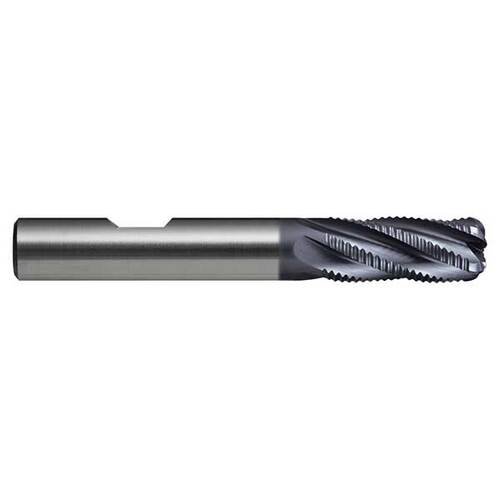

Sutton E255 Rougher - HR (fine) - R30 VA - Corner Radius - Sutton Tools

Description

Sutton Rougher - HR (fine) - R30 VA - Corner Radius

SPM HSS with 11% Co, particulary suited to roughing or slotting of Titanium Alloy – TiAl6V4(DIN) / T-A6V (AFNOR) / AMS R56400 (UNS).

Features

Rougher, HR (fine) R30 VA, Regular offers superior performance
For roughing applications
HR geometry allows for heavy cuts, in stainless steel
Suitable for materials up to 1400 N/mm2
Particularly suitable for vdi grades 37.x

Specifications

Designation: VA
Material: SPM
Finish: AlCrN
Shank Form: B
Helix Angle: R30
Point Tolerance: js14
Shank Tolerance: h6
Point Form: Corner Radius
Type: HR (fine pitch)
Standard: DIN844K

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C) - 300HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements - 275HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements - 300HB
Optimal for Steel - High alloy, cast & tool - 200HB
Optimal for Steel - Corrosion resistant & cast - Martensitic - 240HB
Optimal for Stainless Steel - Austenitic - 180HB
Optimal for Stainless Steel - Duplex - 250HB

Specifications

AIMS SKU A0131111

Brand Sutton Tools

Model Number E2551025

Barcode Number 9311963613529

Cutting Tip (mm) 10

Overall Length (mm) 72

Shank (mm) 10

Flute Length (mm) 22

Helix Angle R30

Shank Form B

Point Form Corner Radius

Shank Tolerance h6

Point Tolerance js14

Rad 2.5

Sutton Designation VA

Flute 4

Type Rougher Endmill
System of Measurement DIN844K
Material SPM
Finish Aluminium Chromium Nitride (AlCrN)
Item Type HR (fine pitch)
Group Code E255
