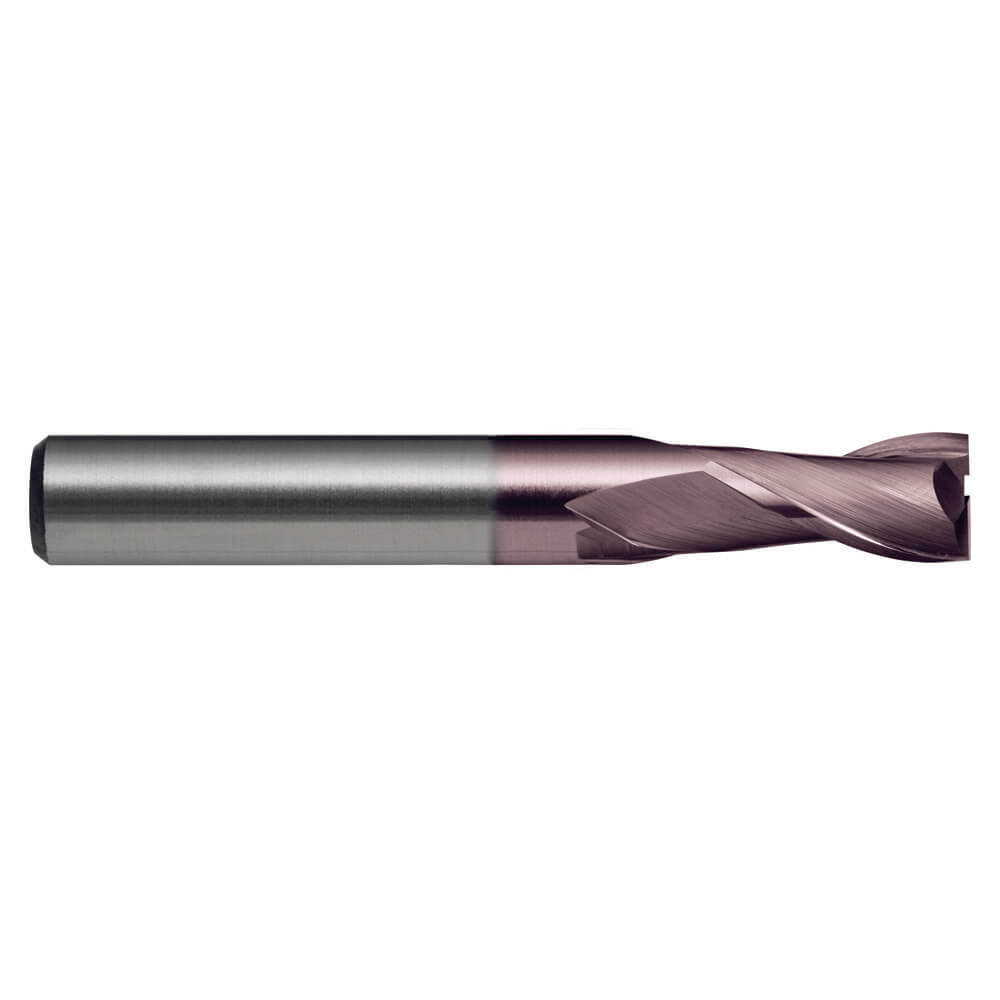

Sutton E3070159 1/16" x 1/8" 2Flute Slot Drill Carbide VHM TiAlNExtra Long

Description

Description

For precision finish milling of slots & cavities

Features

Slot Drill, Regular, 2 Flute, R30
Suitable for materials up to 1600 N/mm2
TiAlN for longer tool life

Specifications

Designation: N
Material: VHM
Finish: TiAIN
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Rake Angle: 12
Standard: DIN6527L
Standard: DIN 844K

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - High alloy, cast & tool- 200 HB

Specifications

AIMS SKU A0009131

Brand Sutton Tools

Model Number E3070159

Barcode Number 9311963517490

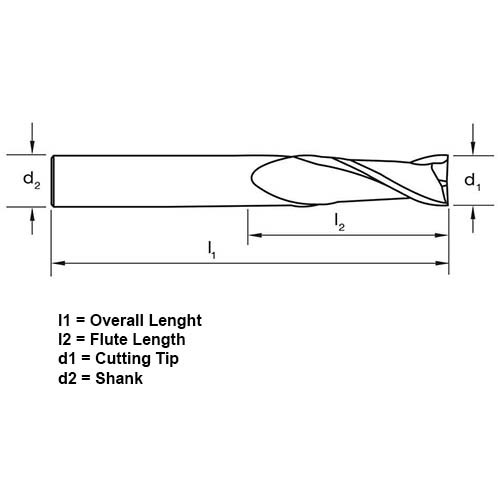

Cutting Tip (inch) 1/16

Overall Length (inch) 1 1/2

Shank (inch) 1/8

Flute Length (inch) 3/16

Group Code E307
System of Measurement DIN6527L,Imperial
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Titanium Aluminium Nitride (TiAIN)
Flutes 2 Flute
Profile Square End
Reach Regular
Helix Angle R30
Shank Form HA
Shank Tolerance h6
Point Tolerance h10
Item Type N (finishing)
Rake Angle 12
