Description

Descriptions

For precision milling of slots & cavities
Optimized geometry for aluminum & non-ferrous materials

Features

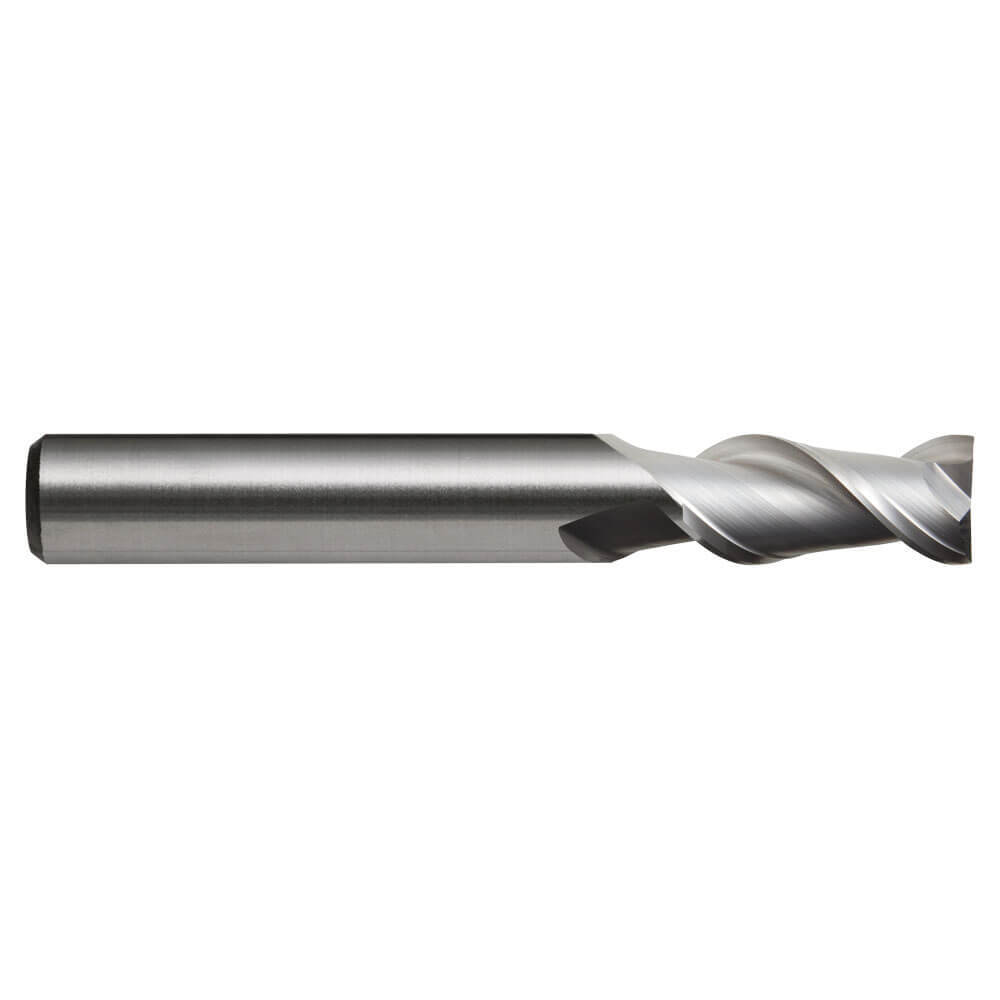

2 Flute Slot Drill R40
High speed & high feed rates can be achieved
Highly efficient chip disposal

Specifications

Designation: Al
Material: VHM
Finish: Bright
Shank Form: HA
Helix Angle: R40
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Rake Angle: 15
Standard: DIN 6527L

Applications

Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
Optimal for Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable – 130 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) - 90 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB
