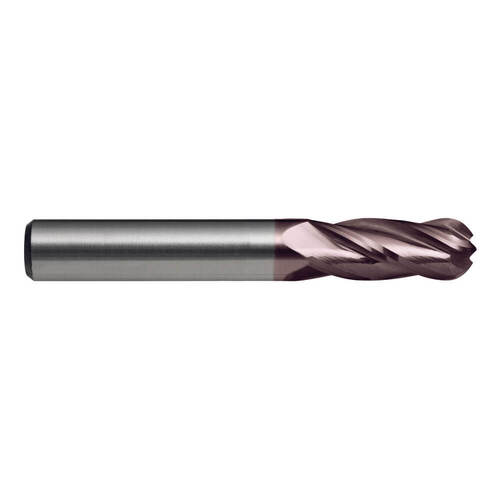

Sutton E3191270 1/2" x 1/2" 4Flute Ball Nose Endmill Carbide AlCrN Regular

Description

Descriptions

For profile & contour milling applications
Increased feed rates than 2 flute variety

Features

Ballnose Endmill 4 Flute
Suitable for materials up to 1600 N/mm2
TiAlN for longer tool life

Specifications

Designation: N
Material: VHM
Finish: TiAIN
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Ballnose
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Stainless Steel - Austenitic- 180 HB

Specifications

AIMS SKU A0009219

Brand Sutton Tools

Model Number E3191270

Barcode Number 9311963517827

Cutting Tip (inch) 1/2

Overall Length (inch) 3

Shank (inch) 1/2

Flute Length (inch) 1

Group Code E319
System of Measurement Imperial
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Aluminium Chromium Nitride (AlCrN)
Flutes 4 Flute
Profile Ball Nose
Reach Regular
Helix Angle R30
Shank Form HA
Shank Tolerance h6
Point Tolerance h10
Item Type N (finishing)
Rake Angle 12
