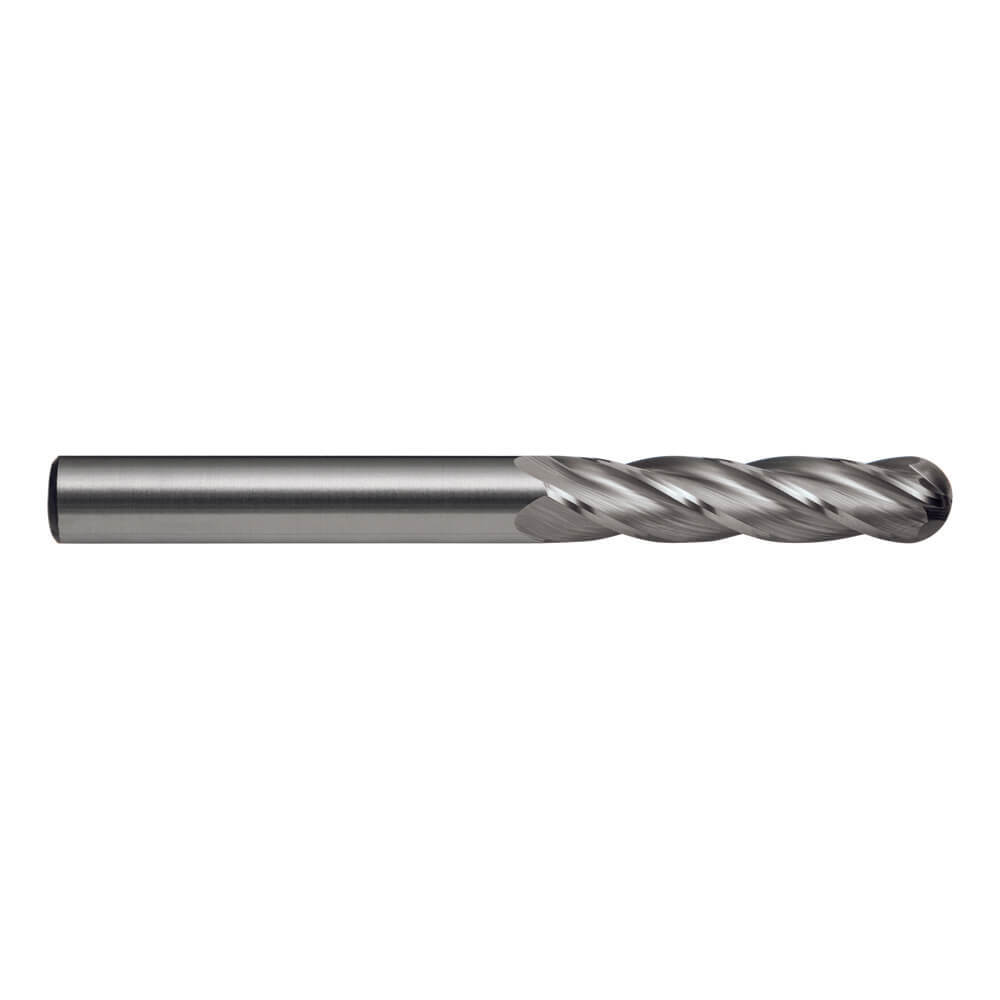

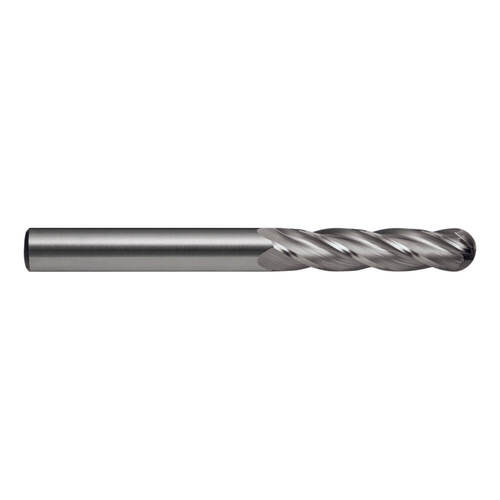

Sutton E3200300 3 x 3mm 4 Flute Ball Nose Endmill Cabide VHMExtra Long

Description

Descriptions

For profile & contour milling in extra- long reach applications
Minimal deflection due to strong/larger core

Features

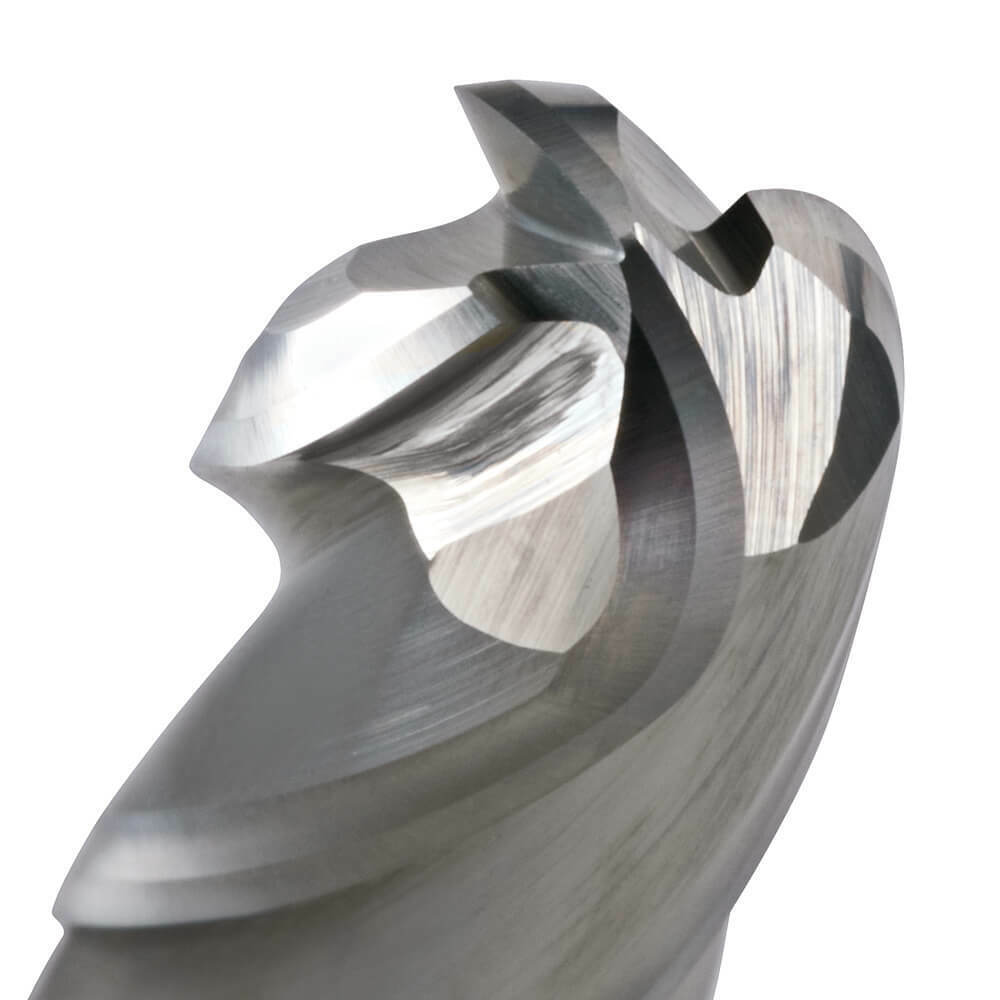

Ballnose Endmill 4 Flute
Suitable for materials up to 1300 N/mm2

Specifications

Designation: N
Material: VHM
Finish: Bright
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Ballnose
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB

Specifications

AIMS SKU A0009220

Brand Sutton Tools

Model Number E3200300

Barcode Number 9311963363332

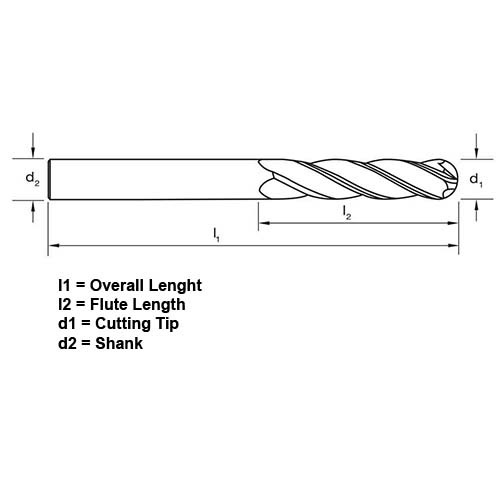

Cutting Tip (mm) 3

Overall Length (mm) 76

Shank (mm) 3

Flute Length (mm) 25

Group Code E320
System of Measurement Metric
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Bright
Flutes 4 Flute
Profile Ball Nose
Reach Extra Long
Helix Angle R30
Shank Form HA
Shank Tolerance h6
Point Tolerance h10
Item Type N (finishing)
Rake Angle 12
