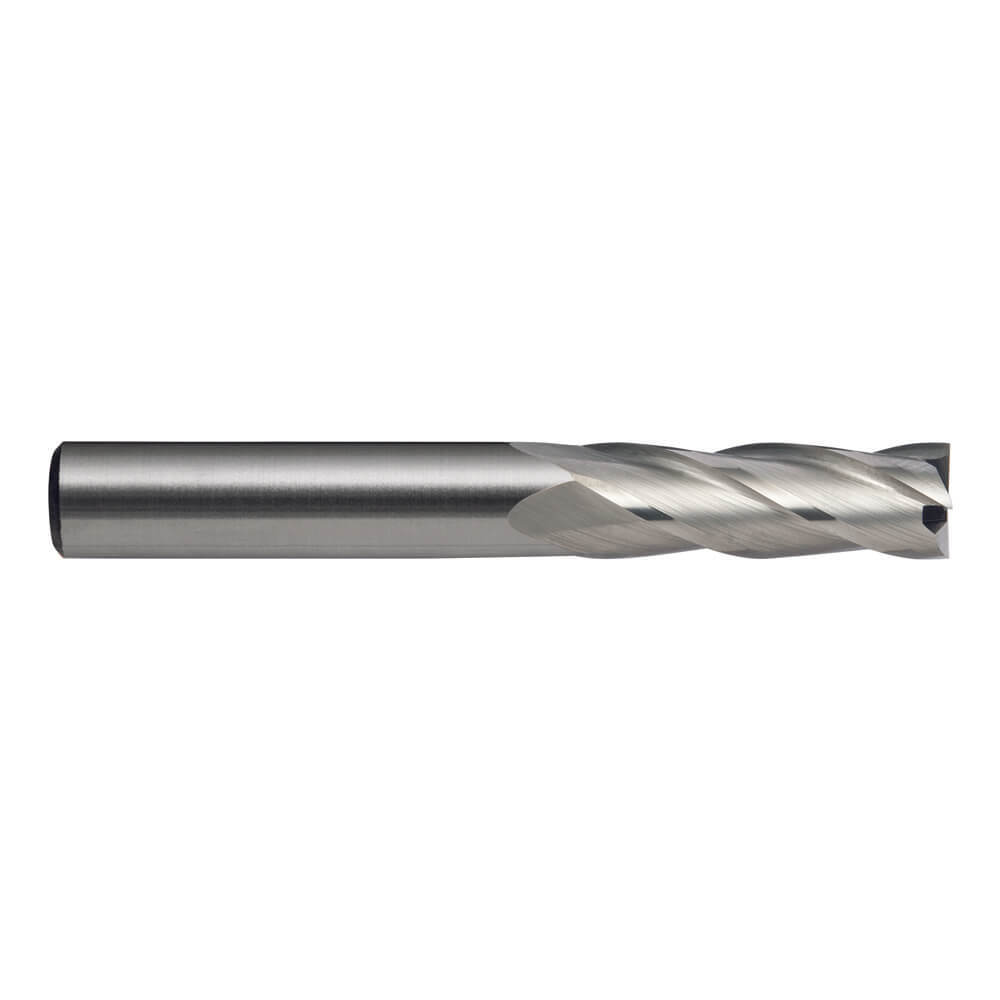

Sutton E3370318 1/8" x 1/8" 4 Flute Endmill - Solid Carbide VHM - Long

Description

Description

For long-reach finish milling applications

Features

4 Flute Endmill R30 N
Suitable for materials up to 1300 N/mm2

Specifications

Designation: N
Material: VHM
Finish: Bright
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Stainless Steel – Austenitic- 180 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB

Specifications

AIMS SKU A0009256

Brand Sutton Tools

Model Number E3370318

Barcode Number 9311963360393

Cutting Tip (inch) 1/8

Overall Length (inch) 2 1/4

Shank (inch) 1/8

Flute Length (inch) 3/4

Group Code E337
System of Measurement Imperial
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Bright
Flutes 4 Flute
Profile Square End
Reach Long
Helix Angle R30
Shank Form HA
Shank Tolerance h6
Point Tolerance h10
Item Type N (finishing)
Rake Angle 12
