Description

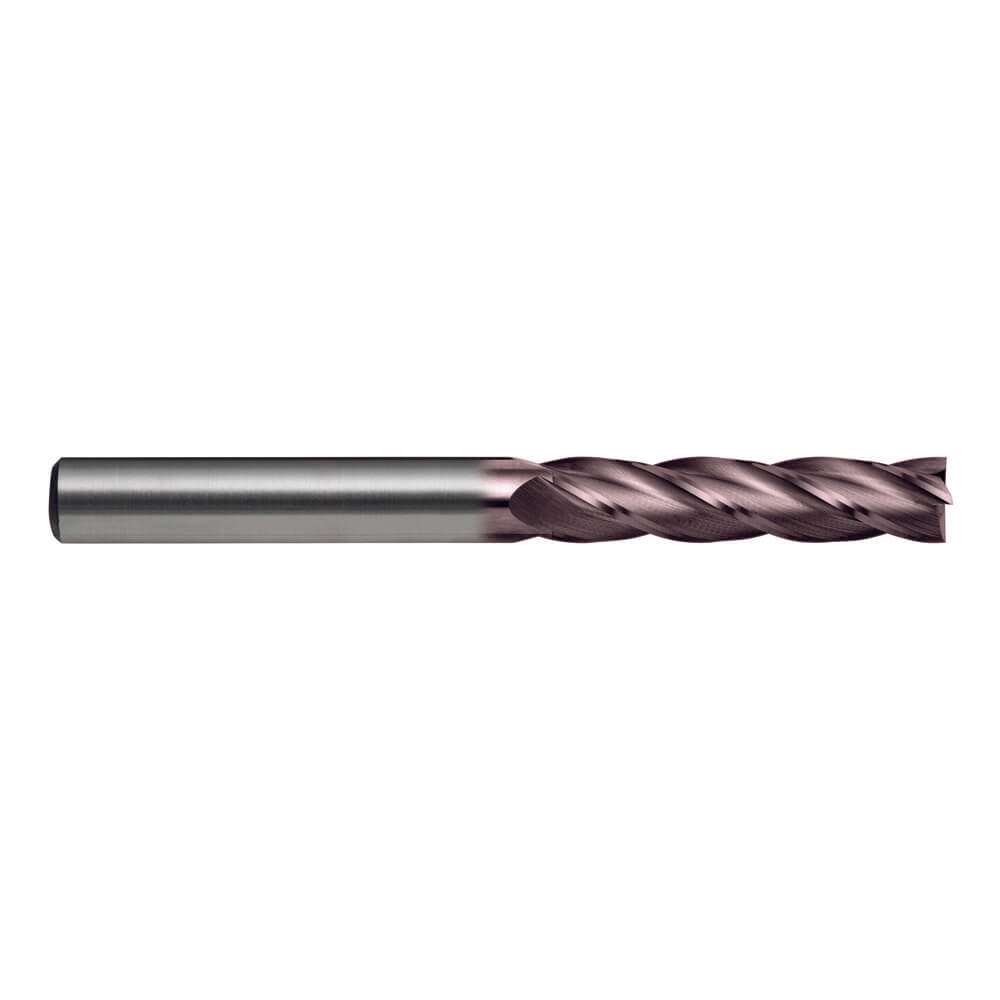

• For long-reach finish milling applications

Features

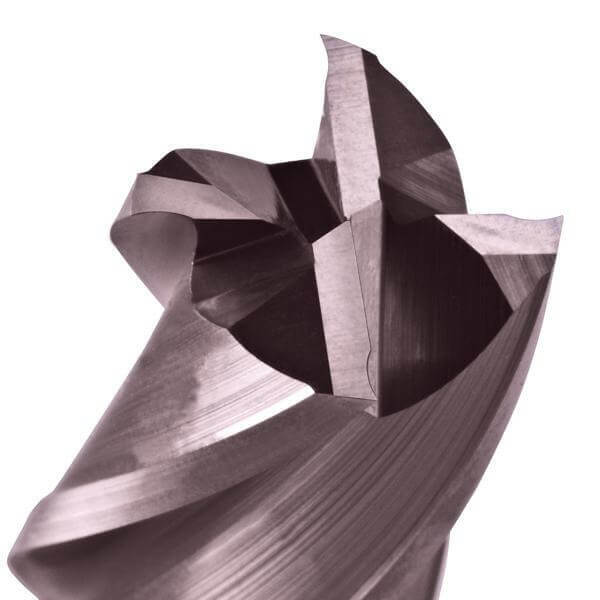

• 4 Flute Endmill R30 N
• Suitable for materials up to 1300 N/mm2
• TiAlN for longer tool life

Specifications

• Designation: N
• Material: VHM
• Finish: TiAIN
• Shank Form: HA
• Helix Angle: R30
• Point Tolerance: h10
• Shank Tolerance: h6
• Point Form: Square End
• Type: N (finishing)
• Rake Angle: 12
• Standard: Sutton

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
• Optimal for Steel - High alloy, cast & tool- 200 HB
• Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic – 200 HB
• Optimal for Stainless Steel – Austenitic- 180 HB
• Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic – 180 HB
• Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
• Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
• Optimal for Cast Iron, Nodular (GGG) - Pearlitic- 250 HB
• Optimal for Cast Iron, Malleable - Ferritic- 130 HB
• Optimal for Cast Iron, Malleable – Pearlitic – 230 HB
• Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
• Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
• Optimal for Cast Iron – Chilled – 400 HB
