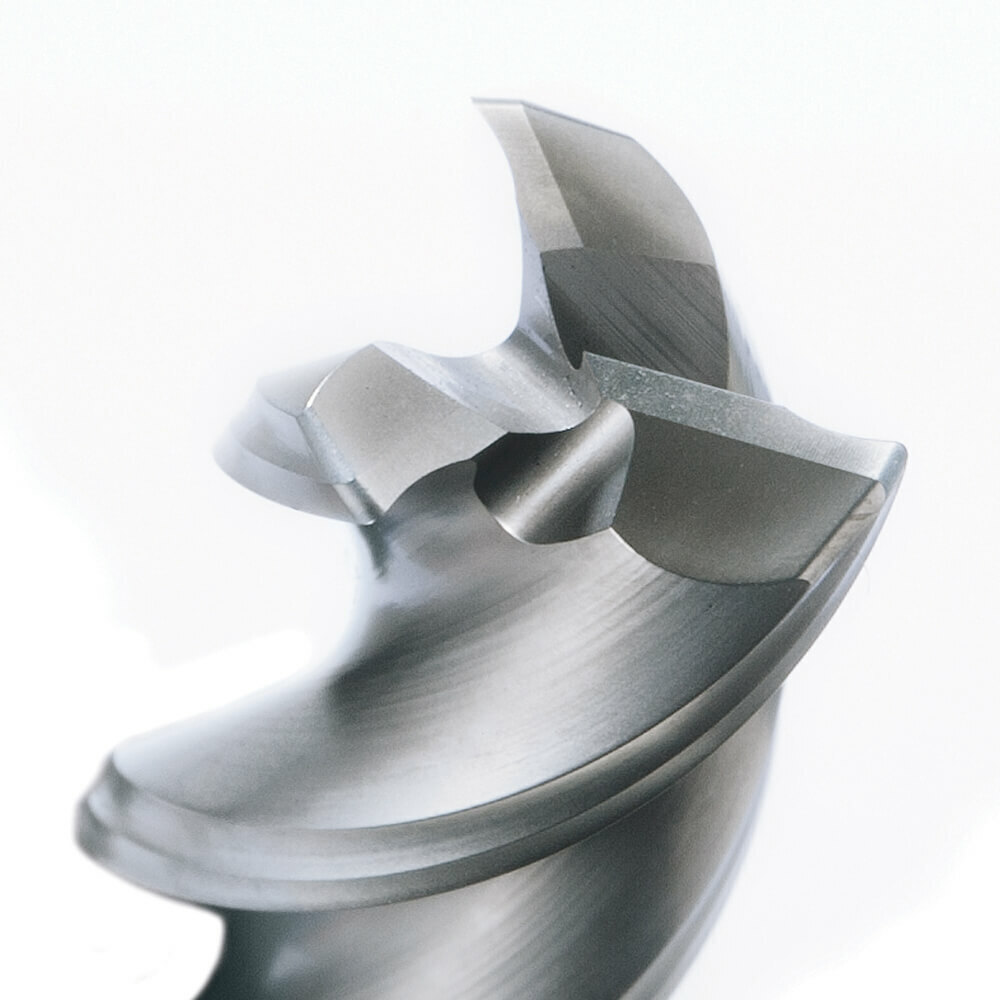

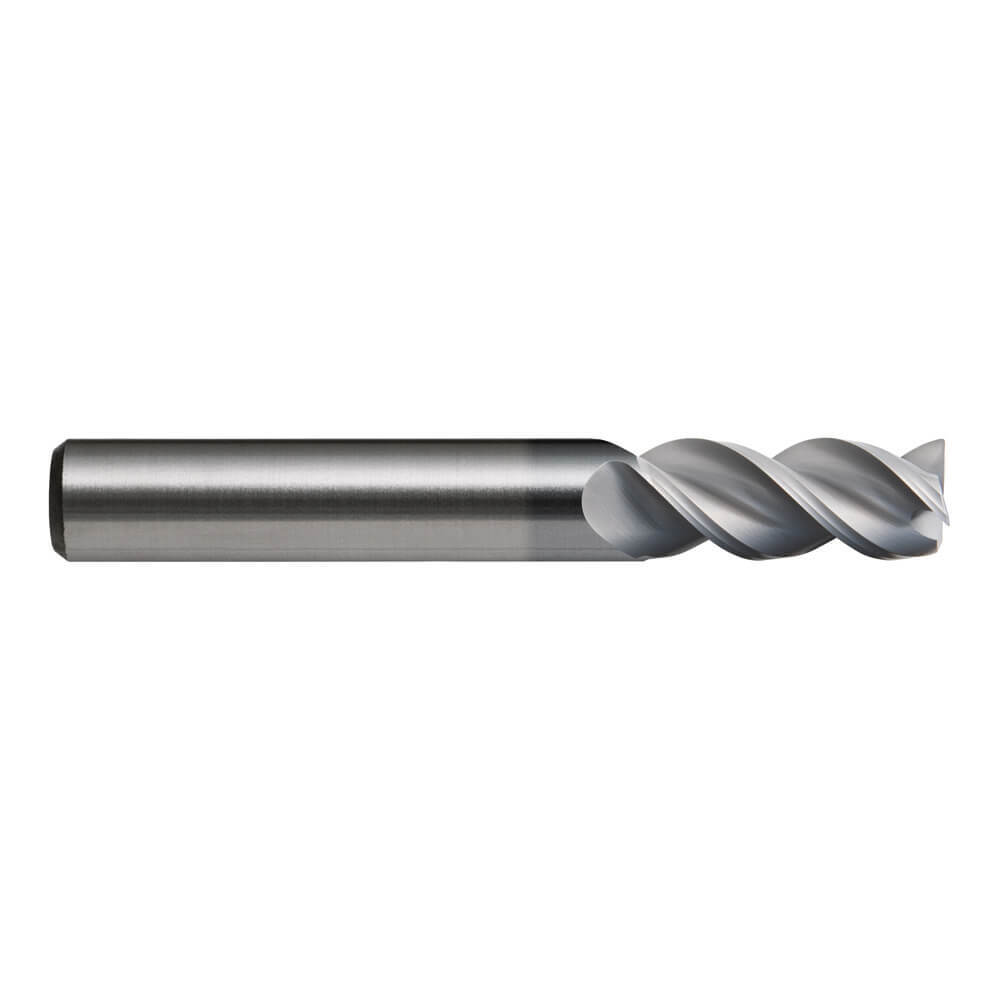

Sutton E4000600 6 x 6mm 3 Flute Endmill - Carbide VHM Ultra CrN - Regular

Description

Descriptions

Optimized geometry for soft materials
CrN for copper and non-ferrous materials

Features

VHM-ULTRA grade of carbide for high performance
45/46/44° variable flute helix for chatter free milling

Specifications

Designation: Al
Material: VHM-ULTRA
Finish: CrN
Shank Form: HA
Helix Angle: R45/46/44
Point Tolerance: e8
Shank Tolerance: h5
Point Form: 45° Corner Chamfer
Type: N (finishing)
Rake Angle: 15
Standard: DIN6527L

Applications

Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
Optimal Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable – 130 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) - 90 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB

Specifications

AIMS SKU A0009350

Brand Sutton Tools

Model Number E4000600

Barcode Number 9311963582450

Cutting Tip (mm) 6

Overall Length (mm) 57

Shank (mm) 6

Flute Length (mm) 13

Rad 0.2

Group Code E400
System of Measurement DIN6527L,Metric
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish Chromium Nitride (CrN)
Flutes 3 Flute
Profile 45 degree Corner Chamfer
Reach Long
Helix Angle R45/46/44
Shank Form HA
Shank Tolerance h5
Point Tolerance e8
Item Type N (finishing)
Rake Angle 15
