Description

Descriptions

  • Optimized geometry for soft materials
  • CrN for copper and non-ferrous materials

Features

  • VHM-ULTRA grade of carbide for high performance
  • 45/46/44° variable flute helix for chatter free milling

Specifications

  • Designation: Al
  • Material: VHM-ULTRA
  • Finish: CrN
  • Shank Form: HA
  • Helix Angle: R45/46/44
  • Shank Tolerance: h5

Specifications

  • AIMS SKU A0009383
  • Brand Sutton Tools
  • Model Number E4080600
  • Barcode Number 9311963553467
  • Cutting Tip (mm) 6
  • Overall Length (mm) 62
  • Shank (mm) 6
  • Flute Length (mm) 9
  • L3 (mm) 24
  • Group Code E408
  • System of Measurement Metric
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Chromium Nitride (CrN)
  • Flutes 3 Flute
  • Profile Ball Nose
  • Reach Long Reach
  • Helix Angle R45/46/44
  • Shank Form HA
  • Shank Tolerance h5
SKU: A0009383

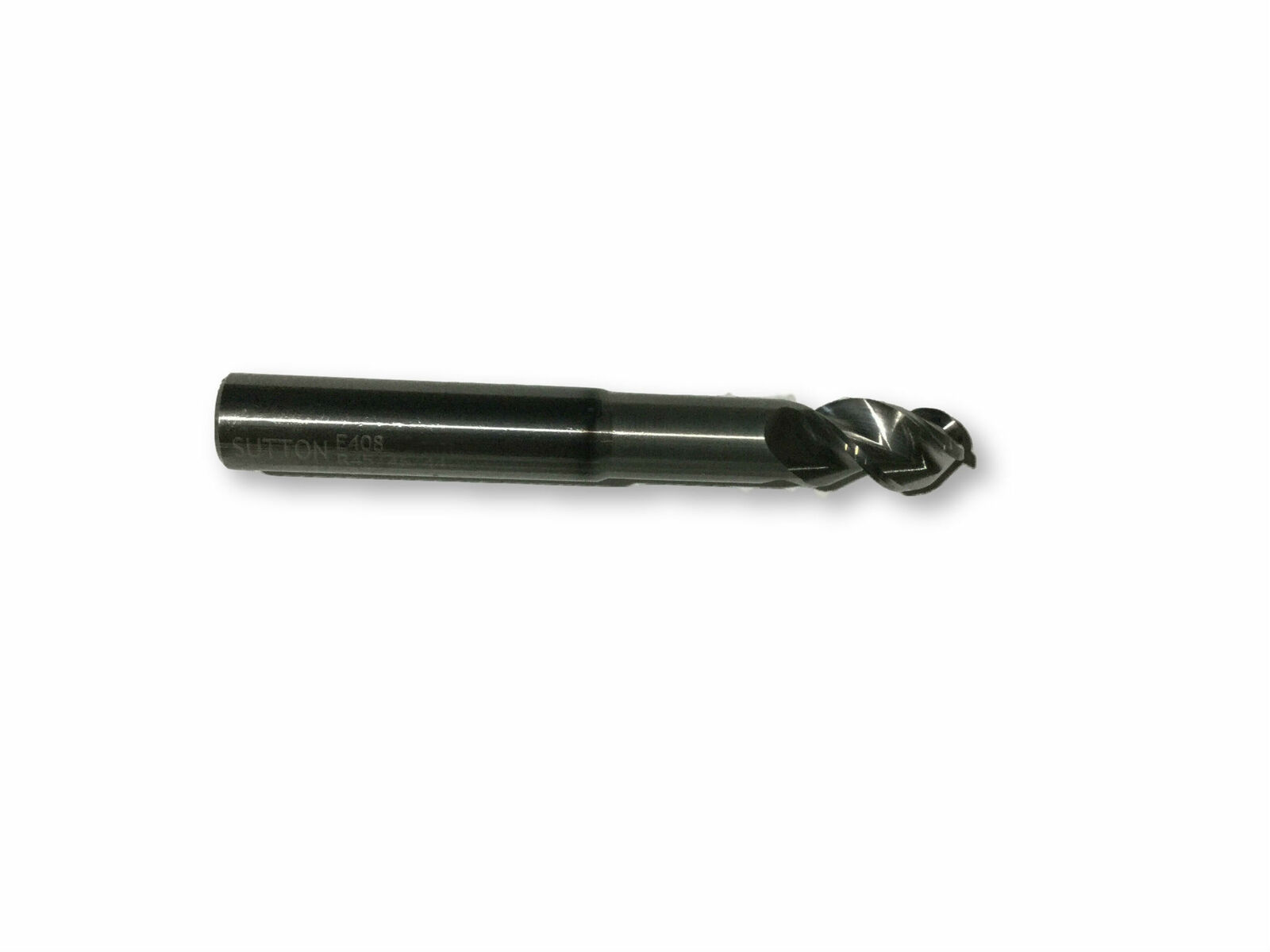

Sutton E4080600 6 x 6mm 3 Flute Ball Nose Endmill - Carbide VHM CrN Long

Sutton Ballnose Endmills - R35/36/36 Al - Long - Harmony

$50.60
