Description

Description

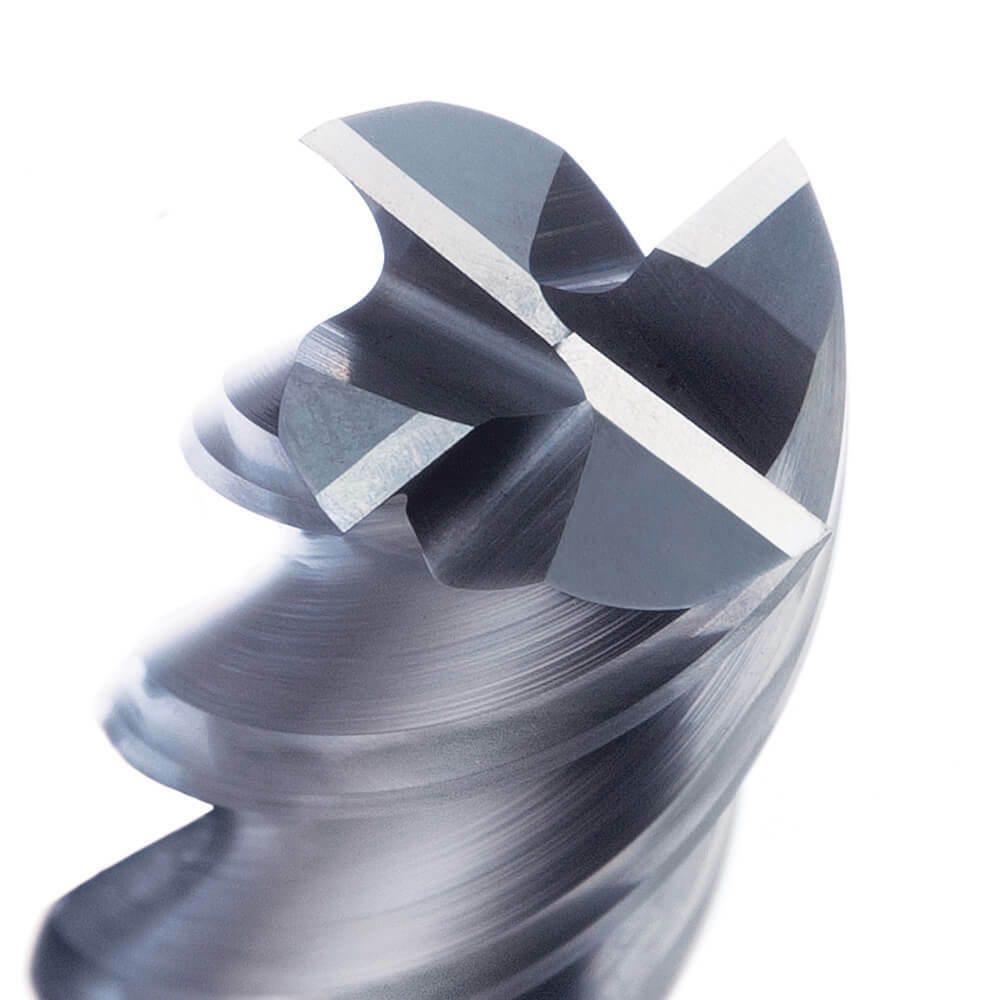

  • Endmill, 4 Flute, R45/44 UNI, Long, Harmony for high performance

Features

  • VHM-ULTRA grade of carbide for high performance
  • 45/44° variable flute helix for chatter free milling
  • Suitable for materials up to 1600 N/mm2
  • AlCrN for longer tool life

Specifications

  • Designation: UNI
  • Material: VHM-ULTRA
  • Finish: AlCrN
  • Shank Form: HA
  • Helix Angle: R45/44
  • Point Tolerance: e8
  • Shank Tolerance: h5
  • Point Form: 45° Corner Chamfer
  • Type: N (finishing)
  • Rake Angle: 6
  • Standard: DIN6527L

Applications (Optimal Use)

  • Steel
    • Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB; (~ 0.45 %C)- 190 HB; (~ 0.45 %C)- 250 HB; (~ 0.75 %C)- 270 HB; (~ 0.75 %C)- 300 HB
  •  Steel - Low alloy & cast < 5% of alloying elements
    • 180 HB; 275 HB; 300 HB; 350 HB
  •  Steel - High alloy, cast & tool- 200 HB; 325 HB
  •  Cast Iron, Grey
    • Ferritic / Pearlitic- 180 HB
    •  Pearlitic- 260 HB
  •  Cast Iron, Nodular
    • Ferritic- 160 HB
    •  Pearlitic- 250 HB
  •  Cast Iron, Malleable
    • Ferritic- 130 HB
    • Pearlitic- 230 HB
  •  Titanium & Titanium alloys –
    • CP Titanium
    • Alpha alloys
    • Alpha / Beta alloys
    • Beta alloys
  •  Hardened Steel – 45 HRC; 55 HRC; 58 HRC
  •  Cast Iron – Chilled – 400 HB; 55 HRC

Specifications

  • AIMS SKU A0009491
  • Brand Sutton Tools
  • Model Number E4260300
  • Barcode Number 9311963559650
  • Cutting Tip (mm) 3
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 8
  • D3 (mm) 2.8
  • L3 (mm) 14
  • Group Code E426
  • System of Measurement DIN6527L,Metric
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Aluminium Chromium Nitride (AlCrN)
  • Flutes 4 Flute
  • Profile 45 degree Corner Chamfer
  • Reach Long
  • Helix Angle R45/44
  • Shank Form HA
  • Shank Tolerance h5
  • Point Tolerance e8
  • Item Type N (finishing)
  • Rake Angle 6
SKU: A0009491

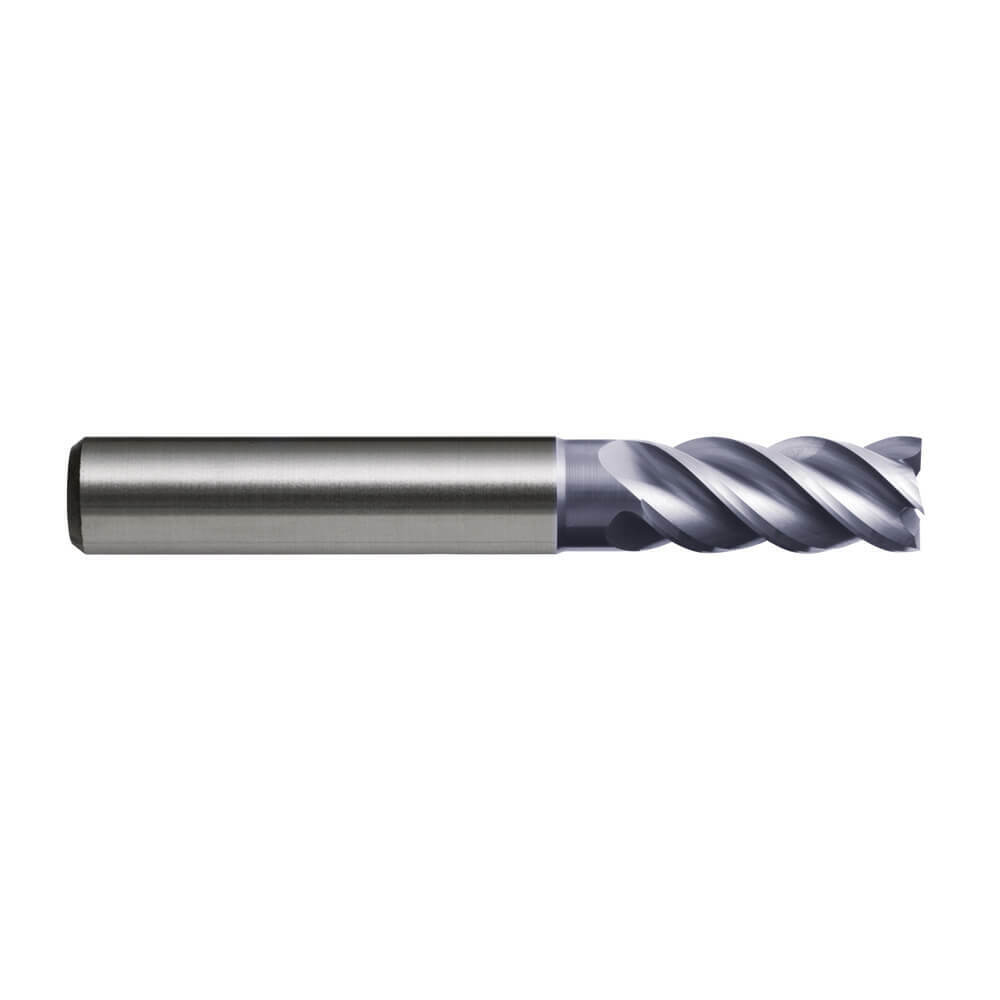

Sutton E4260300 3 x 6mm 4 Flute Endmill - Carbide VHM Ultra AlCrN - Long

Sutton 4 Flute Endmills - R45/44 UNI - Regular - Harmony

$39.83
