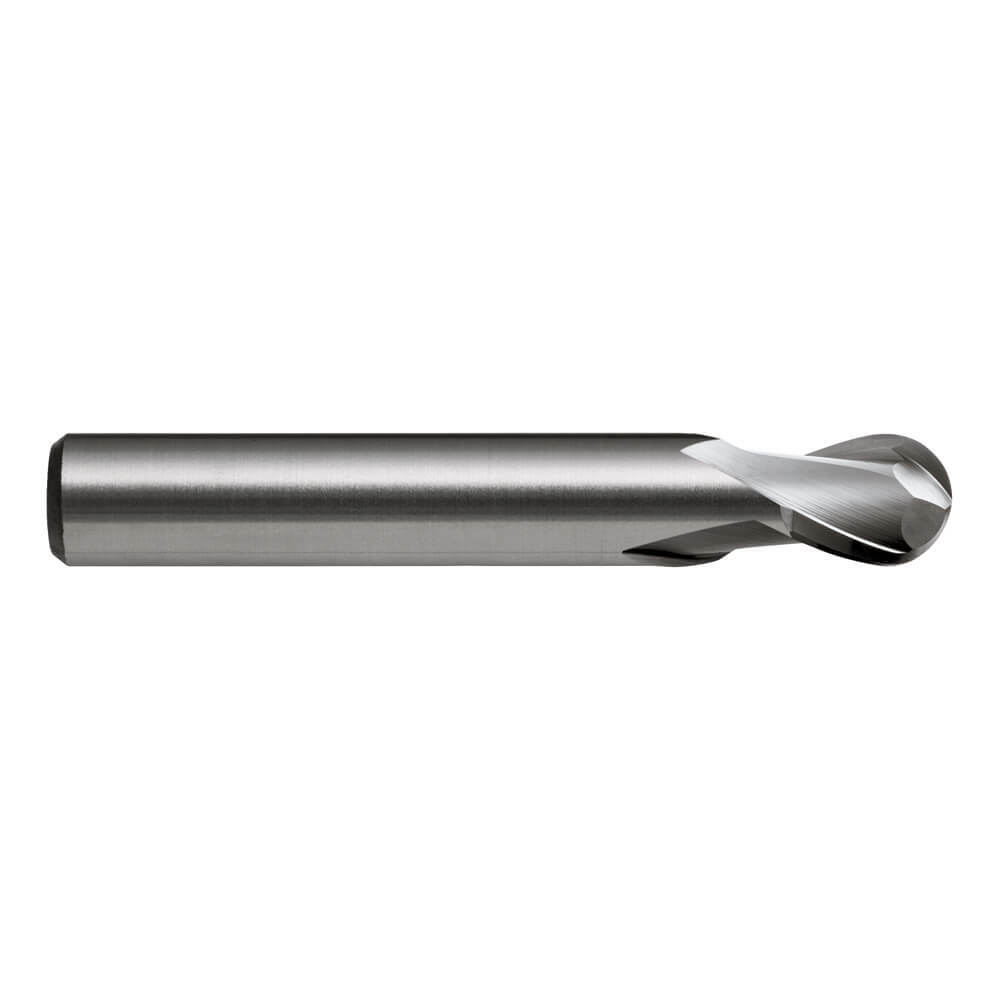

Sutton E4520400 4 x 6mm 2 Flute Ball Nose Slot Drill - Carbide VHM - Short

Description

Description

Slot Drill, Ballnose, 2 Flute, R30, Short

Features

Suitable for materials up to 1600N/mm2
TiAIN for longer tool life

Specifications

Designation: N
Material: VHM
Finish: Bright
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6

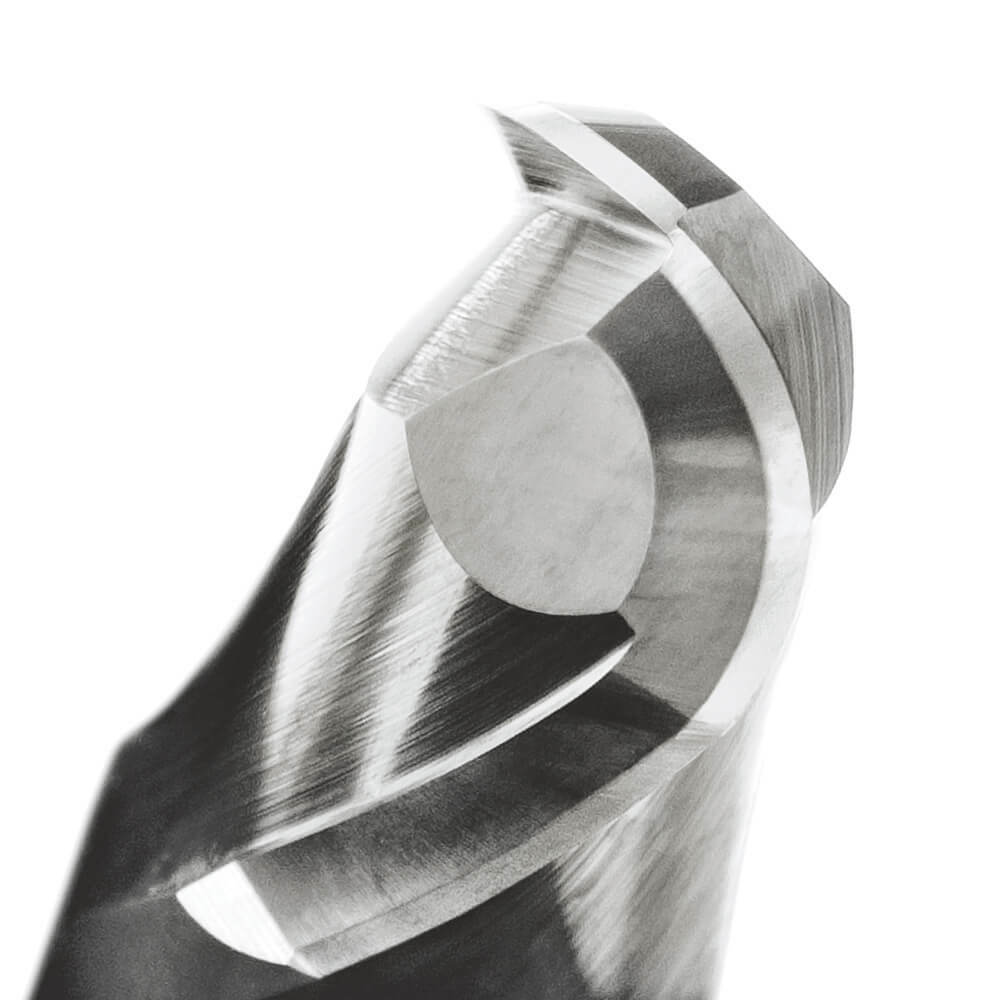

Point Form: Ballnose
Type: N (finishing)
Rake Angle: 12
Standard: DIN6527K

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic – 200 HB
Optimal for Stainless Steel – Austenitic- 180 HB
Optimal for Stainless Steel - Precipitation Hardening- 250 HB

Specifications

AIMS SKU A0009615

Brand Sutton Tools

Model Number E4520400

Barcode Number 9311963565873

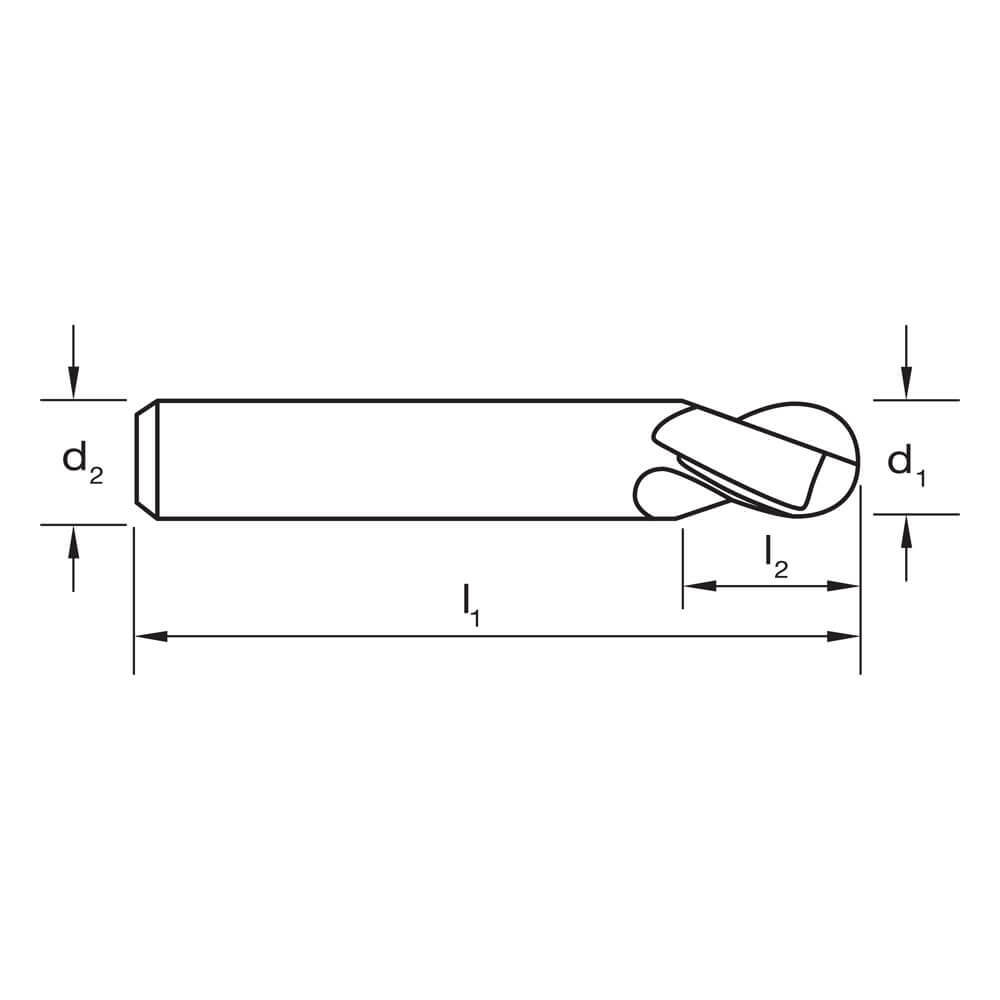

Cutting Tip (mm) 4

Overall Length (mm) 54

Shank (mm) 6

Flute Length (mm) 5

Rad 2

Group Code E452
System of Measurement DIN6527K,Metric
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Bright
Flutes 2 Flute
Profile Ball Nose
Reach Short
Helix Angle R30
Shank Form HA
Shank Tolerance h6
Point Tolerance h10
Item Type N (finishing)
Rake Angle 12
