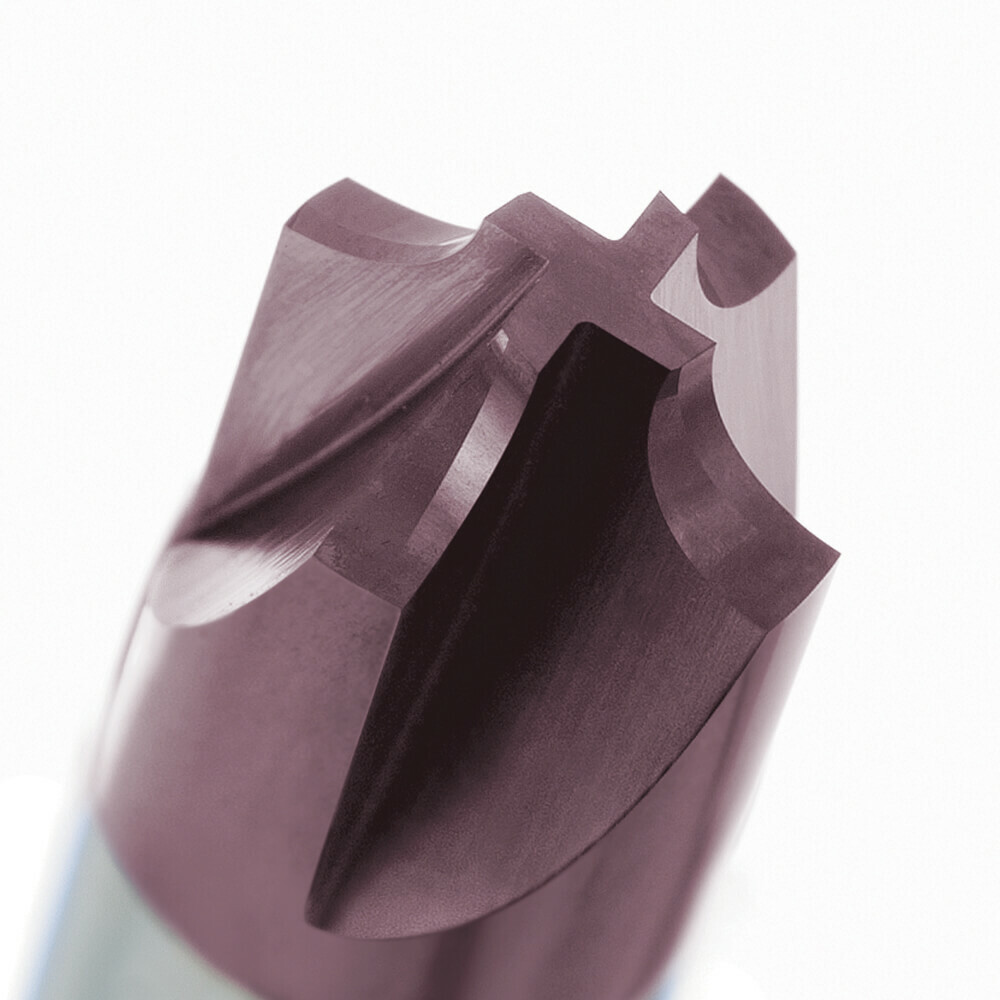

Sutton E4580605 5 x 6mm 4 Flute Chamfer Endmill Corner Radius VHM TiAlN

Description

Description

Endmill, Chamfer, 4 Flute, Corner Rad

Features

Straight flute for smooth cutting
Radius for corner rounding
TiAiN for longer tool life

Specifications

Designation: N
Material: VHM
Finish: TiAIN
Shank Form: HA
Shank Tolerance: h6
Point Form: Corner Radius
Type: N (finishing)
Rake Angle: 0
Standard: Sutton

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic – 200 HB
Optimal for Stainless Steel – Austenitic- 180 HB
Optimal for Stainless Steel – Duplex- 250 HB
Optimal for Stainless Steel - Precipitation Hardening- 250 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Cast Iron, Nodular (GGG) – Pearlitic- 250 HB
Optimal for Cast Iron, Malleable – Ferritic- 130 HB
Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
Optimal for High temperature alloys - Fe based – 200 HB
Optimal for High temperature alloys - Fe based – 280 HB
Optimal for High temperature alloys - Ni / Co based – 250 HB
Optimal for High temperature alloys - Ni / Co based – 350 HB
Optimal for High temperature alloys - Ni / Co based – 320 HB
Optimal for Titanium & Titanium alloys – CP Titanium
Optimal for Titanium & Titanium alloys - Alpha alloys
Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
Optimal for Titanium & Titanium alloys - Beta alloys
Optimal for Hardened Steel – 45 HRC
Optimal for Cast Iron – Chilled – 400 HB

Specifications

AIMS SKU A0009631

Brand Sutton Tools

Model Number E4580605

Barcode Number 9311963566306

Cutting Tip (mm) 5

Overall Length (mm) 57

Shank (mm) 6

Rad 0.5

Group Code E458
System of Measurement Metric
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Titanium Aluminium Nitride (TiAIN)
Flutes 4 Flute
Profile Corner Radius
Shank Form HA
Shank Tolerance h6
Item Type N (finishing)
Rake Angle 0
