Description

Descriptions

  • Suitable for slotting, side cutting and finishing applications with the one tool
  • Optimized geometry with variable helix design ensures high productivity
  • Excellent solution for stainless steels & difficult super alloy type materials

Features

  • VHM-ULTRA grade of carbide for high performance
  • HELICA for outstanding oxidation resistance and hot hardness
  • The end-teeth geometry has high relief & chip space to enable an efficient process, without the need to drill a hole

Specifications

  • Designation: VA
  • Material: VHM-ULTRA
  • Finish: Helica
  • Shank Form: HA
  • Helix Angle: R40/42
  • Point Tolerance: e8
  • Shank Tolerance: h6
  • Point Form: Corner Radius
  • Type: N (finishing)
  • Rake Angle: 12
  • Standard: DIN6527L

Applications

  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Stainless Steel - Precipitation Hardening- 250 HB
  • Optimal for High temperature alloys - Fe based – 280 HB
  • Optimal for High temperature alloys - Ni / Co based – 350 HB
  • Optimal for High temperature alloys - Ni / Co based – 320 HB
  • Optimal for Titanium & Titanium alloys - Alpha alloys
  • Optimal for Titanium & Titanium alloys - Alpha / Beta alloys

Specifications

  • AIMS SKU A0009650
  • Brand Sutton Tools
  • Model Number E4620603
  • Barcode Number 9311963595023
  • Cutting Tip (mm) 6
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 13
  • D3 (mm) 5.5
  • Rad 0.3
  • L3 (mm) 21
  • Group Code E462
  • System of Measurement DIN6527L,Metric
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Helica
  • Flutes 4 Flute
  • Profile Corner Radius
  • Reach Long
  • Helix Angle R40/42
  • Shank Form HA
  • Shank Tolerance h6
  • Point Tolerance e8
  • Item Type N (finishing)
  • Rake Angle 12
SKU: A0009650

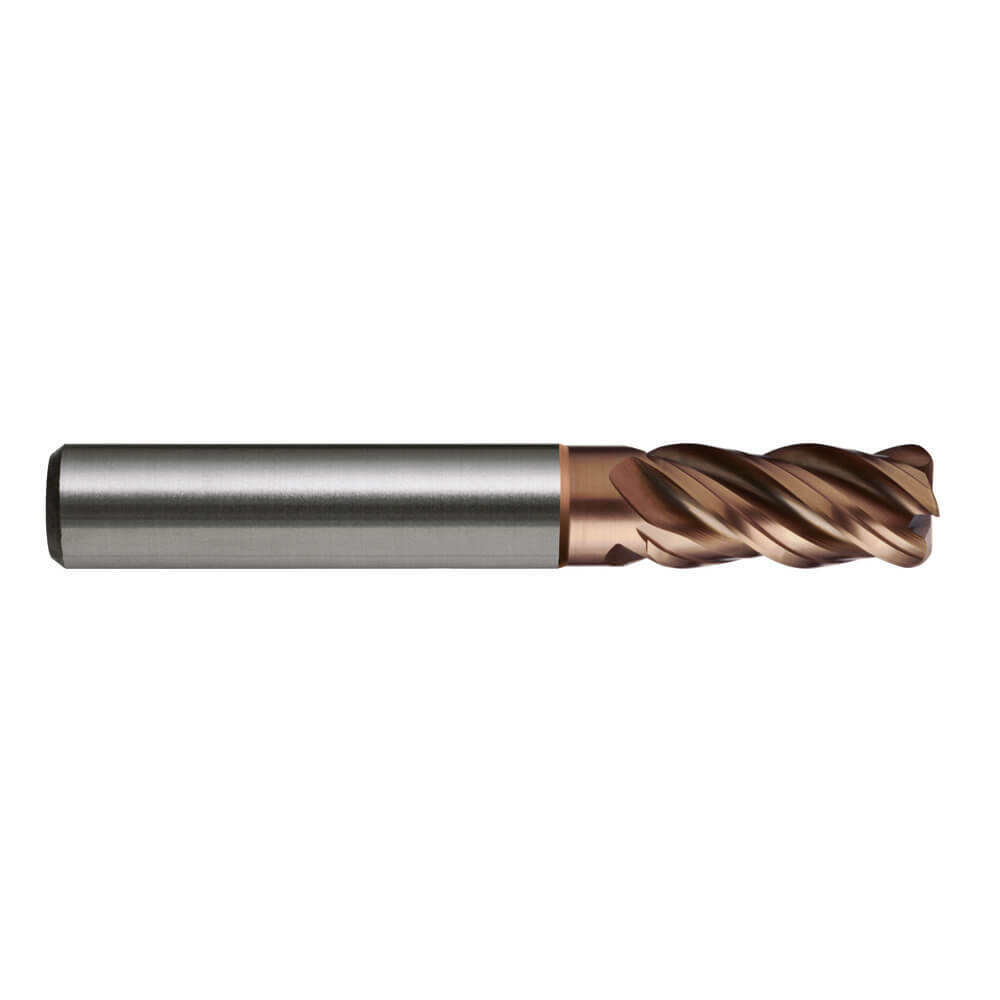

Sutton E4620603 6 x 6mm 4 Flute Corner Radius Endmill VHM Helica Long

4 Flute Endmills - R40/42 VA - Corner Radius - Harmony

$58.61
