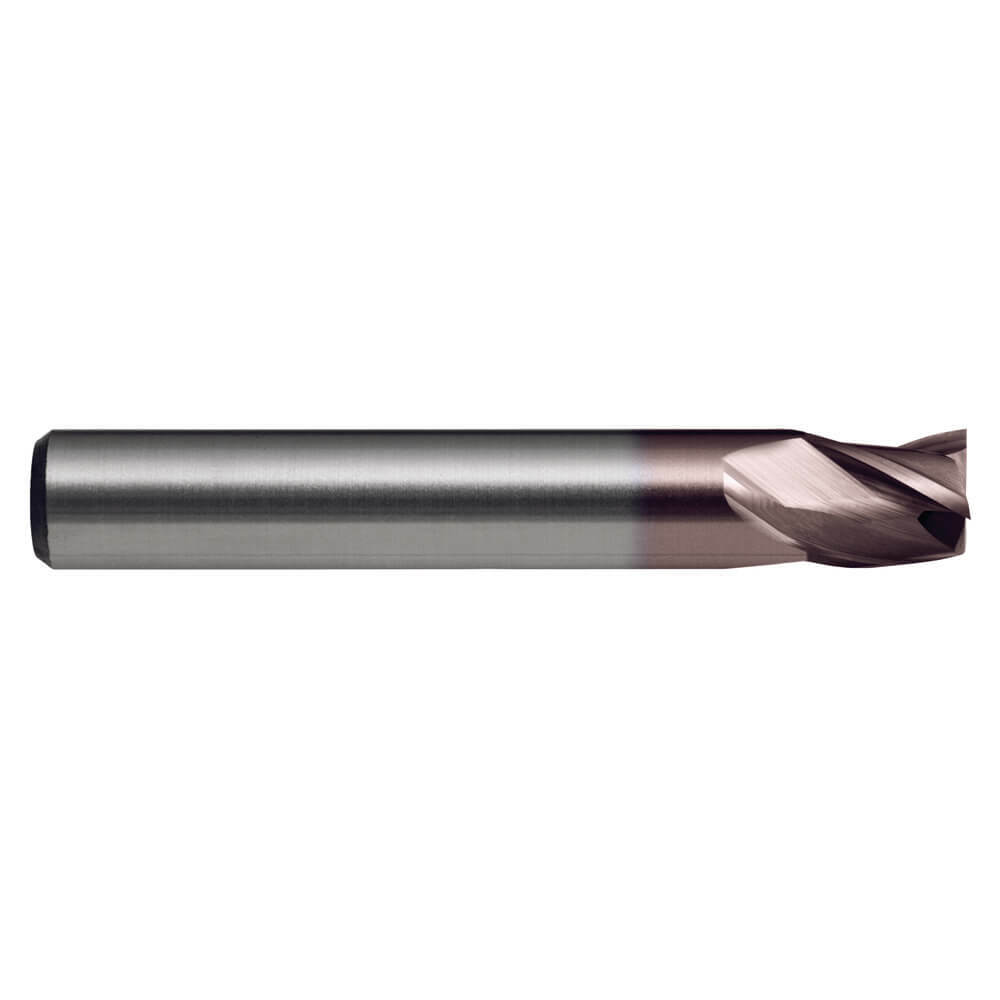

Description

• Universal use for slotting and finishing with the one tool

Features

• Suitable for materials up to 1600 N/mm2
• AlCrN for longer tool life

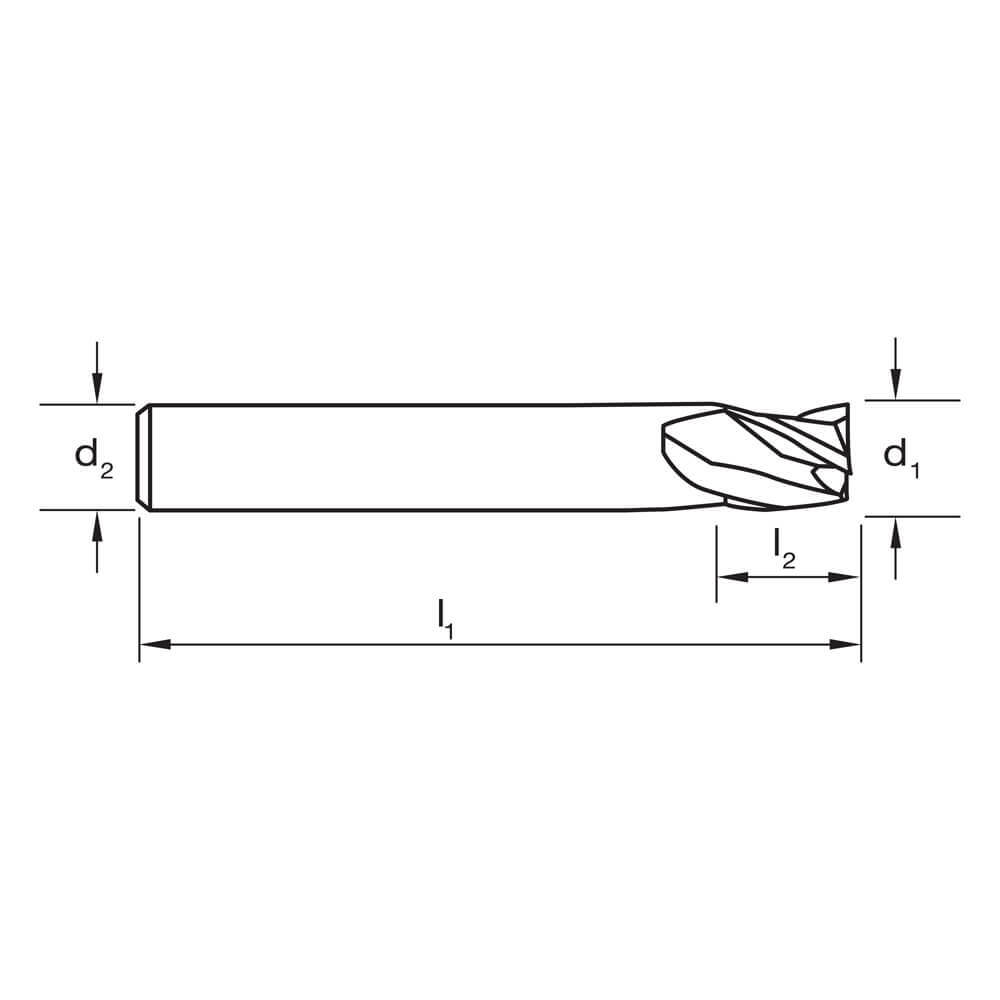

Specifications

• Designation: N
• Material: VHM
• Finish: TiAIN
• Shank Form: HA
• Helix Angle: R30
• Point Tolerance: h10
• Shank Tolerance: h6

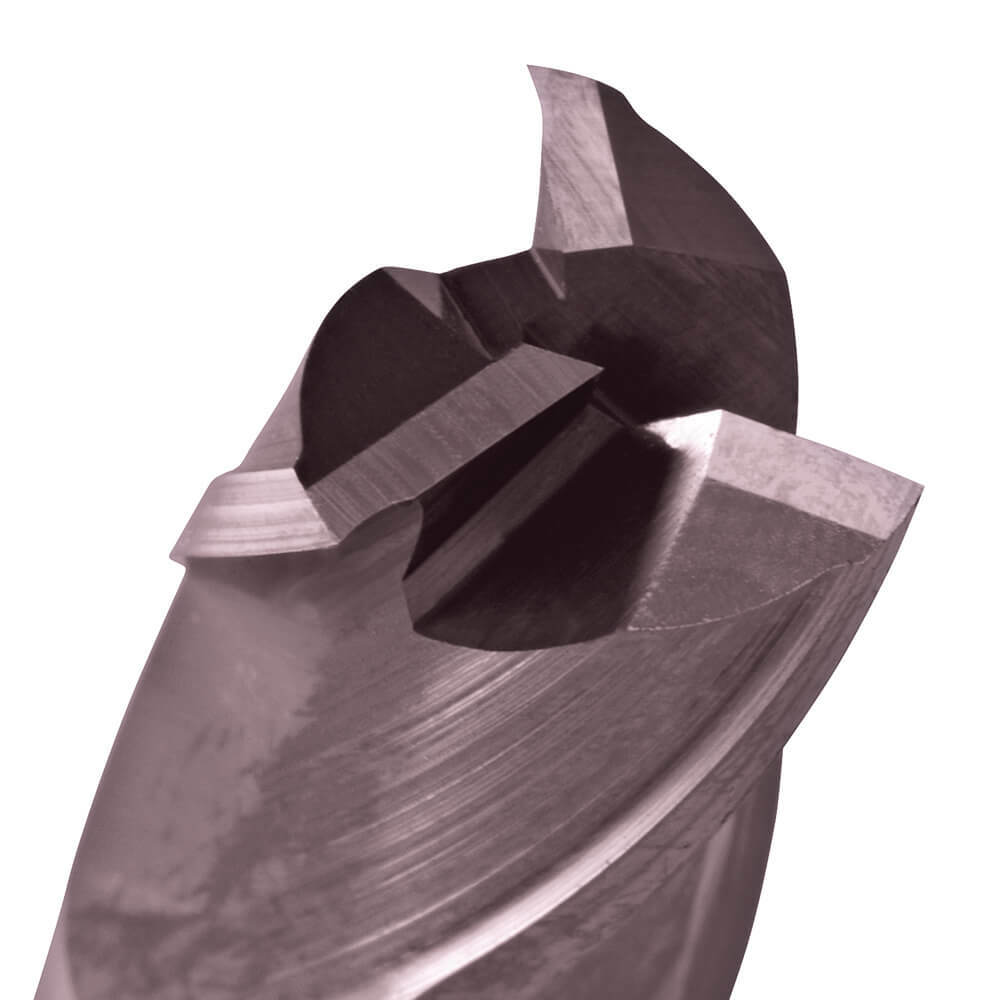

• Point Form: Square End
• Type: N (finishing)
• Rake Angle: 12
• Standard: DIN6527K

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
• Optimal for Steel - High alloy, cast & tool- 200 HB
• Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic – 200 HB
• Optimal for Steel - Corrosion resistant & cast - Martensitic – 240 HB
• Optimal for Stainless Steel – Austenitic- 180 HB
• Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
• Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
• Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
• Optimal for Cast Iron, Nodular (GGG) – Pearlitic- 250 HB
• Optimal for Cast Iron, Malleable – Ferritic- 130 HB
• Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
