Description

Description

  • Endmill, 4 Flute, R35/38 UNI, Short, Harmony for high performance

Features

  • VHM-ULTRA grade of carbide for high performance
  • 35/38° variable flute helix for chatter free milling
  • Suitable for materials up to 1600 N/mm2
  • AlCrN for longer tool life

Specifications

  • Designation: UNI
  • Material: VHM-ULTRA
  • Finish: AlCrN
  • Shank Form: HA
  • Helix Angle: R35/38
  • Point Tolerance: h9
  • Shank Tolerance: h6

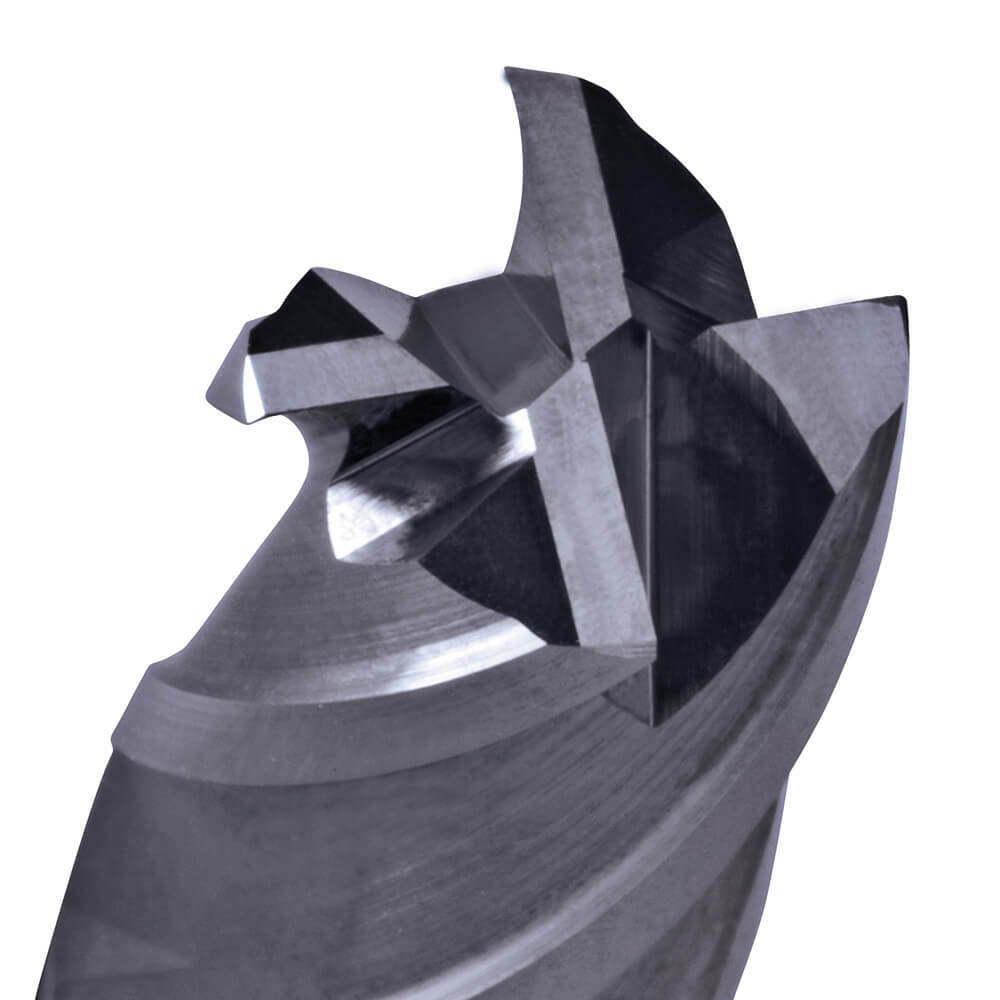

  • Point Form: 45° Corner Chamfer
  • Type: N (finishing)
  • Rake Angle: 6
  • Standard: DIN6527K

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
  • Optimal for Cast Iron – Chilled – 400 HB

Specifications

  • AIMS SKU A0009769
  • Brand Sutton Tools
  • Model Number E5330600
  • Barcode Number 9311963503851

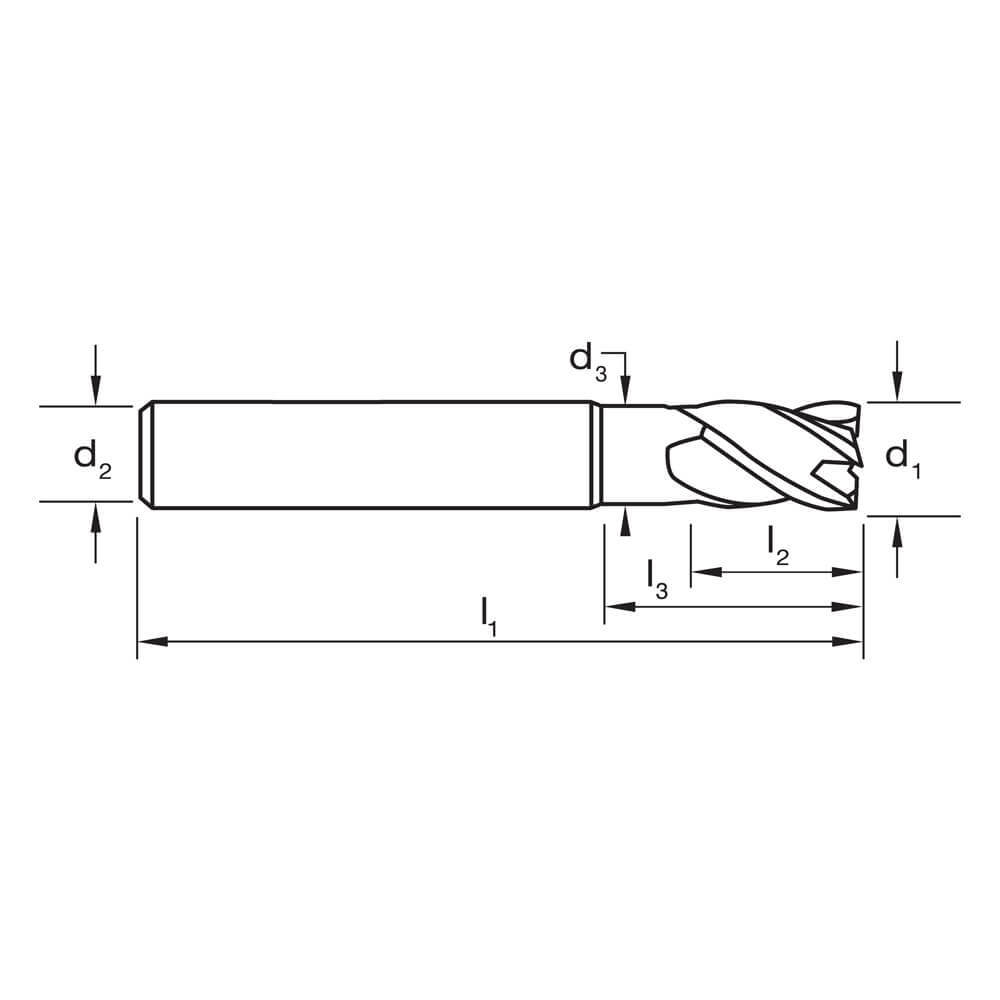

  • Cutting Tip (mm) 6
  • Overall Length (mm) 54
  • Shank (mm) 6
  • Flute Length (mm) 10
  • D3 (mm) 5.5
  • L3 (mm) 18
  • Group Code E533
  • System of Measurement DIN6527K,Metric
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Aluminium Chromium Nitride (AlCrN)
  • Flutes 4 Flute
  • Profile 45 degree Corner Chamfer
  • Reach Short
  • Helix Angle R35/38
  • Shank Form HA
  • Shank Tolerance h6
  • Point Tolerance h9
  • Item Type N (finishing)
  • Rake Angle 6
SKU: A0009769

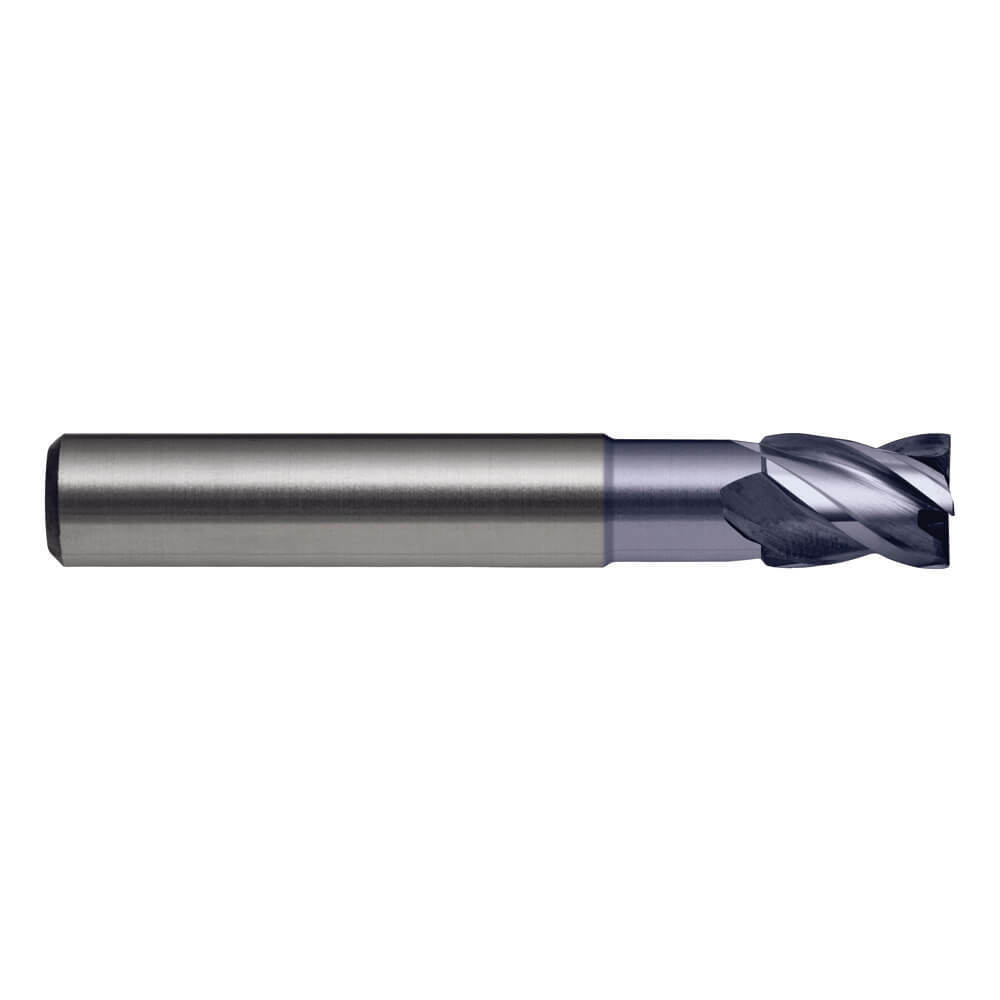

Sutton E5330600 6 x 6mm 4 Flute Endmill - Carbide VHM Ultra AlCrN - Short

Sutton 4 Flute Endmills - R35/38 UNI - Short - Harmony

$30.89
