Description

Description

  • For roughing applications

Features

  • VHM-ULTRA grade of carbide for high performance

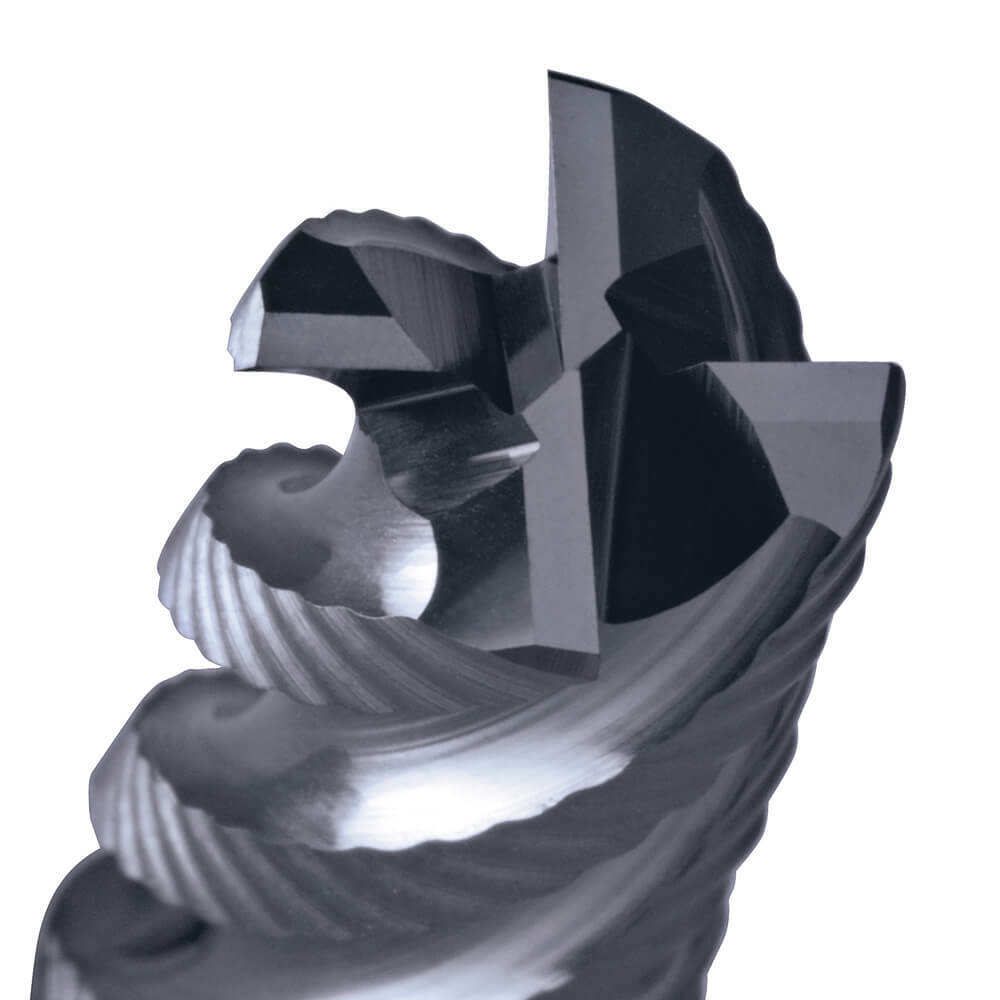

  • HRS geometry allows for heavy cuts in short & long chipping materials
  • Suitable for materials up to 1600 N/mm2
  • AlCrN for longer tool life

Specifications

  • Designation: UNI
  • Material: VHM-ULTRA
  • Finish: AlCrN
  • Shank Form: HA
  • Helix Angle: R45
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: 45° Corner Chamfer
  • Type: HRS (fine pitch)
  • Rake Angle: 5
  • Standard: DIN6527L

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB

Specifications

  • AIMS SKU A0009808
  • Brand Sutton Tools
  • Model Number E5490400
  • Barcode Number 9311963504834

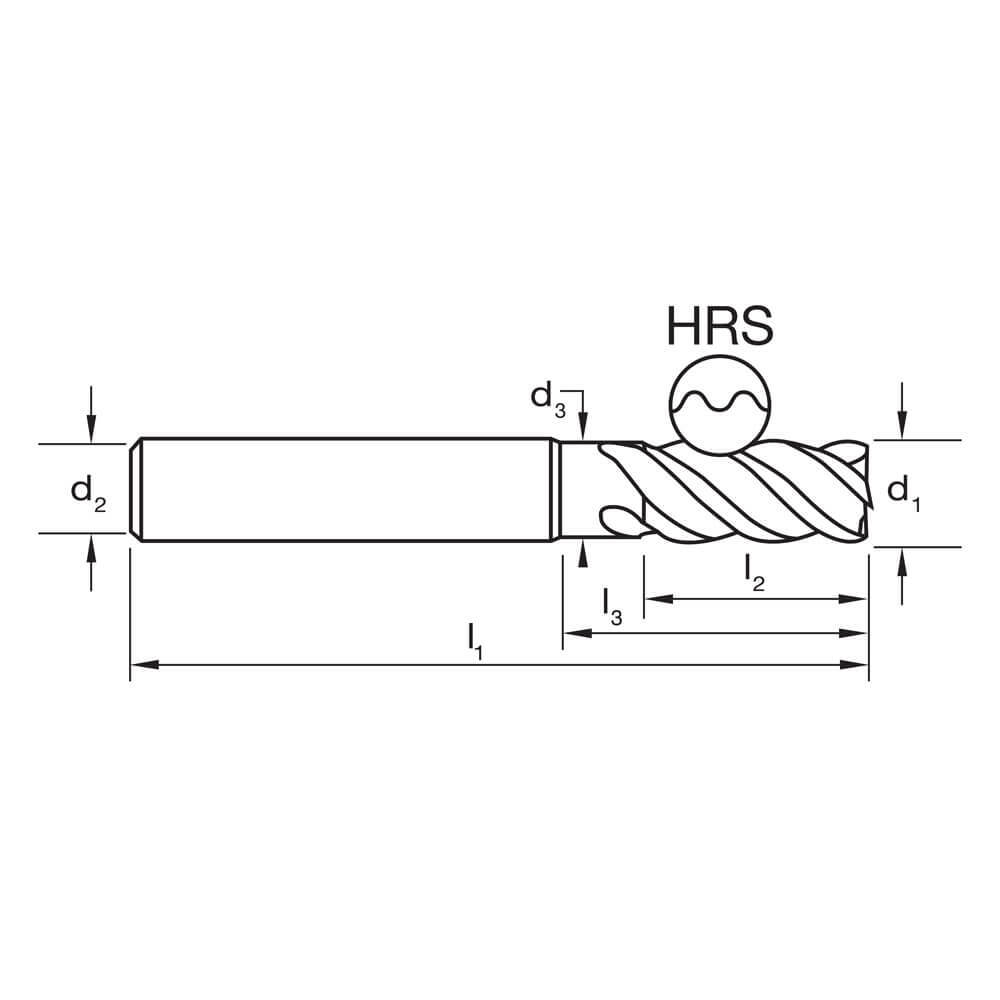

  • Cutting Tip (mm) 4
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 11
  • D3 (mm) 3.7
  • No. Of Flutes 3
  • L3 (mm) 28
  • Group Code E549
  • System of Measurement DIN6527L,Metric
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Aluminium Chromium Nitride (AlCrN)
  • Flutes 3 Flute
  • Profile 45 degree Corner Chamfer
  • Reach Regular
  • Helix Angle R45
  • Shank Form HA
  • Shank Tolerance h6
  • Point Tolerance h10
  • Item Type HRS (fine pitch)
  • Rake Angle 5
SKU: A0009808

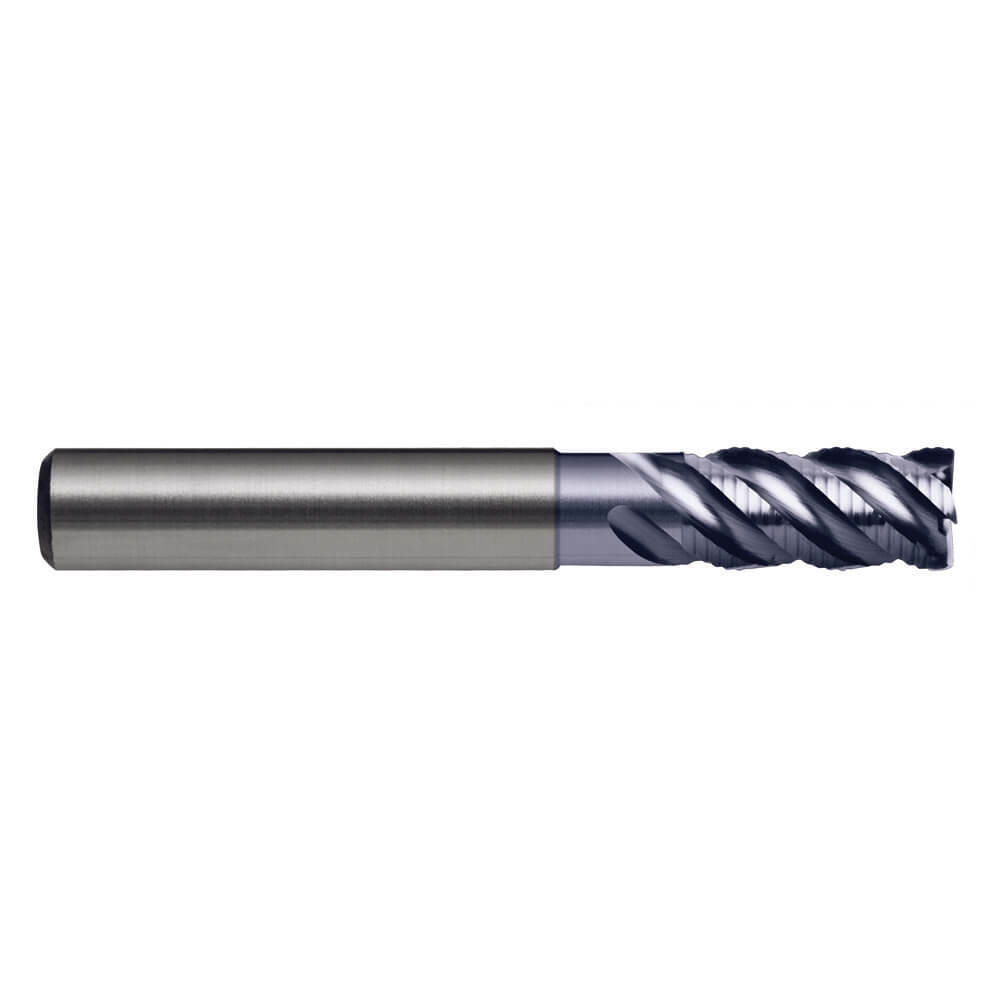

Sutton E5490400 4 x 6mm 3 Flute Roughing Endmill VHM Ultra AlCrN Regular

Roughers - HRS (fine) - R45 UNI - Regular - Harmony

$39.11
