Specifications

AIMS SKU A0009925
Brand Sutton Tools
Model Number E5680610
Barcode Number 9311963545813

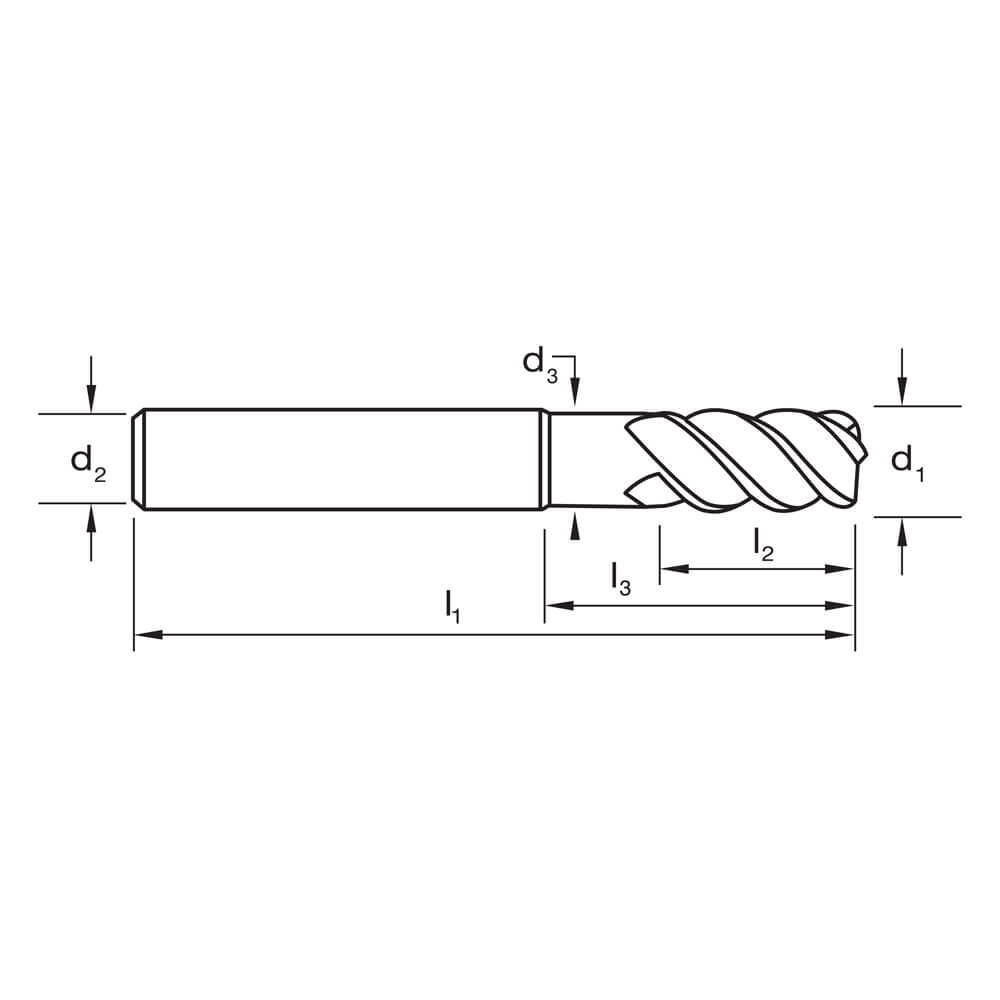

Cutting Tip (mm) 6
Overall Length (mm) 57
Shank (mm) 6
Flute Length (mm) 13
D3 (mm) 5.5
Rad 1.0
L3 (mm) 21
• Group Code E568
• System of Measurement DIN6527L,Metric
• Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
• Finish Aldura
• Flutes 4 Flute
• Profile Corner Radius
• Helix Angle R50
• Shank Form HA
• Shank Tolerance h6
• Point Tolerance h10
• Item Type N (finishing)
• Rake Angle 14
