Specifications
- AIMS SKU A0129486
- Brand Sutton Tools
- Model Number E5720476
- System of Measurement DIN6527L
- Cutting Tip (inch) 0.1875
- Profile Corner Radius
- Overall Length (inch) 2
- Shank (inch) 0.1875
- Shank Form HA
- Shank Tolerance h6
- Rake Angle 6
- Corner Chamfer (inch) 0.002"
- Flute Length (inches) 0.4375
- Product Group B0210
- Geometry R35/38
- Group Code E572
- System of Measurement DIN6527L,Imperial
- Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
- Finish Aluminium Chromium Nitride (AlCrN)
- Flutes 4 Flute
- Profile Corner Radius
- Reach Regular
- Helix Angle R35/38
- Shank Form HA
- Shank Tolerance h6
- Point Tolerance e8
- Item Type N (finishing)
- Rake Angle 6
SKU: A0129486

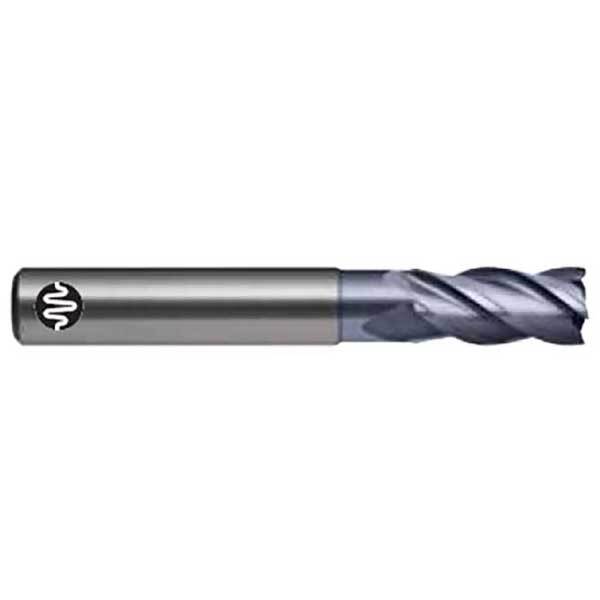

Sutton E5720476 3/16 x 2" 4 Flute Corner Radius Endmill Carbide AlCrN
4 Flute Endmills - R35/38 UNI - Regular - Harmony
$74.58
