Description

Descriptions

  • For profile & contour milling in long reach applications

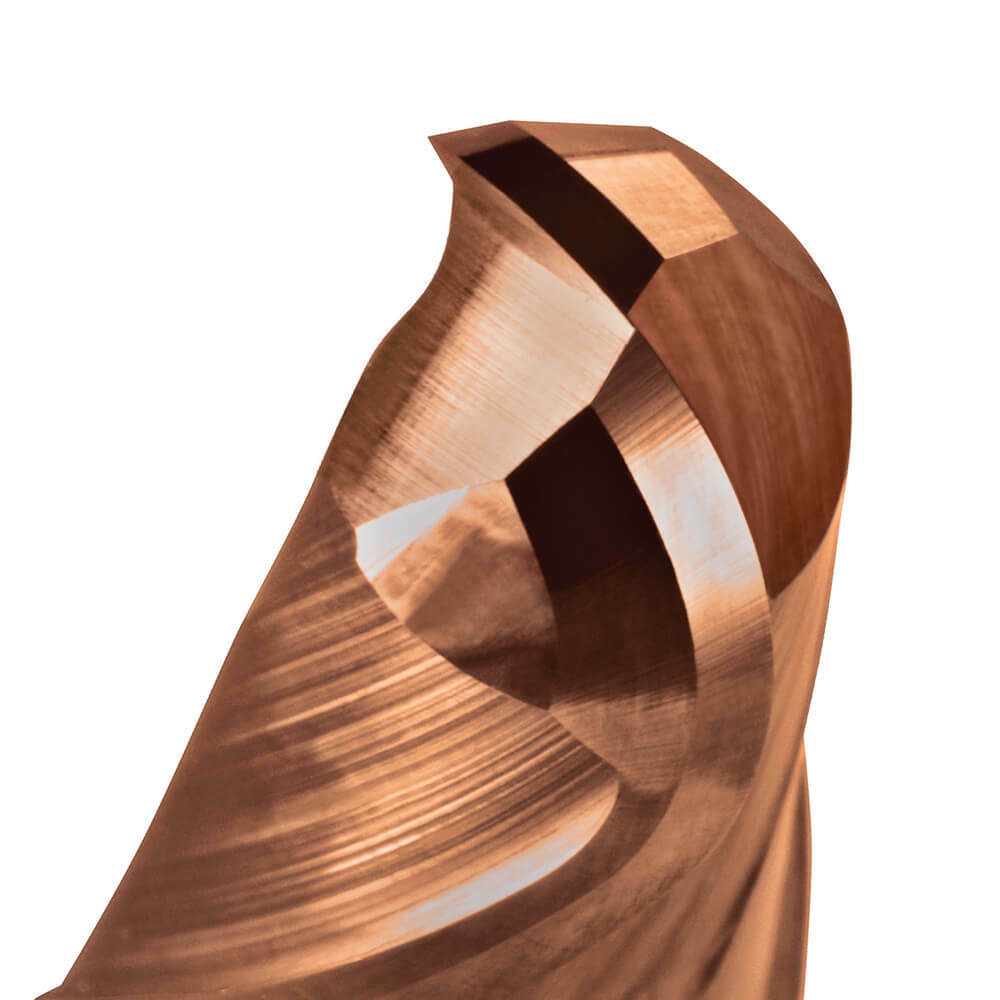

  • Micro Endmill Ballnose

Features

  • Suitable for materials up to 35-52 HRC
  • TiSiN for high speed machining

Specifications

  • Designation: NH
  • Material: VHM
  • Finish: TiSiN
  • Shank Form: HA
  • Helix Angle: R30
  • Point Tolerance: 0 / -0.020
  • Shank Tolerance: h6
  • Point Form: Ballnose
  • Type: N (finishing)
  • Rake Angle: 10-12
  • Standard: Sutton

Applications

  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
  • Optimal for Steel - High alloy, cast & tool- 325 HB
  • Optimal for Stainless Steel - Precipitation Hardening – 250 HB
  • Optimal for High temperature alloys - Ni / Co based – 350 HB
  • Optimal for High temperature alloys - Ni / Co based – 320 HB
  • Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
  • Optimal for Titanium & Titanium alloys - Beta alloys
  • Optimal for Hardened Steel – 45 HRC

Specifications

  • AIMS SKU A0010052
  • Brand Sutton Tools
  • Model Number E5820021
  • Barcode Number 9311963592787

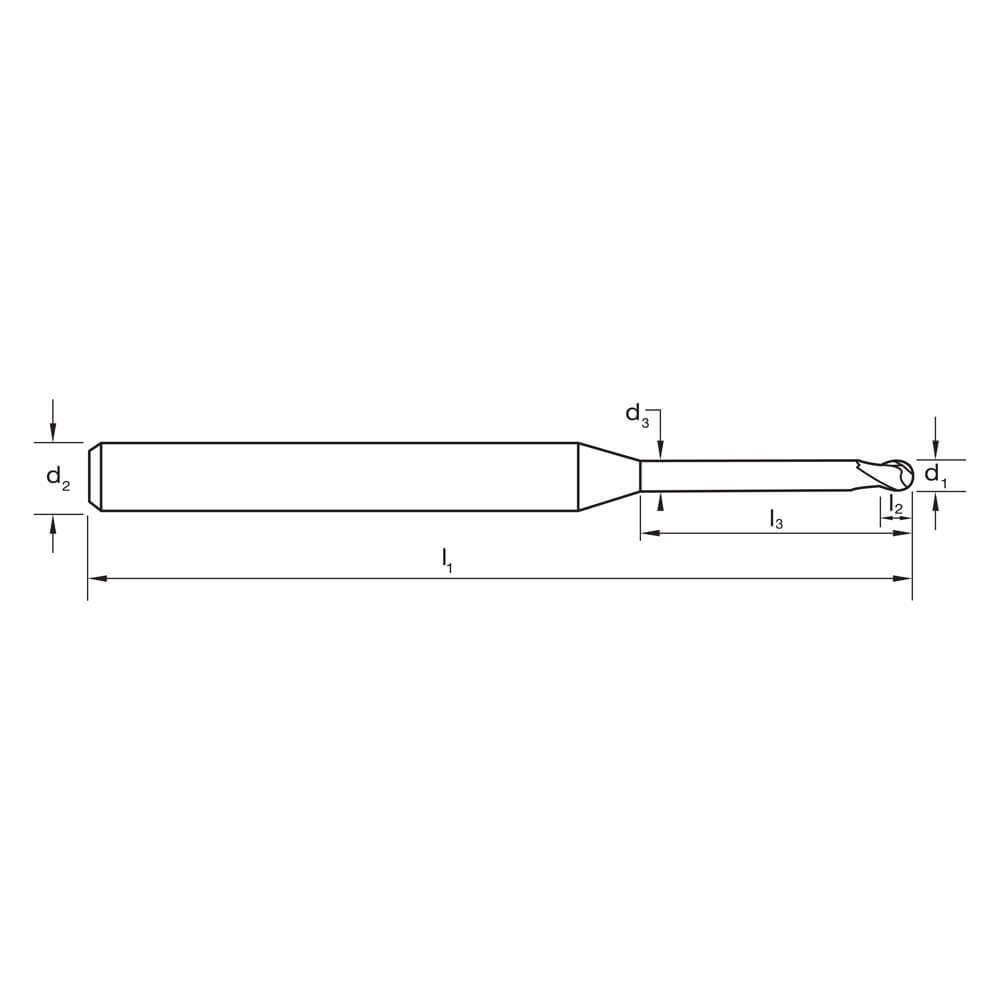

  • Cutting Tip (mm) 0.2
  • Overall Length (mm) 50
  • Shank (mm) 4
  • Flute Length (mm) 0.2
  • D3 (mm) 0.15
  • Rad 0.1
  • L3 (mm) 0.5
  • Group Code E582
  • System of Measurement Metric
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Titanium Slicon Nitride (TiSiN)
  • Flutes 2 Flute
  • Profile Ball Nose
  • Reach Long Reach
  • Helix Angle R30
  • Shank Form HA
  • Shank Tolerance h6
  • Point Tolerance 0 / -0.020
  • Item Type N (finishing)
  • Rake Angle 10-12
SKU: A0010052

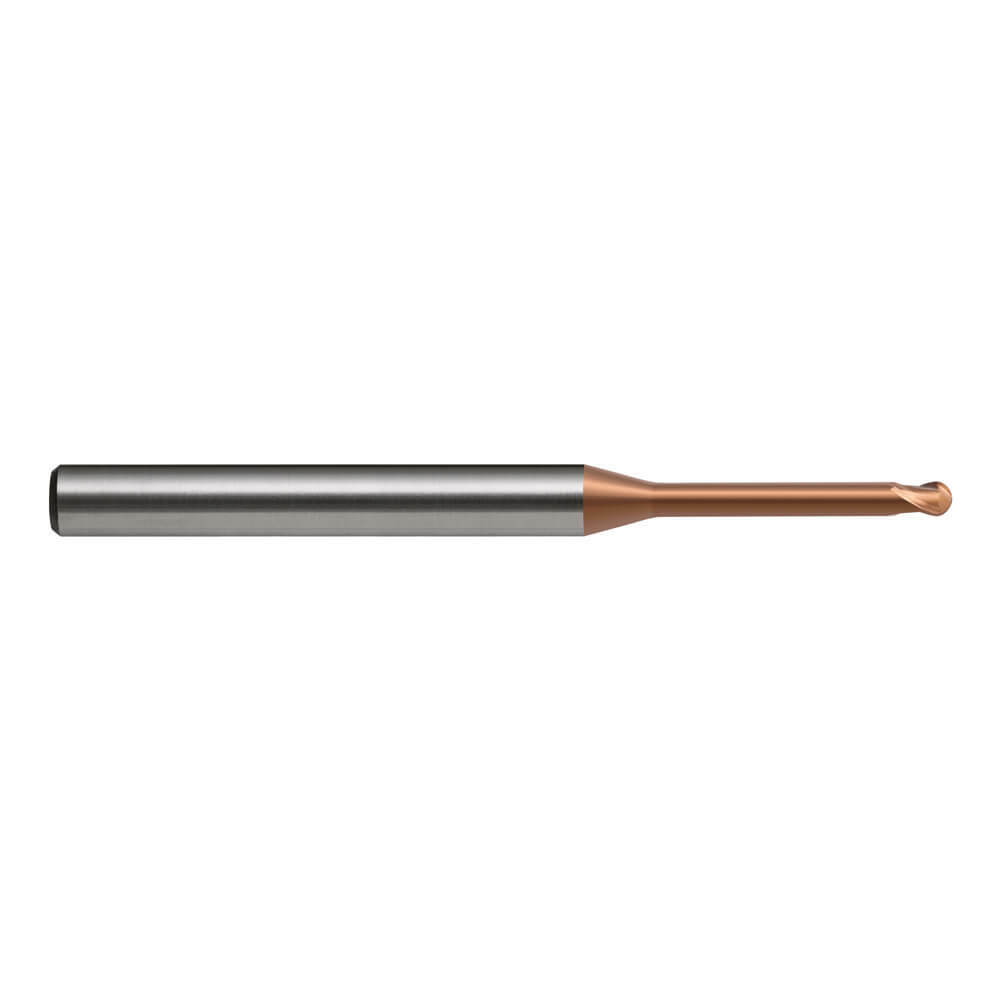

Sutton E5820021 0.2 x 4mm 2 Flute Ball Nose Micro Endmill VHM Ultra TiSiN

Sutton Tools Micro Endmills - R40 NH - Ball Nose

$129.36
