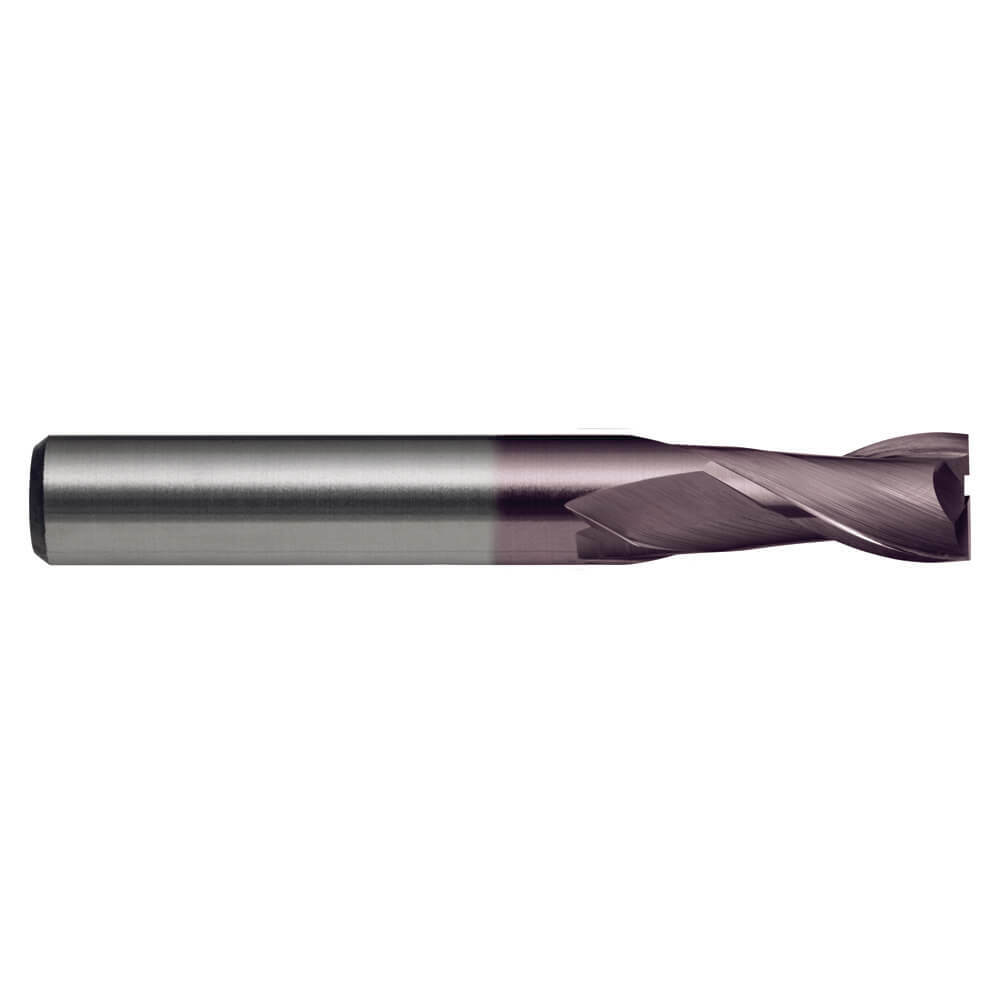

Sutton E603 Metric 2 Flute Endmill - Carbide VHM TiAlN - Regular - Sutton Tools

Description

Description

For precision milling of slots & cavities

Features

2 Flute Slot Drill R30 N
Suitable for materials up to 1600 N/mm2
TiAIN for longer tool life

Specifications

Designation: N
Material: VHM
Finish: Bright
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - High alloy, cast & tool- 200 HB

Specifications

AIMS SKU A0010151

Brand Sutton Tools

Model Number E6030100

Barcode Number 9311963516981

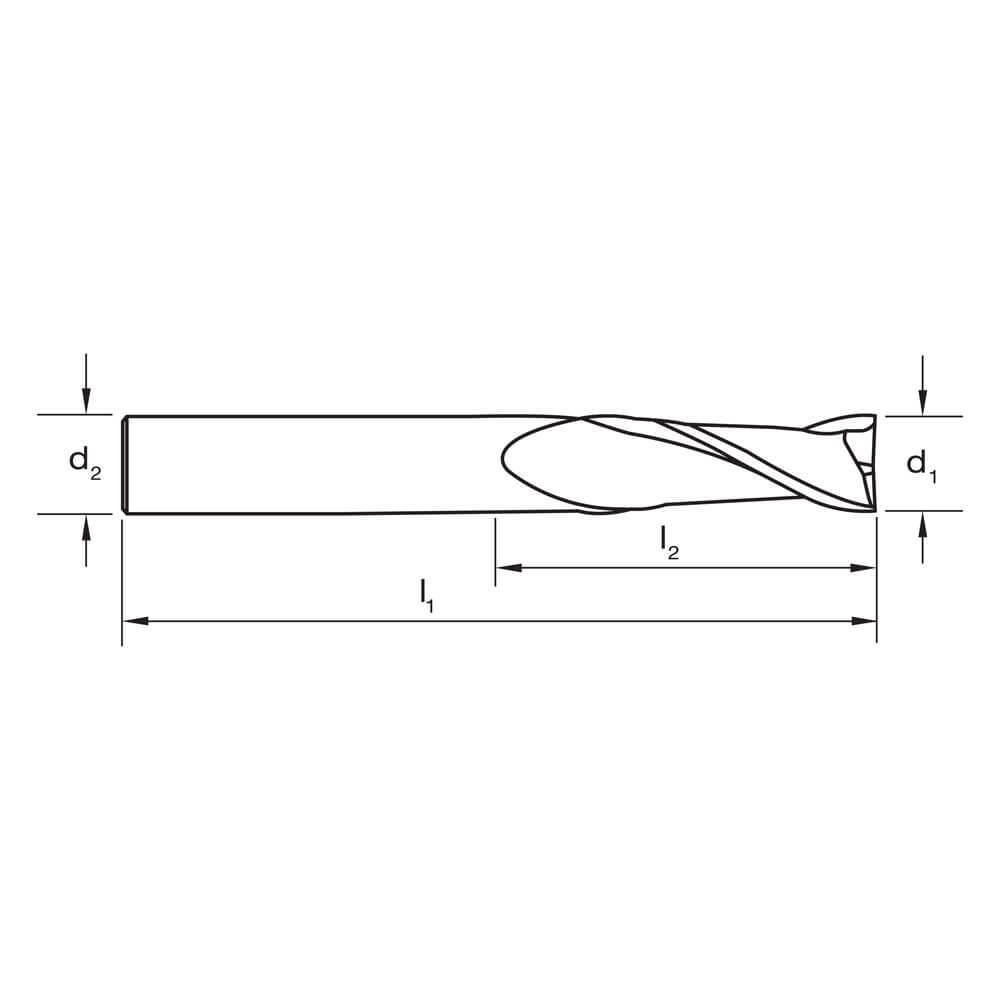

Cutting Tip (mm) 1

Overall Length (mm) 38

Shank (mm) 3

Flute Length (mm) 4

Group Code E603
System of Measurement Metric
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Titanium Aluminium Nitride (TiAIN)
Flutes 2 Flute
Profile Square End
Reach Regular
Helix Angle R30
Shank Form HA
Shank Tolerance h6
Point Tolerance h10
Item Type N (finishing)
Rake Angle 12
