Description

Description

  • For profile & contour milling applications

Features

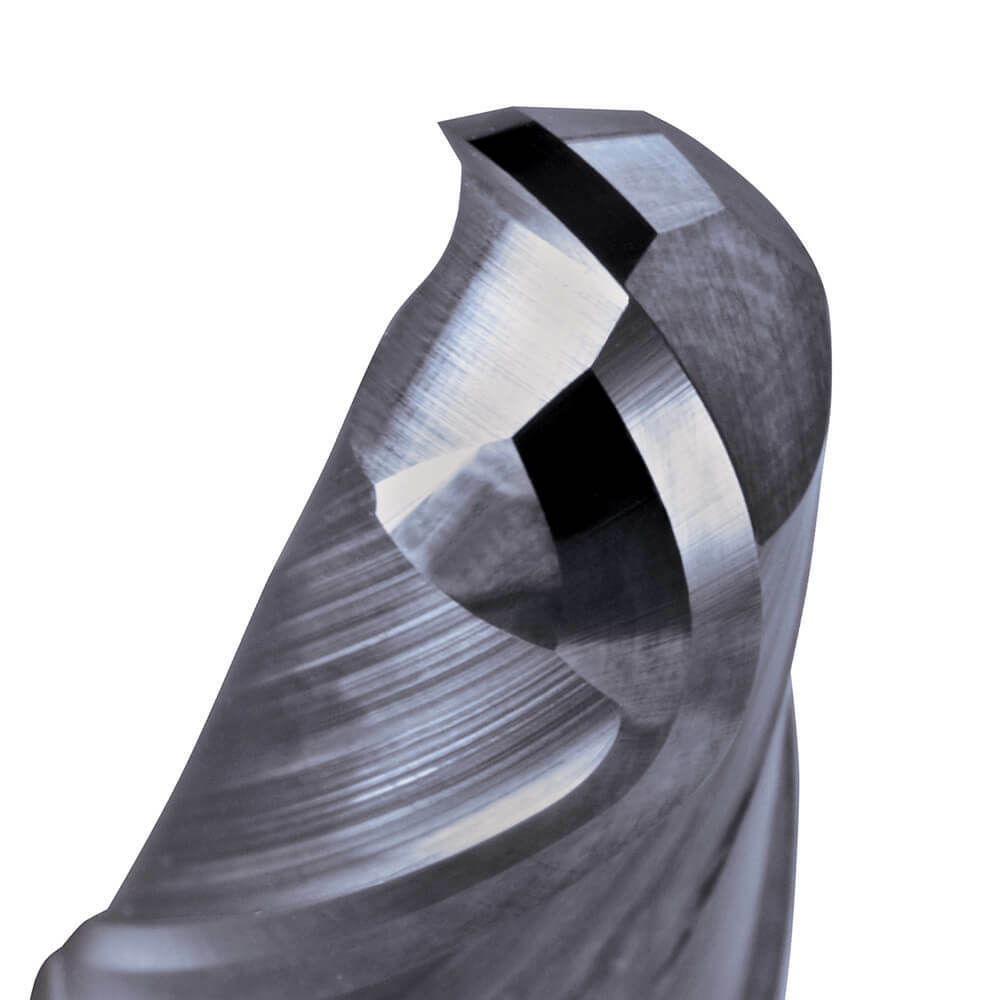

  • Ballnose Slot Drill 2 Flute
  • Suitable for materials up to 1600 N/mm2
  • TiAIN for longer tool life

Specifications

  • Designation: N
  • Material: VHM
  • Finish: TiAIN
  • Shank Form: HA
  • Helix Angle: R30
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: Ballnose
  • Type: N (finishing)
  • Rake Angle: 12
  • Standard: Sutton

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB

Specifications

  • AIMS SKU A0010193
  • Brand Sutton Tools
  • Model Number E6050100
  • Barcode Number 9311963517407

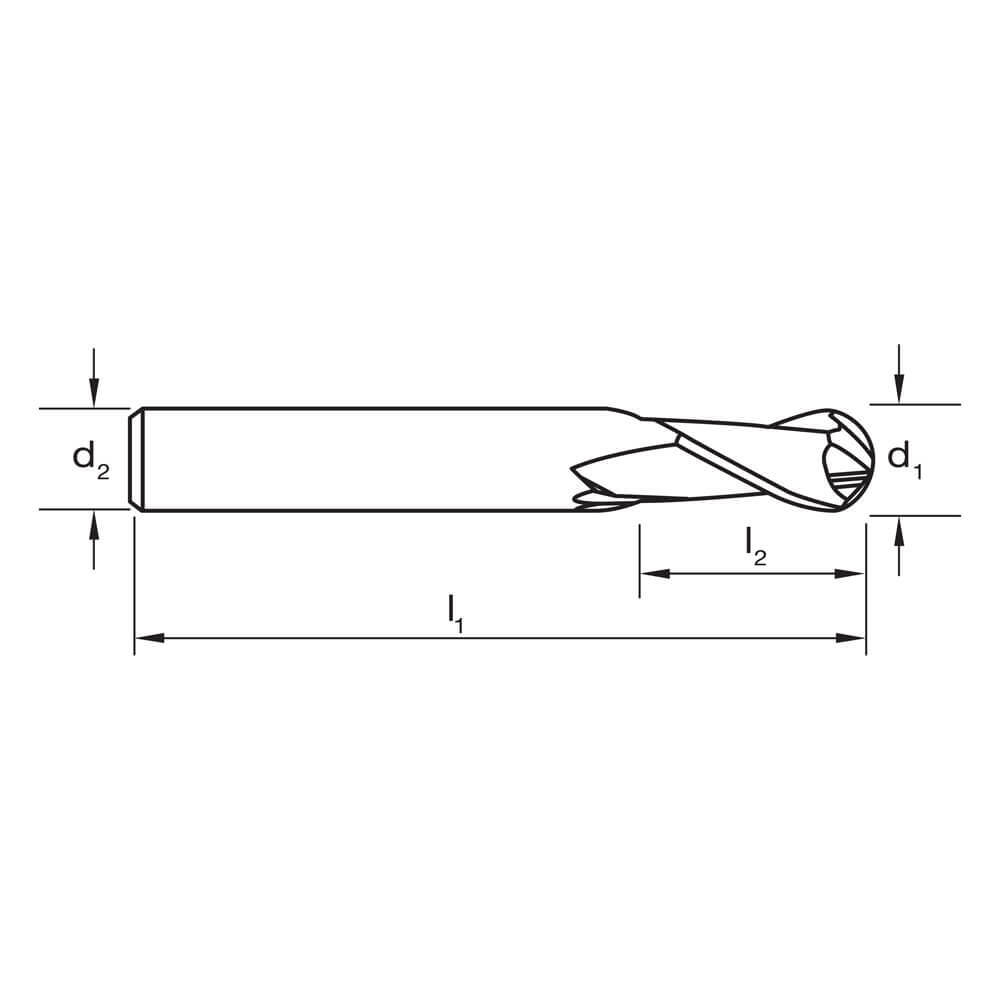

  • Cutting Tip (mm) 1
  • Overall Length (mm) 38
  • Shank (mm) 3
  • Flute Length (mm) 4
  • Group Code E605
  • System of Measurement Metric
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Flutes 2 Flute
  • Profile Ball Nose
  • Reach Regular
  • Helix Angle R30
  • Shank Form HA
  • Shank Tolerance h6
  • Point Tolerance h10
  • Item Type N (finishing)
  • Rake Angle 12
SKU: A0010193

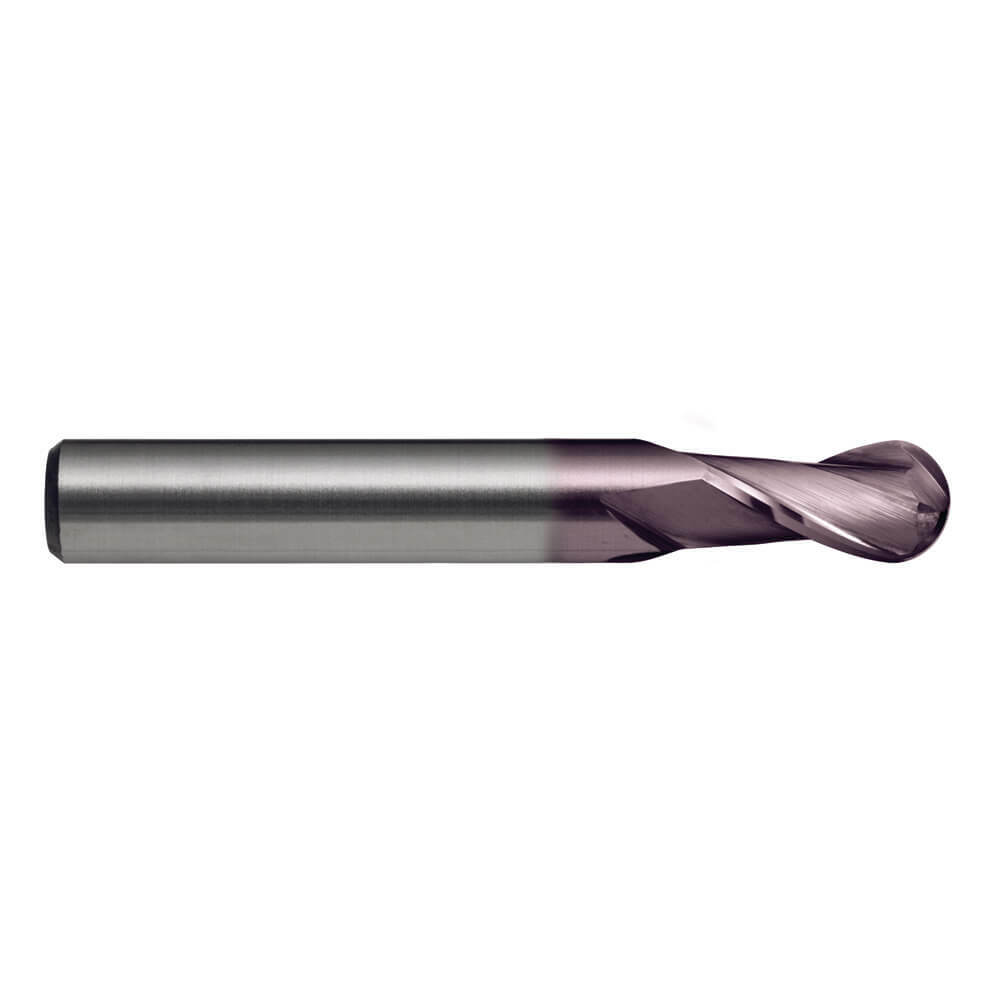

Sutton E6050100 1 x 3mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

2 Flute Ballnose Slot Drills - R30 N - Regular - Tecline

$23.27
