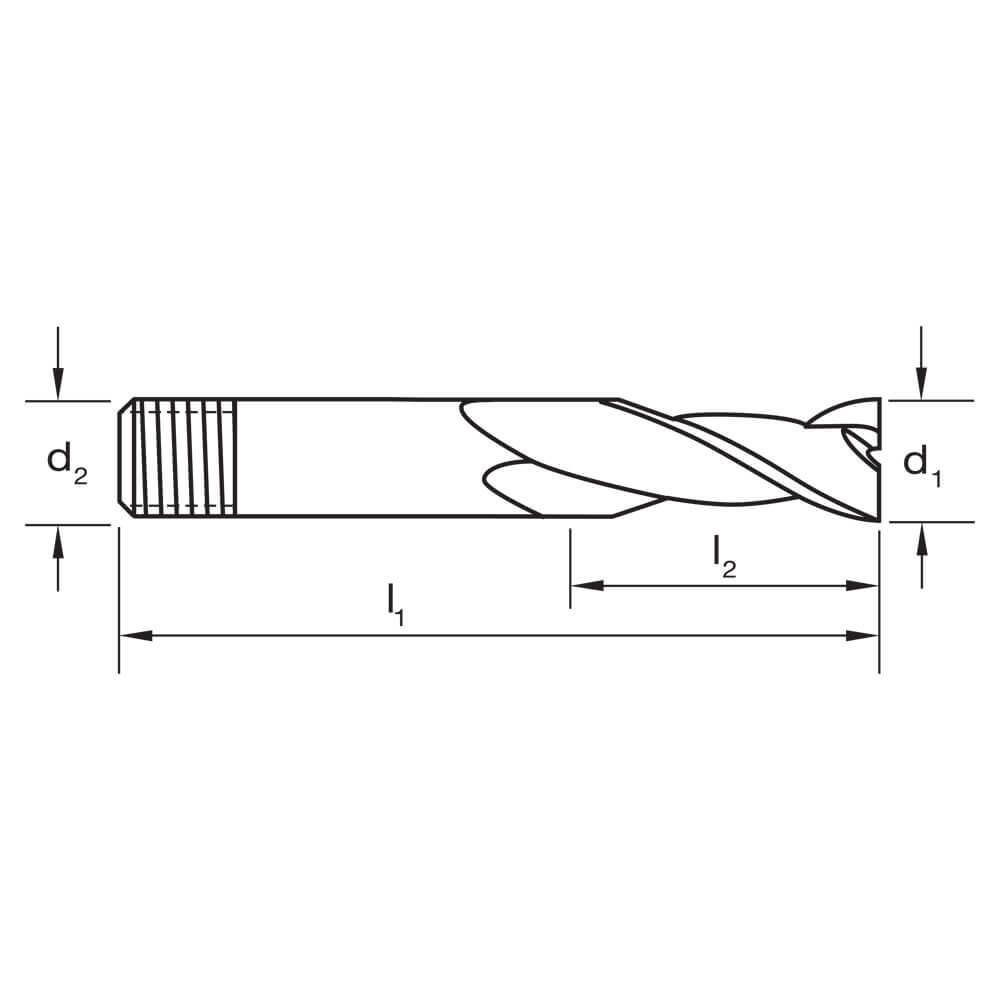

Dimensions

• D1: 6
• L1: 56.5
• L2: 11
• D2: 6
• Z: 2

 Features

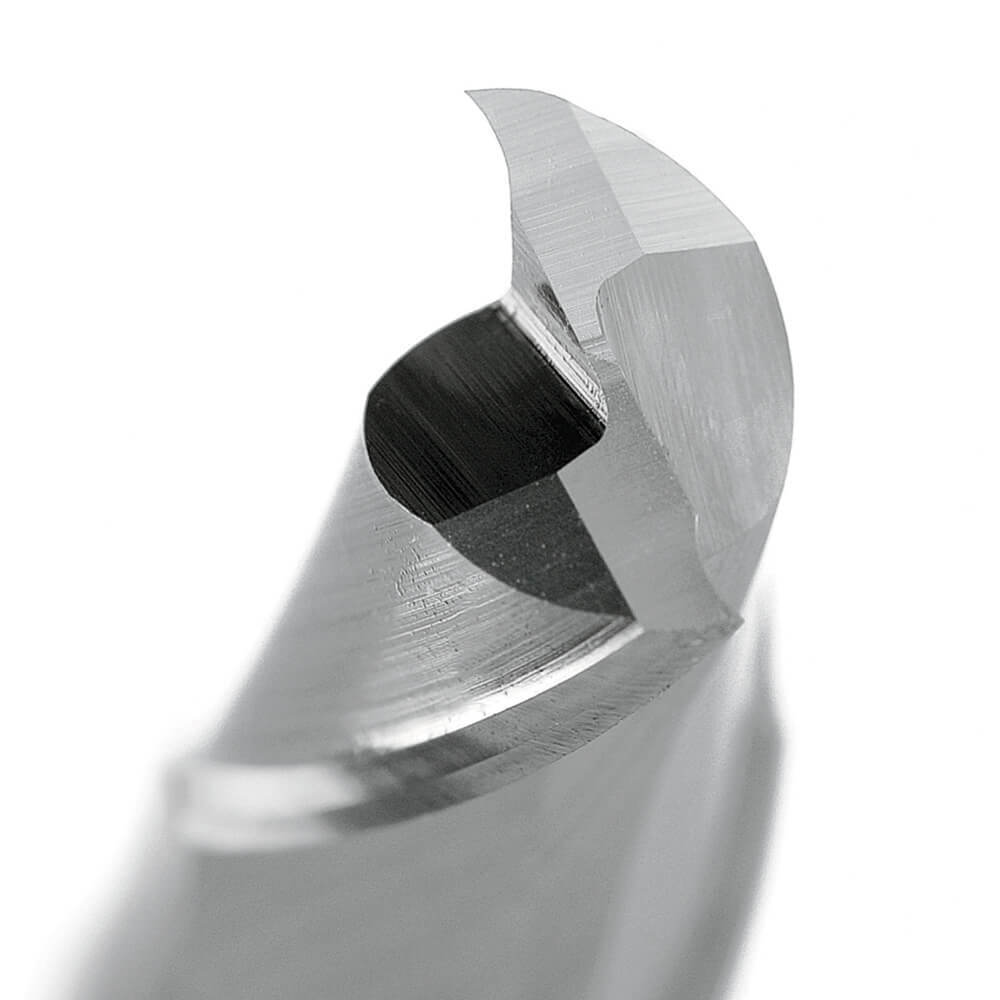

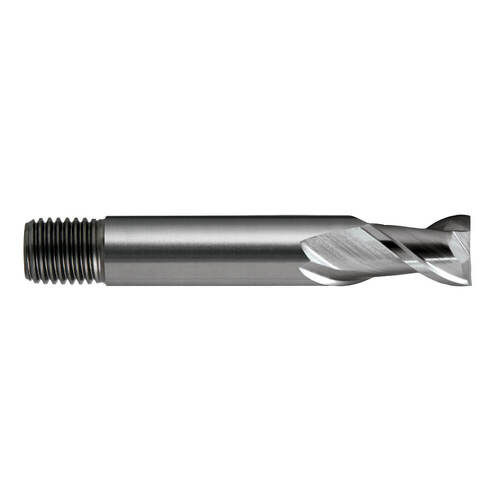

• 2 Flute Slot Drill R30 N
• Suitable for materials up to 850 N/mm2
• For soft steels & non-ferrous material

Specifications

• Designation: N
• Material: HSS Co
• Finish: Brt
• Shank Form: D
• Helix Angle: R30
• Point Tolerance: h9
• Shank Tolerance: -0.025
• Point Form: Square End
• Type: N (finishing)
• Standard: Sutton

Applications

• ISO: H
• VDI: 41
• Description: Cast Iron
• Condition: Hardened and Tempered
• Hardness: 55HRC
