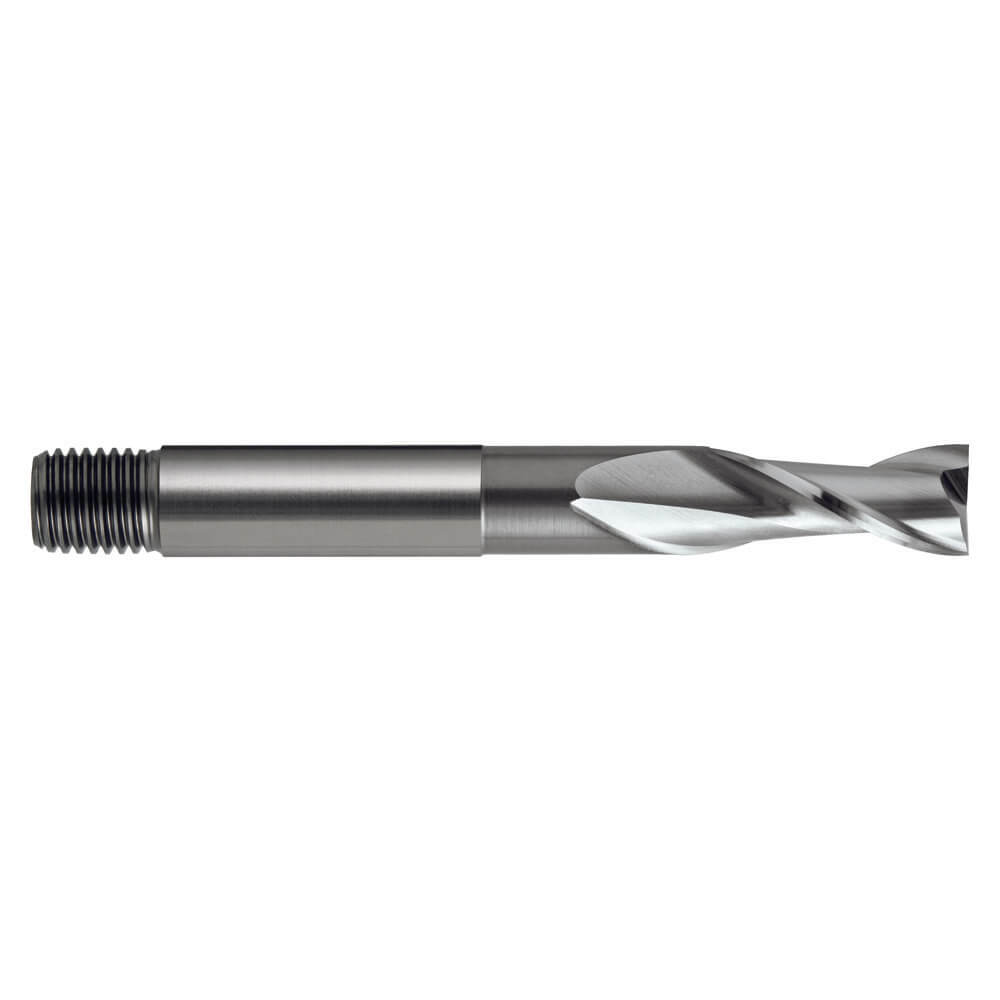

Sutton E1060635 1/4" x 1/4" Slot Drill 2 Flute - Cobalt Steel - Long - Sutton Tools

Description

Descriptions

For general milling of slots & cavities
For soft steels & non-ferrous material

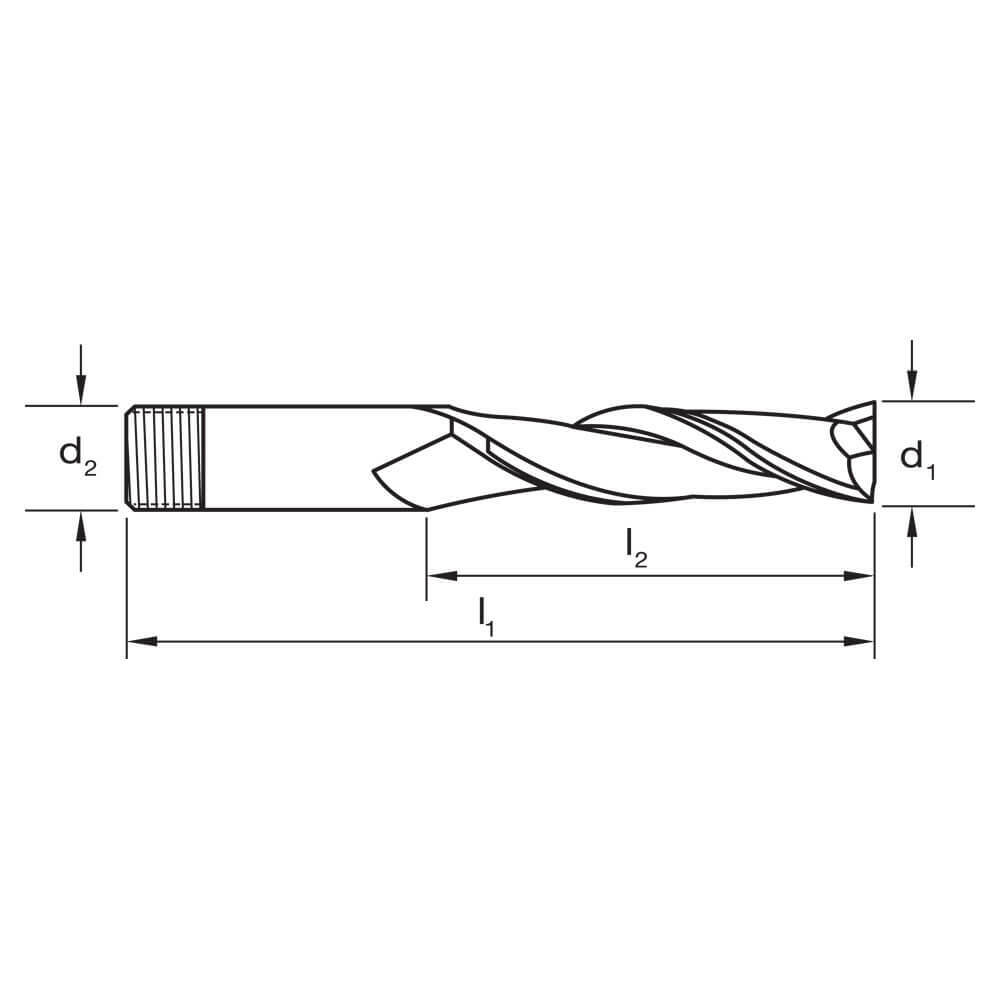

Dimensions

d1 (in): 1/4
d2 (in): 1/4
l1 (in): 3
l2 (in): 5/8
Quantity: 1

Features

2 Flute Slot Drill R30 N
Suitable for materials up to 850 N/mm2

Specifications

Designation: N
Material: High Speed Steel Cobalt
Finish: Bright
Shank Form: D
Helix Angle: R30
Point Tolerance: h9
Shank Tolerance: -0.025
Point Form: Square End
Type: N (finishing)
Standard: Sutton

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB

Specifications

AIMS SKU A0008634

Brand Sutton Tools

Model Number E1060635

Barcode Number 9311963003498

Material High Speed Steel Cobalt (HSS Co5%)

Finish Bright

Flutes 2 Flute

Cutting Tip (inch) 1/4

Profile Square End

Overall Length (inch) 3

Shank (inch) 1/4

Flute Length (inch) 5/8

Reach Long

Shank Form D

Shank Tolerance -0.025

Point Tolerance h9

Item Type N (finishing)

System Measurement Imperial

Helix Angel R30
