Description

Sutton M105 Impact Tap - M - Tap & Drill Set

  • Sutton Tools Impact Taps are specifically developed for use with the high-torque output of an impact driver. Suitable for steel, aluminium, brass, cast iron, plastic, and nylon.
  • Impact taps are ideal for routine maintenance, repair work, and for rethreading where high accuracy and tolerance thread is not critical.
  • Tapping with an impact driver is approximately 20 times faster than hand tapping – only three seconds to tap a hole.
  • Not suitable for precision, safety, or critical threads.
  • For tapping up to 1-1/2 x diameter.
  • *Drill not included for sizes M10 & M12

Features

  • 20X faster – 3 seconds to tap a hole
  • 1/4" hex shank suits impact drivers
  • Straight Flutes suitable for through-hole tapping up to 1-1/2 x diameter
  • Intermediate lead suitable for through holes or blind holes where the thread does not need to go right to the bottom of the hole
  • Made from tungsten chrome alloy
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N
  • Material: TCA
  • Finish: Brt
  • Max Cut Depth: 1.5xD
  • Shank Form: A
  • x: als
  • Type: Straight Flute
  • Standard: Sutton
  • Thread Form: M
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Intermediate

Specifications

  • AIMS SKU A0131202
  • Brand Sutton Tools
  • Model Number M1050300
  • Barcode Number 9311963600840
  • Shank Form A
  • Maximum Cut Depth 1.5xD
  • Nut Tolerance ISO 2 / 6H
  • Drill Size (mm) 2.5
  • Sutton Designation N
  • X als
  • Pitch Size (mm) 0.5
  • Diameter Size (mm) M3
  • Order Multiple 1
  • Type Impact Tap & Drill Set
  • Thread Form Metric ISO Coarse (M)
  • Material Tungsten Chrome Alloy (TCA)
  • Finish Bright (Brt)
  • Lead Intermediate
  • Item Type Straight Flute
  • Group Code M105
SKU: A0131202

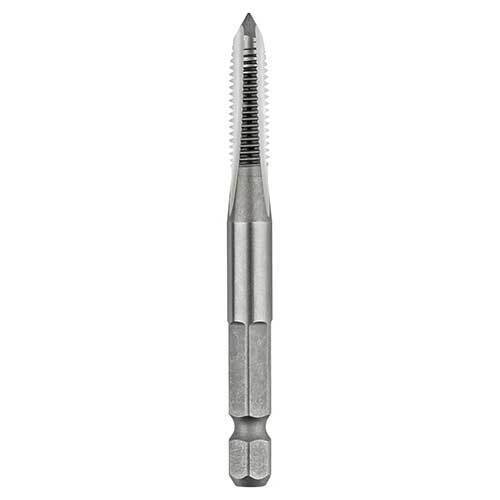

Sutton M1050300 Metric M3 x 0.5 Impact Tap and Drill Set Tungsten Chrome

Sutton M105 Impact Tap - M - Tap & Drill Set
