Description

Descriptions

  • Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
  • Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
  • Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Features

  • Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
  • Taper lead: suitable for starting a thread. Intermediate lead: used after a taper lead and are suitable for through holes
  • Bottoming lead: used after a taper lead and are suitable for blind holes
  • Square shank for use with a suitable tap wrench to drive the tap
  • Made from tungsten chrome alloy
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Tungsten Chrome Alloy (TCA)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Square Shank
  • X: als
  • Type: Straight Flute
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Lead: Set

Specifications

  • AIMS SKU A0011461
  • Brand Sutton Tools
  • Model Number M2433325
  • Barcode Number 9311963086408
  • Diameter (inch) 1
  • TPI 11
  • Group Code M243
  • Thread Form ISO G Parallel Series 55 (G-BSPF)
  • Material Tungsten Chrome Alloy (TCA)
  • Finish Bright
  • Lead Taper/Intermediate/Bottoming
  • Application N (for normal general purpose type materials)
  • Shank Form Square Shank
  • Max Cut Depth 1.5xD
  • Tap Type Straight Flute
SKU: A0011461

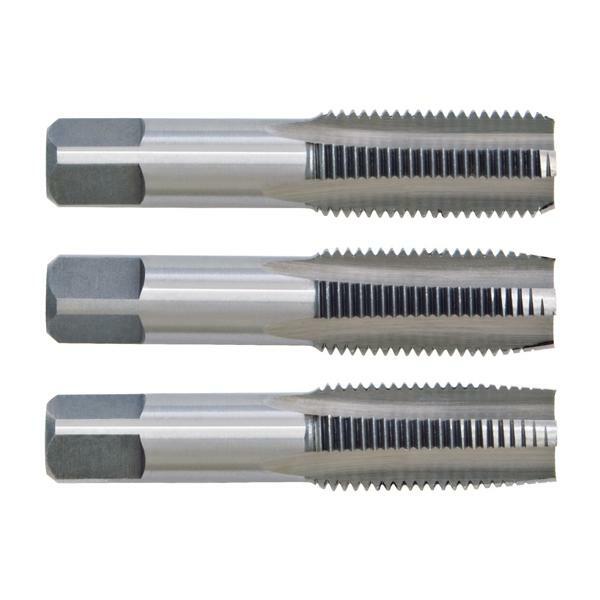

Sutton M2433325 BSPF 1-11 Hand Tap Set (Taper/Interm/Bottom) TCA

Sutton Hand Tap Sets - Pipe - G (BSPF)

$221.76
RRP $375.47
SAVE $153.71 (41%)
