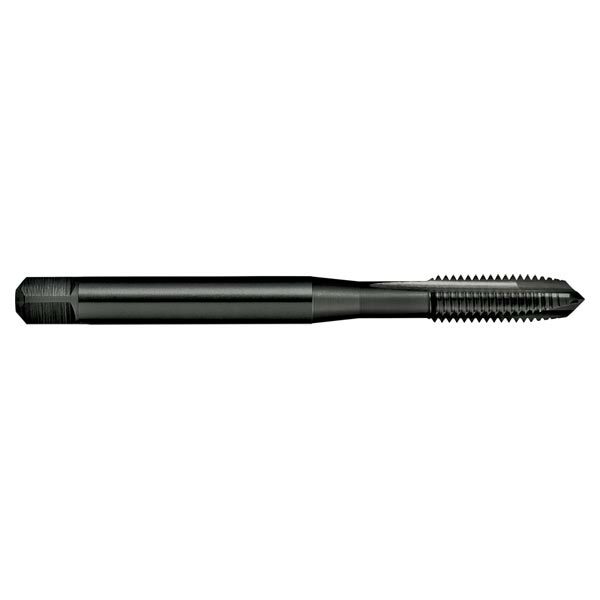

Sutton T102 Metric Spiral Point Tap - Premium HSS Blue - Sutton Tools

Description

Features

Suitable for materials up to 1000N/mm2
Through holes
Depths up to 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed

Specifications

AIMS SKU A0012835

Brand Sutton Tools

Model Number T1020350

Barcode Number 9311963385792

Shank (mm) 4

L1 (mm) 56

L2 (mm) 13

L3 (mm) 20

z 3

Diameter (metric) M3.5

Drill Size (mm) 2.9

L4 (mm) 6

Sq 3

Group Code T102
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Steam Oxide (Blue)
Lead Form B / 4.5 x P
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 2 / 6H
