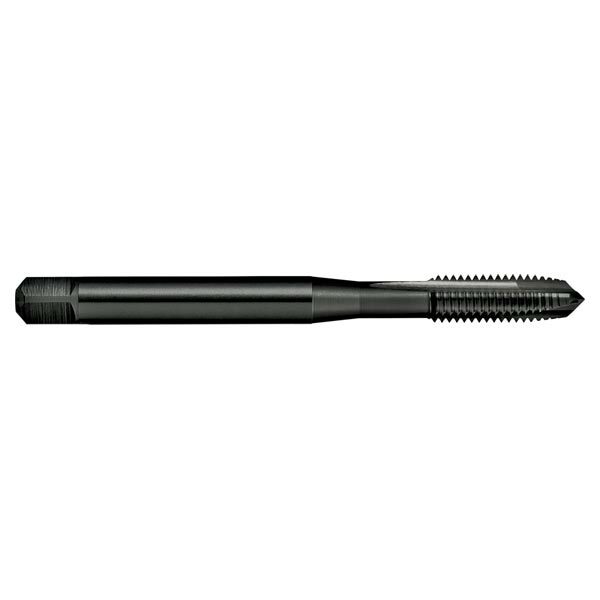

Sutton T110 Metric Spiral Point Tap - Premium HSS Blue - Sutton Tools

Description

Features

Use in stainless steels and high strength steels
Suitable for materials up to 850N/mm2
Through holes
Depths up to 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Specifications

AIMS SKU A0012889

Brand Sutton Tools

Model Number T1100350

Barcode Number 9311963521664

Shank (mm) 4

L1 (mm) 56

L2 (mm) 13

L3 (mm) 20

z 3

Diameter (metric) M3.5

Drill Size (mm) 2.9

L4 (mm) 6

Square Size (mm) 3

Group Code T110
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Steam Oxide (Blue)
Lead Form B / 4.5 x P
Application VA (for stainless and tough steels)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 2 / 6H
