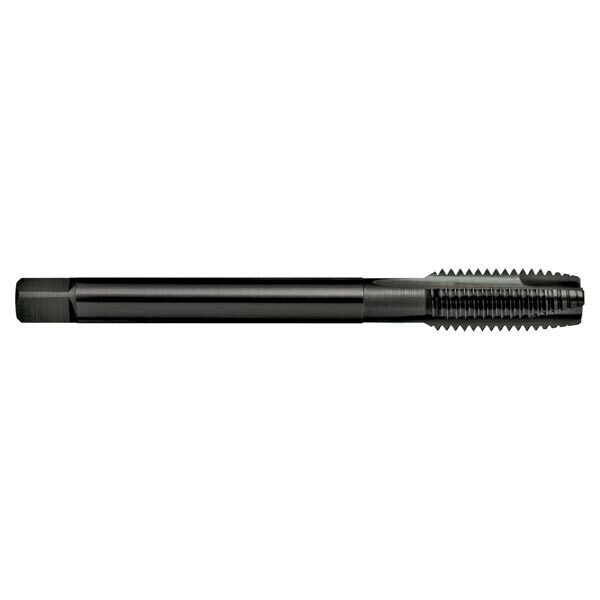

Sutton T111 Metric Spiral Point Tap - Premium HSS Blue - Sutton Tools

Description

Features

Use in stainless steels and high strength steels
Suitable for materials up to 850N/mm2
Through holes
Depths up to 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Specifications

AIMS SKU A0012904

Brand Sutton Tools

Model Number T1112400

Barcode Number 9311963443867

Shank (mm) 18

L1 (mm) 160

Pitch (mm) 3

L2 (mm) 38

z 4

Diameter (metric) M24

Drill Size (mm) 21

L4 (mm) 17

Square Size (mm) 14.5

Group Code T111
System of Measurement DIN376
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Steam Oxide (Blue)
Lead Form B / 4.5 x P
Application VA (for stainless and tough steels)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 2 / 6H
