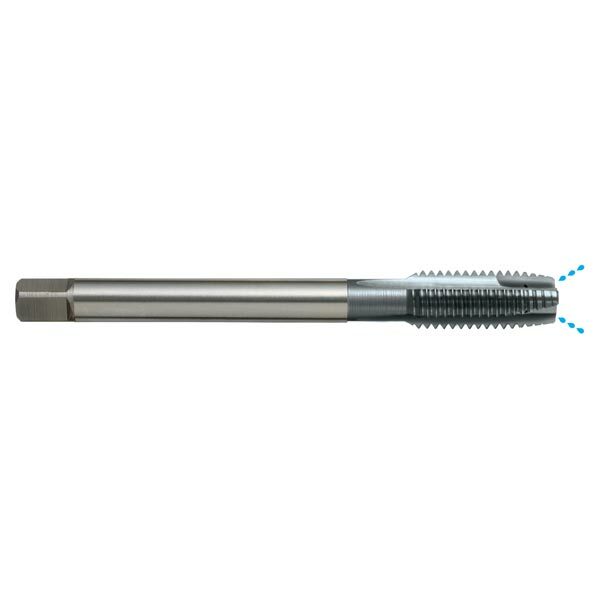

Sutton T119 Metric Spiral Point Tap - Vanadium HSS TiCN - Sutton Tools

Description

Features

PM-HSSE V3 offers superior performance
Use in stainless steels and high strength steels
Suitable for materials up to 850N/mm2
Through holes
Depths up to 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: ru
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed
High temperature alloys - Fe based: Age Hardened
High temperature alloys - Ni / Co based: Annealed

Specifications

AIMS SKU A0012956

Brand Sutton Tools

Model Number T1191200

Barcode Number 9311963397979

Shank (mm) 9

L1 (mm) 110

Pitch (mm) 1.75

L2 (mm) 28

z 3

Diameter (metric) M12

Drill Size (mm) 10.2

L4 (mm) 10

Square Size (mm) 7

Group Code T119
System of Measurement DIN376
Thread Form ISO Metric Coarse (M)
Material Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish Titanium Carbonitride (TiCN)
Lead Form B / 4.5 x P
Application VA (for stainless and tough steels)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance 6HX
