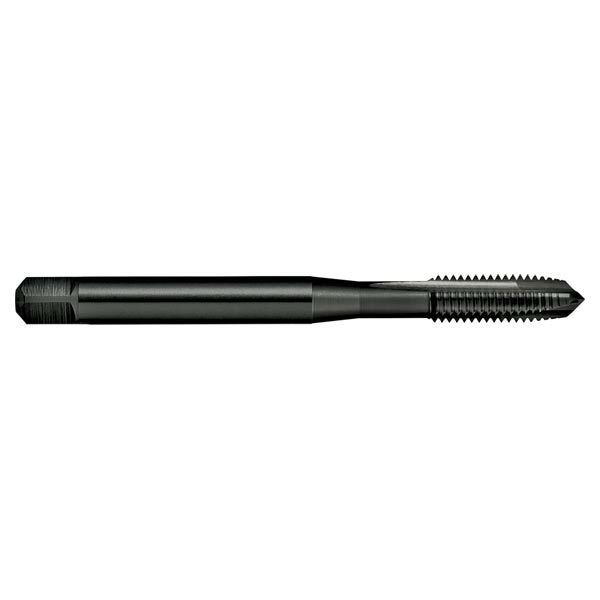

Sutton T124 Metric Spiral Point Tap - Premium HSS Blue - Sutton Tools

Description

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Through holes
Depths up to 3 x d1

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

AIMS SKU A0012988

Brand Sutton Tools

Model Number T1240500

Barcode Number 9311963398044

Shank (mm) 6

L1 (mm) 70

L2 (mm) 16

L3 (mm) 25

z 3

Diameter (metric) M5

Drill Size (mm) 4.2

L4 (mm) 8

Square Size (mm) 4.9

Group Code T124
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Steam Oxide (Blue)
Lead Form B / 4.5 x P
Application W (for soft materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 2 / 6H
