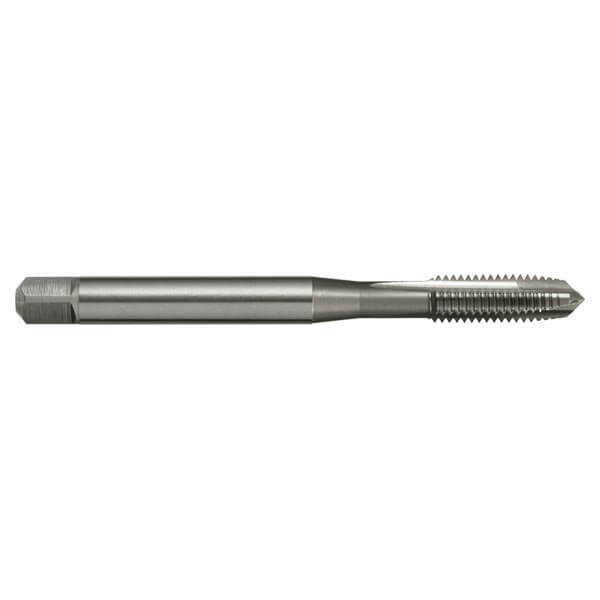

Sutton T126 Metric Spiral Point Tap - Premium HSS CrN - Sutton Tools

Description

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Through Holes
Depths up to 3 x d

Specifications

Designation: Cu (for copper materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Chromium Nitride (CrN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications

AIMS SKU A0012997

Brand Sutton Tools

Model Number T1260500

Barcode Number 9311963383941

Shank (mm) 6

L1 (mm) 70

L2 (mm) 16

L3 (mm) 25

z 3

Diameter (metric) M5

Drill Size (mm) 4.2

L4 (mm) 8

Square Size (mm) 4.9

Group Code T126
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Chromium Nitride (CrN)
Lead Form B / 4.5 x P
Application Cu (for copper materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 2 / 6H
