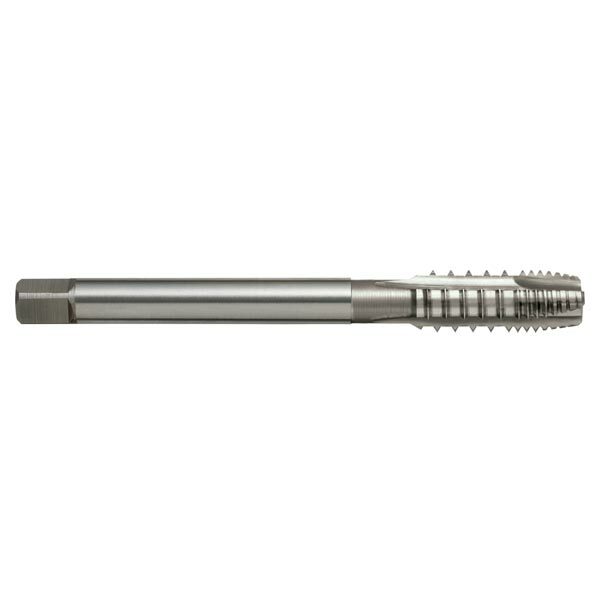

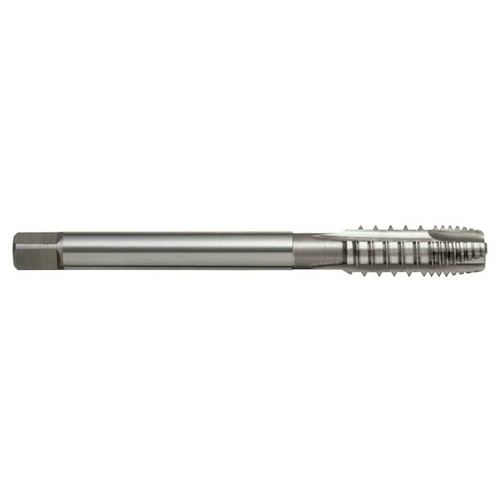

Sutton T129 Metric Spiral Point Tap - Premium HSS - Sutton Tools

Description

Features

Interrupted threads allow greater lubricant flow and reduce friction
Use in soft elastic materials
For long-chipping materials
Through holes up to 3 x d1

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications

AIMS SKU A0013012

Brand Sutton Tools

Model Number T1291600

Barcode Number 9311963398198

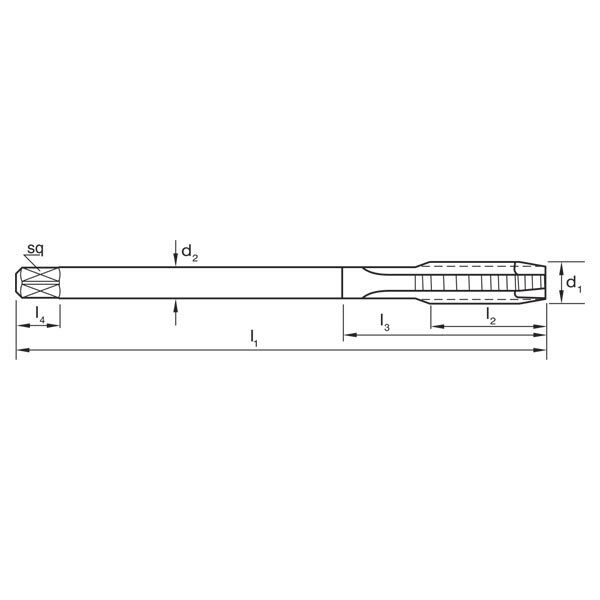

Shank (mm) 12

L1 (mm) 110

Pitch (mm) 2

L2 (mm) 32

z 3

Diameter (metric) M16

Drill Size (mm) 14

L4 (mm) 12

Square Size (mm) 9

Group Code T129
System of Measurement DIN376
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form B / 4.5 x P
Application W (for soft materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 2 / 6H
