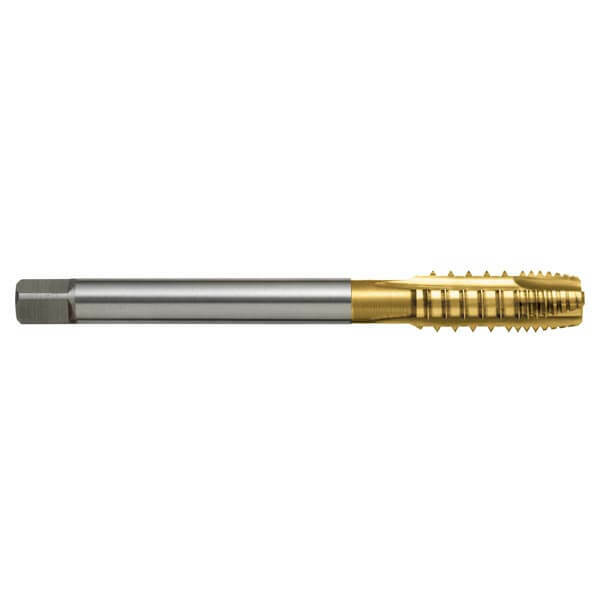

Sutton T131 Metric Spiral Point Tap - Premium HSS Tinite - Sutton Tools

Description

Features

Interrupted threads allow greater lubricant flow and reduce friction
Use in soft elastic materials
For long-chipping materials
Through holes up to 3 x d1

Specifications

Designation: W (for Soft Materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 3xD
Shank Form: Reduced Shak (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications

AIMS SKU A0013019

Brand Sutton Tools

Model Number T1311200

Barcode Number 9311963398266

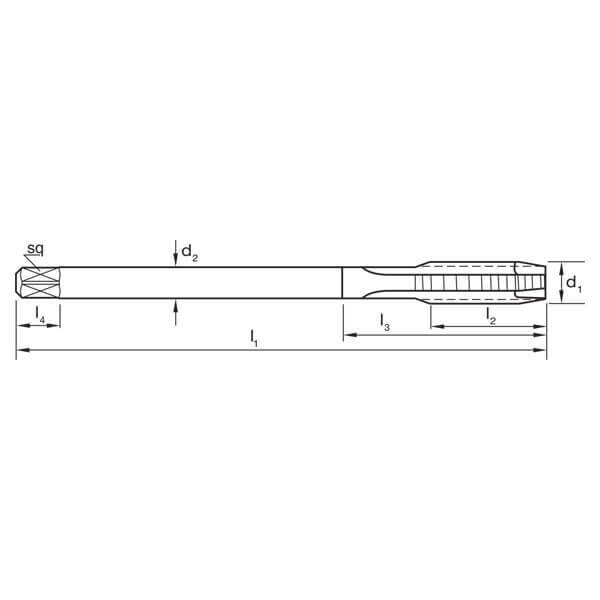

Shank (mm) 9

L1 (mm) 110

Pitch (mm) 1.75

L2 (mm) 28

z 3

Diameter (metric) M12

Drill Size (mm) 10.2

L4 (mm) 10

Square Size (mm) 7

Group Code T131
System of Measurement DIN376
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Nitride (TiN)
Lead Form B / 4.5 x P
Application W (for soft materials)
Shank Form Reduced Shak (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 2 / 6H
